IP CAMERA DAHUA THERMAL CAMERA ONVIF® POE 13MM - RESOLUTION 640x512 - ARTIFICIAL INTELLIGENCE AND FIRE ALARM - AUDIO - ALARM - TPC-BF5601-B13-S2 - S2 VERSION

Made by Setik

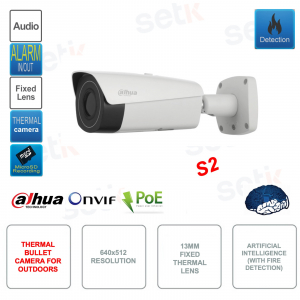

Thermal Bullet IP Camera - S2 Version - Dahua - TPC-BF5601-B13-S2
Resolution 640x512 - Uncooled VOx Microbolometer sensor - 13mm fixed lens - NETD 40mK - H.265 compression and dual stream
Motion Detection - ROI - Artificial intelligence with fire detection and perimeter protection - MicroSD 256GB slot (not included) - CVBS video output on BNC port - RS485 - RJ45 Ethernet - Audio 1in/1out / Alarm 2in/2out - Detection of People and Mobile Vehicles - IP67 protection - 24 months manufacturer's warranty.
THERMAL DETECTION


Product details

Telecamera Videosorveglianza IP Bullet Termica 25mm
  • ONVIF® PoE Thermal Bullet IP Camera - TPC-BF5601-B13-S2
  • S2 version
  • Resolution 640x512
  • Uncooled VOx Microbolometer sensor
  • 13mm fixed optics
  • Visual spectrum from 8 to 14?m
  • Thermal Sensitivity: 40mK
  • Compression up to H.265 and dual stream video
  • Detection of People (from 49 to 382) and Mobile Vehicles (from 109 to 850)
  • Advanced Intelligent Features (Fire Detection & Alarm, Cold/Hot Spot Tracking, Human/Vehicle Classification + Perimeter Protection)
  • ROI, Motion Detection
  • 1 CVBS/BNC Video Out
  • Audio: 1 in and 1 out
  • Alarm: 2 inputs and 2 outputs
  • RS485 port
  • MicroSD slot (Max 256GB - not included)
  • 12V DC/PoE/ePoE power supply
  • Power supply NOT included
  • Metal body
  • Product size: 291mm×103mm×97mm
  • Item net weight: 1.5Kg
  • Operating temperature: -40°C ~ +70°C
  • 24 month manufacturer's warranty

Data sheet

TPC-BF5601-B13-S2

Technical Specification

thermal chamber

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

640(H)x512(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

40mK

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/ Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc)

Thermal Lens

Net Weight

1.5Kg (3.31lbs)

Gross Weight

1.9Kg (4.19lbs)

Further details

Thermal camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This camera is a THERMAL CAMERA .


Sensitivity 40mK

Visual spectrum from 8 to 14µm

Thermal Sensor:
Uncooled VOx Microbolometer

Ottica fissa 3.6mm

This camera has a 13mm fixed lens!


People Detection: From 49 to 382
Detection of Mobile Vehicles: From 109 to 850m



This camera has advanced intelligent features:
- Fire detection and alarm
- Perimeter protection

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.

This camera features 1 Video Output (CVBS/BNC)

Full HDIt is extremely useful to have Inputs/Outputs in a CCTV system in order to be able to command relays or activate a recording following an event
This camera has 2 inputs and 2 outputs
Ingresso Audio This camera features 1 Input + 1 Audio Output
Dual encoding RS 485 for PTZ commands (remotely controllable cameras)
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

MicroSD recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

This camera was made of metal

Dual encoding This product is covered by a 24 month guarantee.
