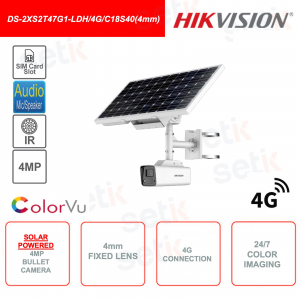

Solar powered bullet camera - For outdoors - 4MP - 4mm lens - 4G - PIR

Solar powered bullet camera - For outdoors - 4MP - 4mm lens - 4G - PIR
-35%

Hikvision DS-2XS2T47G1-LDH/4G/C18S40(4mm) 4MP bullet camera with Solar Panel - ColorVu series - Outdoor - 4MP 2560x1440p, 4mm fixed lens, 1/3" CMOS sensor. Smart IR illuminator up to 30M with white light - Smart Codec H.265+ - Dual Stream - Motion Detection, BLC, HLC, ROI - Supports 4G (Via Micro SIM) - PIR detector with range up to 15m - Microphone - Speaker - 40 W Photovoltaic Solar Panel, Rechargeable lithium battery 2x8.4Ah*, IP67 protection for outdoor use - 256GB MicroSD Card Slot (not included) - ADC12.

*Ternary Lithium battery must be ordered separately.


 SIM NON INCLUSA!




Reference: DS-2XS2T47G1-LDH/4G/C18S40(4mm)

Brand: Hikvision

FIND INSTALLER

€1,998.36

€3,074.40 -35%
taxes included
Tax included
 Available in 5 days



DS-2XS2T47G1-LDH/4G/C18S40(4mm) | COLORVU BULLET HIKVISION 4MP SOLAR PANEL CAMERA - 4MM FIXED OPTIC - 4G - IP67 PROTECTION


 SIM NON INCLUSA!


Made by Hikvision
Hikvision outdoor camera - DS-2XS2T47G1-LDH/4G/C18S40(4mm)
Resolution: 4MP 2560x1440p - 4mm fixed lens - 1/3" CMOS sensor - ColorVu Series: 24/7 color vision - Incorporates 40W Photovoltaic Solar Panel - 4G Micro Sim Slot
30M Smart IR Illuminator with EXIR Technology - Day/Night (ICR) - DWDR - AGC - BLC - WDR 120dB - IP67 Protection - Motion Detection - On-board microphone and speaker -
Powered by 2x8.4Ah* rechargeable battery - Bracket and solar panel included! - 24 month warranty
Battery must be ordered separately*
DS-2XS6A25G0-I-CH20S40
Photovoltaic Solar Panel:
Incorporates 40 W Photovoltaic Solar Panel

ColorVu Technology:

Hikvision ColorVu technology provides 24/7 vibrant, color-filled images thanks to advanced F1.0 lenses and high-performance sensors. The F1.0 super aperture collects more light to produce brighter images. Advanced sensor technology can largely improve the utilization of available light.

VIVID DETAILS EVEN AT NIGHT
ColorVu cameras capture vivid color details, thanks to sensor and lens technology.

HIGH BRIGHTNESS
The lens of these cameras is an F1.0 . Such a large aperture allows it to collect a large amount of light and capture color images even in the dark.

SENSOR WITH SURPRISING QUALITY
The sensor installed in ColorVu products has a sensitivity of 0.0005 Lux and has allowed a notable improvement in the quality of the shots.
Thanks to the BBAR coating and ED glass, the images provided are without backlight effects and with reduced bright glare.

SML TECHNOLOGY - WHITE LED ON BOARD
All the cameras in this line have an integrated white LED, with many adjustable functions, all adjustable during installation; from courtesy light, to smart activation in conditions of total absence of light.

SIMPLIFIED COMMISSIONING
Thanks to the 4 pre-configured profiles and the possibility of creating two customized ones, ColorVu products allow easy installation for professionals in the sector.

Micro SIM slot:
This camera has a 4G Micro SIM slot, so you can take advantage of the standards ( LTE-TDD/LTE-FDD/WCDMA/GSM )
Resolution:
This camera features a resolution of 4MP 4 Megapixels 2560x1440p
Integrated 1/3" 4MP progressive scan CMOS image sensor.
Optics:
This camera has a 4mm fixed lens

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 30M

This camera also features SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted depending on the object framed.

Smart IR technology

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
it is one of the 3 possible steps in managing images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from inside to outside, etc.) light compensation is one of the most as complex as possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

Audio:

It integrates a microphone and a speaker, equipped on board.

D-WDR

D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated into the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

PIR:

Integrates PIR, with detection range up to 15m.

IP67 protection - outdoor:
This camera is IP67 protected (dust/immersion). Suitable for outdoor environments.

Diet:

Via rechargeable battery* , pack of 2 8.4Ah batteries

*Battery must be ordered separately

Data sheet

DS-2XS2T47G1-LDH/4G/C18S40(4mm)

Room

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light

Max.Resolution

2560×1440

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 360°, tilt: -60° to 0°

Lens

Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

PIR

PIR Angle

Horizontal: 100°, vertical: 80°

PIR Range

Up to 15 m

Interface

Ethernet Interface

10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in eMMC storage, up to 64 GB, Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50 GB is available for recording.

Built-in Microphone

Yes

Built-in Speaker

Yes

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Linkages

Upload to FTP/NAS/memory card, notify surveillance center, audible warning, trigger recording, trigger capture

General

Power

Power Consumption and Current:

Typical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply:

12 VDC ± 25% *For debugging only 40 W (deviation: ± 2 W) Solar panels Power Interface:

Power supply interface: Ø 5.5 mm coaxial power plug Extended solar panel: four-core aviation connector

Material

ADC12

Storage Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish , Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, flash log

Startup and Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

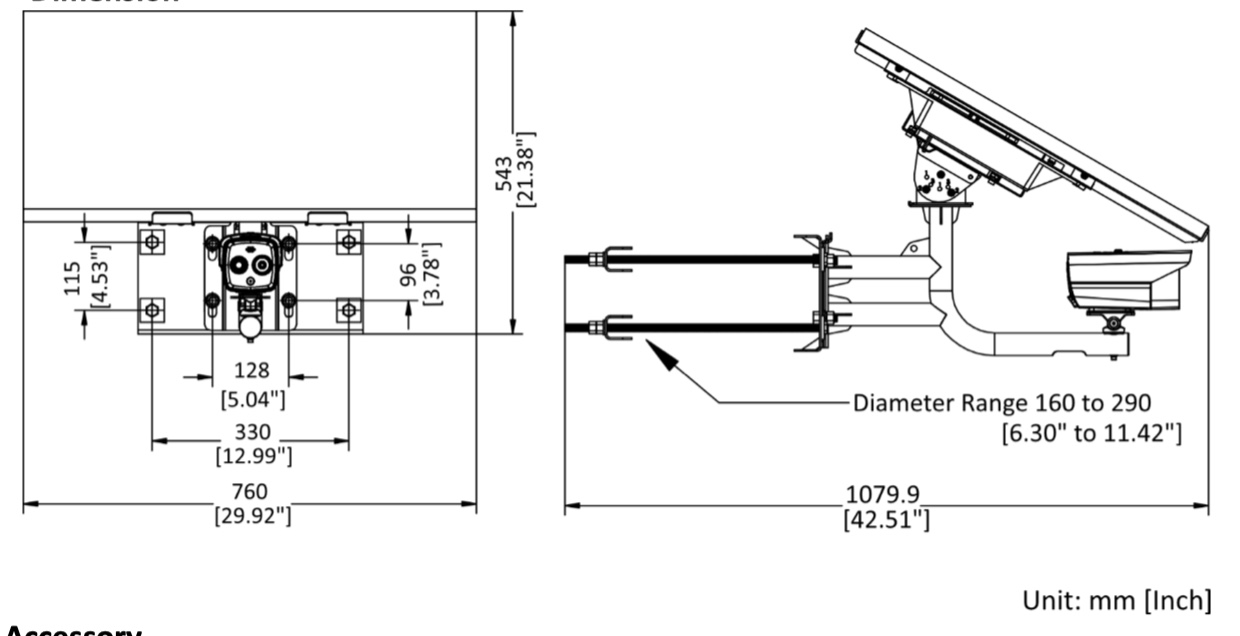

Dimension

679 mm × 443 mm × 760 mm (26.7" × 17.4" × 29.9")

Package Dimension

910 mm × 350 mm × 450 mm (35.8" × 13.8" × 17.7")

Weight

Approx. 11,570 kg (25.5 lb.)

With Package Weight

Approx. 16.21 kg (35.7 lb.)

Battery

Battery Type

Ternary Lithium

Capacity

8.4 Ah × 2 packs

Max. Charging Voltage

12.6V

Operating Temperature

Charging: 0 °C to 45 °C (32 °F to 113 °F) Discharging: -20 °C to 55 °C (-4 °F to 131 °F)

Battery Voltage

9V to 12.6V

Cycle Lifetime

Performance mode: 3.6 days, Proactive mode: 6 days, Standby mode: 30 days

Battery Life

More than 500 cycles

Battery Weight

Approx. 1400 g (3.1 lb.)

Approval

RF

FCC ID: FCC Part 15.247 (BT or 2.4G), IC ID (RSS-247(BT or 2.4G)), CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3 .1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *FCC certification is only for the device sold in the North American region and the Latin American region . IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, *FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.

Safety

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1, *CE and LOA certifications are only for the device sold in the European region .

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006, *CE certification is only for the device sold in the European region.

Protection

IP67: IEC 60529-2013

Further details

DS-2XS6A25G0-I/CH20S40

Downloads

Download the English brochure
