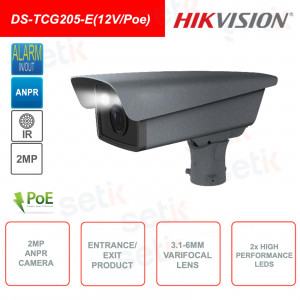

Telecamera ANPR PoE IP 2MP - 2MP - 3.1-6mm varifocoale - IP67 e IK10

Telecamera ANPR PoE IP 2MP - 2MP - 3.1-6mm varifocoale - IP67 e IK10
IN PROMOTION -35%

Telecamera Hikvision DS-TCG205-E(12V/Poe) IP PoE - ANPR per lettura targhe - Controlla barriere per entrata e uscita - Risoluzione 2MP 1080p - Ottica varifocale 3.1-6mm - Sensore CMOS 1/3" da 2MP - 2 LEDs IR - Compressione H.265 - ANPR - Cattura veicoli e riconoscimento targa - LPR (License Plate Recognition) Multi-Frame - 2x relay per barriera - 3x Triggered Input - Audio 1out - Slot TF Card fino a 128GB - Protezione da esterno IP67 / antivandalica IK10 - Interfaccia: RS-485 - RJ-45 100M - Alimentazione: 12 VDC, PoE (802.3af) / AC100V~240V.




LISTINO SOLUTION: RICHIEDI QUOTAZIONE DEDICATA




Reference: DS-TCG205-E(12V/Poe)

Brand: Hikvision

EAN:

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DS-TCG205-E(12V/Poe) | HIKVISION | TELECAMERA IP POE ANPR HIKVISION 2MP - SENSORE CMOS 1/3" - OTTICA VARIFOCALE 3.1-6MM - AUDIO - 2 IR LEDS

Made by Hikvision

Telecamera Bullet IP PoE Hikvision - DS-TCG205-E(12V/Poe) - Controlla barriere per entrata e uscita - 2MP 1920x1200 a scansione progressiva - Ottica varifocale 3.1-6mm - Sensore CMOS 1/3" - 2LEDs (1x Infrarosso + 1x luce bianca) - ANPR per Cattura veicoli e lettura targa - TF Card Slot 128GB - Interfaccia RS485 - RJ45 LAN Ethernet 100M - Alimentazione: 12 VDC, PoE (802.3af) or AC100V~240V - Protezione IP67 (da esterno) e IK10 (da atti vandalici) - 1 uscita audio - 3 input triggered inputs - 2 relé per controllo barriera - Alimentatore NON incluso - Garanzia 24 mesi

POE (Power Over Ethernet):
Il Vantaggio di una telecamera PoE è evidente, permette di essere alimentata con lo stesso cavo con la quale si comunica senza portare ulteriori cavi d'alimentazione e senza dover installare un sistema di alimentazione separato, una telecamera PoE garantisce tensioni costanti ed installazione semplice
Risoluzione:
Questa telecamera presenta una risoluzione di 2 Megapixel
Sensore d'immagine 1/3"” 2Megapixel progressive scan CMOS.

OTTICA

Questa telecamera presenta ottica motorizzata 3.1-6mm.

TELECAMERA ANPR

Le telecamere ANPR di Dahua offrono una gamma completa di funzioni per il riconoscimento targa.

Integrano un algoritmo che rileva e cattura numeri di targa e ne archivia i dettagli in un database



  • Registrazione chiara dei numeri di targa

  • Registrazione a database

  • Trigger events inc. barrier control

  • Supporto snapshot su SD Card

  • PoE

  • Installazione e utilizzo semplice

In che modo e dove può essere utilizzata?

Una telecamera ANPR Dahua è adatta a varie tipologie di aree, tra cui ingressi ai parcheggi, aree controllate dalla barriera o monitoraggio della corsia.

La telecamera può acquisire targhe fino ad una velocità di 80 miglia all'ora (80km/h)


Esempio funzione anpr
Relay Output:
Questo prodotto contiene 2 relé per controllo barriere
Audio:
Questo prodotto contiene 1 uscita audio
Storage:
Questo prodotto contiene 1 slot per schede di memoria TF con capienza fino a 128GB.
Alimentazione:
Per il funzionamento di questa telecamera è necessario un alimentatore 12 VDC, PoE (802.3af) or AC100V~240V

Scheda tecnica

Model Name DS-TCG205-E(12V/Poe)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.022Lux@(F1.2, AGC ON) B/W: 0.011Lux@(F1.2, AGC ON)

Shutter Speed

1/30 s to 1/100,000 s

Lens

3.1 mm to 6 mm

IR Cut Filter

Support

Compression Standard

Video Compression

H.264/H.265/MJPEG

Vieo Bit Rate

32 Kbps to 16 Mbps


Image Format

JPEG

Max. Resolution

1920 × 1200

Frame Rate

25 fps(1920 × 1200)

Image Settings

Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal and Expert modes are selectable.

White balance: White Balance 1 and White Balance 2 are selectable.

Snapshot

Picture Format

JPEG with configurable quality

Analytic

Support ANPR

LED Control

Support automatic light control/time control of LEDs

Network

Storage

TF

Protocols

TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures

Security

User Authentication, Heartbeat, NTP

API

ISAPI, SDK

Interfaces

Communication Interface

1 RJ45 10M/100M Ethernet port

Serial Port

1 RS-485 Port

Built-in LED

2 built-in LEDs (integrated white light and IR)

Audio Output

1-ch audio output

Triggered Input

3-ch triggered input, including 1-ch I/O triggered input and 2-ch alarm input

Relay Output

2-ch relay output, support open/close of barrier gates

Memory Card Slot

1 TF card slot, up to 128GB

General

Working Temperature

-25°C to 70°C (-13°F to 158°F)

Working Humidity

90% or less (non-condensing)

Power Supply

12 VDC, PoE (802.3af) or AC100V~240V

Power Consumption

22W Max

Protection Level

IP67, IK10

Vehicle Brand

Hyundai, Toyota, Kia, Honda, Volkswagen, Benz, Nissan, Ford, ISUZU, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, Hino, Peugeot, Ssang Yong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, UD Trucks, Subaru, IVECO, MINI, Jeep, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, SAIC Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB,



FAW, Yutong, Mercury, Joylong, Geely, Cadillac, Jinbei, Ankai, Haima, Foton, King Long, Dongfeng, Emgrand

Country/Region supported by ANPR

Mid-East:

United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

Africa:

Nigeria, Kenya, Cote d'Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

Asia-Pacific:

Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh

America:

United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala

Europe:

Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg

Russian-Speaking Regions:

Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia ,Albania, Kosovo

ANPR Recognition Accuracy

(Under installation conditions)

recommended and lighting

Capture rate > 98%

Vehicle moving direction recognition accuracy > 96%

Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)

European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 98%

Ulteriori dettagli



Download

Scaricate il Depliant Inglese
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
