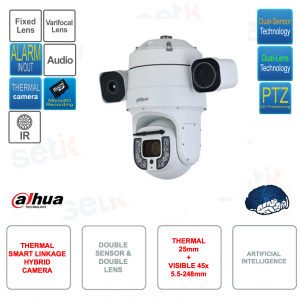

TPC-SD8441B-B25Z45 - Dahua professional Hybrid Smart Linkage IP Thermal Camera - Dual-Lens, Dual-Sensor - 25mm thermal optics and visible varifocal 5.5-248mm (45x optical zoom) , dual sensor (1x Thermal Vanadium oxide uncooled 400x300 + 1x CMOS 1/1.8" 4MP 2560x1440) - Codec H.265, ROI, Defog, BLC, WDR, HLC, 2D/3DNR, Color Palettes - IR Illuminator 250m - 3D PTZ Positioning - Artificial Intelligence with heat detection, Cold/Hot Spot Tracing , Perimeter protection, vessel detection, Target Tracking - Audio - Alarm - RS-485 - RJ45 LAN 100M - IP66 protection - TVS6000 from lightning - 512GB MicroSD slot (not included).
FIND INSTALLER
€8,338.52
€19,391.90 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Data Sheet Further Details Download
DAHUA HYBRID THERMAL IP CAMERA - DUAL LENS / DUAL SENSOR - 25MM THERMAL / 45x 5.5-248MM VISIBLE - AUDIO - ALARM - ARTIFICIAL INTELLIGENCE - DAHUA - TPC-SD8441B-B25Z45
Dual-Lens (thermal 25mm - visible 5.5-248mm ) - Visible optical resolution 4MP 2560x1440 with 1/ 1.8 " CMOS sensor - Vanadium oxide uncooled focal plane detector thermal sensor resolution 400x300 - Double sensor -
Codec H.265 - IR Illuminator 250m - ROI, Defog, BLC, WDR, HLC, 2D/3DNR - PTZ 3D - Artificial Intelligence , Heat Detection, Cold/Hot Spot Tracing, Perimeter Protection, Vessel Detection, Target Tracking, Human Detection Distinction and vehicles - CVBS analog output on BNC - 7 inputs + 2 Alarm outputs, 1x inputs + 1x Audio output - Two-way audio - RS-485 - RJ45 100M - MicroSD slot up to 512GB (sold separately) - IP66 protection from outdoor and TVS6000 from Lightning - Ideal for outdoor use.
Product details
- Speed dome professional thermal IP camera - Dahua - TPC-SD8441B-B25Z45
- Dual-Lens technology, dual optics (Thermal 25mm / Visible 5.5-248mm varifocal)
- Dual-Sensor Technology , dual sensor (Uncooled VOx - thermal / 1/1.8" 4MP CMOS - visible)
- Resolution 400x300 (thermal optics) / Up to 4MP 2560x1440 (visible optics)
- Visual spectrum from 8 to 14 µm
- Thermal Sensitivity <35mK
- ROI, WDR, BLC, HLC, Defog, 2D/3DNR
- IR illuminator with range up to 250m
- 3D PTZ positioning
- Artificial Intelligence: Heat Detection, Cold/Hot Spot Tracing, Perimeter Protection, Vessel Tracking, Target Tracking, Human and Vehicle Detection Distinction
- Alarm: 7 inputs and 2 outputs
- Audio: 1 audio input and 1 audio output
- 1 RS-485 port
- 1 RJ45 10/100M Base-T port
- 1 microSD-Card slot (Max 512 - not included)
- Power supply NOT included
- Dimensions: 484.8mm × 267mm × 476.5mm
- IP66 protection ideal for outdoor use
- TVS 6000 lightning protection
- Weight: 15.9Kg
- Operating temperature: –30 °C to +60 °C
- Power supply: 36VDC/5A ± 25%
- Support Hi-PoE power supply
- 24 months warranty
Data sheet
| TPC-SD8441B-B25Z45 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 400(H)×300(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 17 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range | 8 μm–14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port | 1 × RJ-45 (10/100Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Inputs | 7 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio inputs | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 36VDC/5A ±25% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption | Basic: 30W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40°C to +65°C (–40°F to +149°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP66 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reliability | Surge protection: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 484.8 mm × 267 mm × 476.5 mm (19.09" × 10.51" × 18.76") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 708mm × 380mm × 580mm (27.87" × 14.96" × 22.83") (L × W × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 15.9 kg (35.05 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 21.5kg (47.40lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| human distance | Vehicle Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 175m (574.15ft) | 525m (1,722.44ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | Thermal camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean? |
| This camera is a THERMAL CAMERA
|
 | Dual Lens Technology! |
|
| Dual-Sensor Technology!
|
 | Pan/Tilt Range Thermal: Manual Control Speed Speed presets Thermal: Presets Tours Patterns Scan Power-off Memory Privacy Masking Idle motion |
 | ARTFICIAL INTELLIGENCE |
 | Infrared illuminator with range up to 250m! |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 7 inputs and 2 alarm outputs |
 | This camera has 1 inputs + 1 Audio Output Two-way audio. |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
|
 | Possibility to insert Micro SD up to a maximum of 512GB - not included |
 | Protection level IP66 ( Dust / Immersion ) Also includes TVS 6000V lightning protection. |
 | This product is covered by a 24-month manufacturer's guarantee. |
