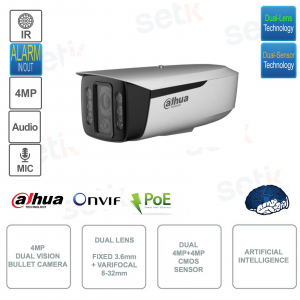

IP Bullet Camera POE ONVIF - Dual lens and dual sensor 4MP - 3.6mm fixed and 8-32mm varifocal - Artificial intelligence
IPC-MFW7442K1-Z4-T40 - Dahua - Outdoor IP POE ONVIF Bullet camera - Dual CMOS Sensor (4MP 1/1.7" + 4MP 1/2.7") - 3.6mm fixed lens + 8-32mm varifocal lens - H.265+ - Triple Stream - BLC - HLC - WDR120dB - ROI - Defog - 3DNR - Intelligence artificial and Video Analysis - Audio - Alarm - Microphone - High quality loudspeaker - IP67 Outdoor protection - 256GB MicroSD slot - RS485 - RJ45 LAN 1000M - In plastic and metal.
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR IP POE ONVIF CAMERA - 4 MEGAPIXELS - DOUBLE CMOS SENSOR - DOUBLE LENS - FIXED 3.6MM - VARIFOCAL 8-32MM - ARTIFICIAL INTELLIGENCE - -AUDIO - ALARM - IPC-MFW7442K1-Z4-T40
ONVIF® PoE Outdoor IP Camera - AI Series - Dahua - IPC-MFW7442K1-Z4-T40
4 Megapixel Resolution - Dual CMOS Sensor (4MP 1/1.7" + 4MP 1/2.7) - Starlight+ Technology - 3 Streams - Up to H.265+
IR illumination up to 100m - Day/Night(ICR) - MicroSD slot (Max. 256GB - NOT INCLUDED! ) - Audio 2in/1out / Alarm 3in/2out - Built-in microphone - High quality loudspeaker on board - WDR 120dB - BLC - HLC - Defog - ROI - 3DNR - IP67 protection for outdoor use - Made of plastic and metal.
Artificial Intelligence: Perimeter Protection, Face Detection / Recognition, People Counting, Metadata, Smart Search
Video Analysis: Abandoned / Lost Objects - One of the best bullet cameras
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.
Product details
- Dahua AI Series ONVIF® PoE Outdoor IP Camera - IPC-MFW7442K1-Z4-T40
- 4 Megapixel 4MP 2688x1520 resolution
- Dual CMOS sensor: 4MP 1.1.7" + 4MP 1/2.7"
- Double lens: Fixed 3.6mm + Varifocal 8-32mm
- Starlight+ technology: Color night vision!
- Video Compression up to H.265+
- Triple Stream Video
- Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Smart Search
- General Analysis Video: Abandoned/Lost Objects
- Functions: Day/Night(ICR), WDR 120dB , BLC, 3D DNR, Motion Detection, ROI, EIS, Defog
- Smart IR 4 LED illuminator up to 100m maximum
- 2 Audio In / 1 Audio Out (RCA Ports)
- 3 inputs / 2 alarm outputs
- RS485
- RJ45 10/100/1000Mbps Ethernet LAN
- IP67 Protection (Dust / Immersion)
- PoE protocol
- MicroSD slot (Max 256GB - Not Included)
- 12V DC power adapter (not included)
- Support PoE power supply
- Operating temperature: –30 °C to +60 °C
- Item net weight: 1.905g
- Dimensions: 283.1mm × 123.2mm × 109.5mm
- Material: Plastic and Metal
- Ideal for outdoor use
- 24 months warranty
Data sheet
IPC-MFW7442K1-Z4-T40 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
Channel 1: 1/1.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution |
2688(H)×1520(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3s–1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination |
Channel 1: 0.0015 lux @F1.2(Color,30IRE) 0.0003 lux@F1.2(B/W,30IRE) 0 lux (Illuminator on) Channel 2: 0.002 lux @F1.0(Color,30IRE) 0 lux (Illuminator on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 56dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
Channel 1: 100m (328.08ft) (IR)60m (196.85ft) (warm light) Channel 2: 20m (65.62ft) (warm light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
Channel 1: 4 (Mixed (IR + warm) light) Channel 2: 2 (warm LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LensType |
Channel 1: Motorized varifocal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens mount |
Channel 1: Module |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
Channel 1: 8mm–32mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings |
Channel 1: F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
Channel 1: Horizontal: 43° (W)–15° (T) Vertical: 23° (W)–8° (T) Diagonal: 50° (W)–17° (T) Channel 2: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
Channel 1: W: 1m (3.28ft); T: 1.5m (4.92ft) Channel 2: 2m (6.56ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Events |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS |
abandoned object; missing object |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition |
face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting. Dahua Face Recognition Technology extracts attributes from the captured face, compares it against the attributes in the face library, and then identifies the person. Management of 5 group face libraries,Max supports face contrast in face library with 25,000 faces |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Tripwire people counting, people counting in area and queue management, generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata |
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling, etc. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: top/bottom type and color, bag, hat, gender, and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codecs |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Channel 1: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
Main Stream: 2688×1520 (default); 2560×1440; 2304×1296; 1920×1080; 1280×960; 1280×720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 32kbps–8192kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Channel 1: Auto(ICR)/Color/B/W Channel 2: Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC extension |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC extension |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
wdr extension |
120dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Car; natural; street lamp; outdoors; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise reduction |
3D NO |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
4 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image stabilization |
Electronic Image Stabilization (EIS) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
8 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio compression |
PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; license plate recognition, people number error; tripwire; input error; intrusion; intensity change; fast moving; people counting; people-gathering; motion detection; missing object; parking detection; loitering detection; defocus detection; face detection; abandoned object; stay detection; human detection; queuing stay time; people number error detection; face recognition; video tampering; scenes changing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
RJ-45 (10/100/1000Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NetworkProtocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 160M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD card (support max. 256GB); NOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browsers |
Plug-ins: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 (baud rate range: 1200bps–115200bps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio inputs |
2 channels (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Inputs |
3 channels in: 5mA 3V–5VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
2 channels out: 300mA 12VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12VDC/PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption |
Basic: 5.5W (12VDC); 6.4W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–30 °C to +60 °C (–22 °F to 140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤ 95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures |
–40°C to +70°C (–40°F to +158°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal + plastic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
283.1mm × 123.2mm × 109.5mm (11.14" × 4.85" × 4.31") (L × W × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.905 g (4.20 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
2.185g (4.82lb) |
Further details
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera complies with the ONVIF® standard |
|
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation | |
AI | Artificial intelligence - Perimeter Protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, loitering
|
|
Video Stream - Triple Stream! This camera supports H.265+ video compression with 3 video streams! |
|
|
|
Dual CMOS Sensor 4MP 1/1.7" + 4MP 1/2.7" CMOS with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
|
|
Infrared illuminator with approximate maximum range of 100m |
|
Remote visibility on mobile using the Dahua DMSS application. |
|
Cloud function with Easy4IP
|
|
This camera features VIDEO ANALYSIS (SMART DETECTION): |
|
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast. |
|
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. |
|
This camera features the EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable |
|
DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog |
|
It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically. |
|
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
|
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
|
3D-NR is the most advanced version of NOIS REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light |
|
This camera features 2 audio inputs + 1 audio output (RCA Ports) Present On-board microphone and high quality loudspeaker. |
|
This camera has 3 alarm inputs + 2 alarm outputs | |
1xRS485 | |
Possibility to record what happens on MicroSD. (Max 256GB - Not included) |
|
Protection level IP67 ( Dust / Immersion ) |
|
A 12V DC power supply is required for the operation of this camera (not included) Support PoE power supply! |
|
This product is covered by a 24 month guarantee. |
