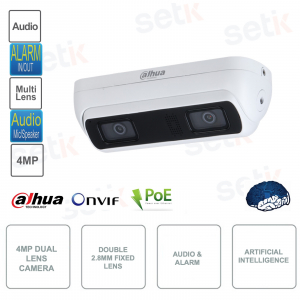

POE ONVIF 4MP IP camera - Double 2.8mm lens - Artificial intelligence - Audio - Alarm - Microphone

Room

Image Sensor

1/2.8”4Megapixel progressive CMOS

Max.Resolution

2560(H)×1440(V)

ROM

4GB

RAM

1GB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

2.0mm:

0.007 lux@F2.0 (Color, 30IRE)

0.0007 lux@F2.0 (B/W, 30IRE)

0 lux (Illuminator on)

2.8mm:

0.005 lux@F1.6 (Color, 30IRE)

0.0005 lux@F1.6 (B/W, 30IRE)

0 lux (Illuminator on)

S/N Ratio

>56dB

Illumination Distance

20m (65.62ft) (IR LEDs)

Illuminator On/Off Control

Car

Illuminator Number

1 (IR LEDs)

Pan/Tilt/Rotation Range

Tilt: –10° to 70°

lens

LensType

Fixed-focal

Lens mount

M12

Focal Length

2.8mm

Max. Openings

F1.6

Field of View

Horizontal: 95°; Vertical: 52°; Diagonal: 114°

Iris Control

Fixed

Close Focus Distance

1.1m (3.61ft)

Smart Events

IVS

abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshots, quality priority and optimization snapshots); face angle filter; optimization time setting

People Counting

Tripwire people counting, drawing polygonal lines for tripwire, generating and exporting report (day/week/month/year);

People counting in area, generating and exporting report (day/week/month);

Queue management, generating and exporting reports (day/week/month);

4 rules can be set for tripwire, people counting in area and queue management;

Supports crowd detection;

Supports intelligence trajectory.

Abnormal Behavior Analysis

Leave post detection which triggers alarms when no one is in the detection area, personnel have left their post or there is an abnormal number of people on duty in the detection area. Supports setting up to 20 personnel on duty at the same time.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codecs

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2560 × 1440 @(1–25/30 fps )
Sub streams: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Third stream: 1920 × 1080 @ (1–25/30 fps)

Stream Capability

3 streams

Resolution

1 channel (RCA port)

Alarm Inputs

2 channels in: 5mA 3V–5VDC

Alarm Output

2 channels out: 300mA 12VDC

analog output

1 channel (CVBS output: BNC)

Power

Power Supply

12VDC/PoE (802.3af)

power consumption

Basic: 4W (12VDC); 6.4W (PoE)

Max. (H.265+main stream/IR intensity+IR on): 11.3 W (12 VDC); 12.9W (PoE)

environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Storage Temperatures

–40°C to +60°C (–40°F to +140°F)

Protection

IP67; IK10

structure

Casing

Metal

Product Dimensions

204.0 mm × 78.0 mm × 61.6 mm (8.03" × 3.07" × 2.43") (L × W × H)

Net Weight

0.82kg (1.81lbs)

Gross Weight

1.18kg (2.60lbs)
