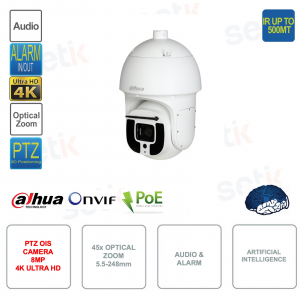

SD8A845QA-HNF - Dahua IP PoE ONVIF PTZ outdoor camera - Supports Hi PoE - 4K ULTRA-HD 8MP resolution with Artificial Intelligence, 5.5 -248 mm lens (45x zoom), 1/1.8 " Sony STARVIS CMOS sensor with Starlight Technology . IR illumination 10 LEDs 500M - H.265+ codec with Triple Stream Video - BNC output analogue - RS485 - RJ45 LAN 100M - Day/Night (ICR), WDR, Defog, ROI , Smart Wiper, Autotracking , Audio - Alarm - MicroSD 512GB slot (not included) - Material: ADC12 - Power supply 36 VDC, 2.23 A - IP67 and TVS 6000V protection against lightning.
FIND INSTALLER
€3,861.58
€8,980.42 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR IP CAMERA ONVIF® HI-POE - OIS - 4K ULTRA-HD 8MEGAPIXEL - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SD8A845QA-HNF
PTZ OIS IP ONVIF® HI-PoE Camera - Dahua AI Series - SD8A845QA-HNF
4K ULTRA-HD 8Megapixel Resolution, 45x Optical Zoom (5.5-248 mm) - 16x Digital Zoom - 1/1.8" Sony STARVIS Starlight CMOS Sensor - 10 LED 500M IR Illuminator - Day/Night(ICR) - Triple Stream - BLC - HLC - AWB - AGC - ROI - Defog - WDR - Audio 1in/1out - Alarm 7in/2 out - Smart Wiper - MicroSD slot up to 512GB (not included) - RS-485 - RJ45 100M - IP67 protection (for outdoors) / TVS6kV (from lightning - ADC12 body - Power supply included 36 VDC, 2.23 A - Artificial Intelligence: Video Metadata, PErimeter Protection, Face Detection, Auto Tracking - 24 Months Warranty
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- IP ONVIF® HI-PoE PTZ Starlight outdoor camera - AI Series - Dahua - SD8A845QA-HNF
- 4K ULTRA-HD 8Megapixel resolution
- CMOS sensor 1/1.8" Sony Starvis™ CMOS with Starlight Technology
- Starlight: Thanks to the sensor, color shots even at night
- Smart Wiper: The existing wiper starts / stops automatically, depending on the intensity of the rainfall
- Triple Stream
- 45x Optical Zoom (5.5 ~ 248 mm) + 16x digital zoom
- Video compression up to H.265+
- WDR - Defog, ROI, Day/Night(ICR)
- Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata
- Auto Tracking function: (Auto zoom on single, multi or panorama scene)
- IR illuminator 10 LED up to 500 meters!
- Audio: 1 in / 1 out
- Alarm: 7 inputs and 2 outputs
- BNC video output
- RS485 port
- RJ45 100M Ethernet LAN port
- IP67 protection (Dust / Immersion) - Outdoor camera
- 6KV lightning protection
- MicroSD slot (512GB - not included)
- ADC12 material
- Dimensions: 415.6mm × Φ262mm
- Net weight: 10Kg
- Material: ADC12
power consumption
Basic: 21W
Max.: 45W (IR + PTZ + wiper)
environment
Operating Temperature
–40°C to +70°C (–40°F to +158°F)
Operating Humidity
≤95%
Protection
IP67; TVS 6000V lightning proof; surge protection; voltage transient protection
structure
Casing
ADC12
Product Dimensions
415.6mm × Φ262mm (16.36" × Φ10.31")
Net Weight
10kg (22.05lbs)
Gross Weight
12kg (26.46lbs)
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera complies with the ONVIF® standard |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation This camera supports the High-PoE standard. |
| AI | Artificial intelligence - Auto tracking |
 | New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
 | This camera has a resolution of 8Megapixel! |
 | 1/1.8" Sony STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixel - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white.
With the SENSOR present, night shots will be clear and in colour
|
 | This camera is equipped with a wiper , useful for improving the view in case of rain.
|
 | Triple Stream : 50Hz: Main stream: 3840×2160@25fps/2560×1440@25fps/1920×1080@25fps/1280×960@25fps/1280×720@25fps Main stream: 3840×2160@30fps/2560×1440@30fps/1920×1080@30fps/1280×960@30fps/1280×720@30fps |
 | This camera features the AUTO TRACKING function.
|
 | This camera is equipped with 10 LED lighting with a maximum range of up to 500 meters! |
 | 45x Optical Zoom (5.5 ~248mm) + 16x Digital Zoom |
 | It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –30° to +90°, auto flip 180° Manual Control Speed: Pan: 0°/s–240°/s Tilt: 0°/s–100°/s??????? Preset Speed: Pan: 90°/s; Tilt: 60°/s??????? Presets: 300 PTZ Mode: 5 Pattern, 8 Tour(up to 32 preset per tour) 5 Scan Speed Setup: Yes Power off memory: Yes Idle Motion: Presets; Patterns; Tours; Scan??????? Protocol: DH-SD Pelco-P/D (auto recognition) |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 7 inputs and 2 alarm outputs. |
 | This camera features 1 Audio input + 1 Audio Output. |
 | RS 485 for PTZ commands (remotely controllable cameras) |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Last Function present ONLY in the Sony Effio-V, It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | wdr extension WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.  |
 | Possibility to insert Micro SD (512GB - not included ) |
 | Protection level IP67 ( Dust / Immersion ) |
 | This product is covered by a 24 month guarantee. |
