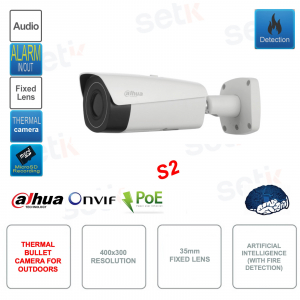

IP POE ONVIF thermal camera - 35mm lens - 400x300 - Artificial intelligence - S2 version

IP POE ONVIF thermal camera - 35mm lens - 400x300 - Artificial intelligence - S2 version
-57%

Dahua IP PoE ONVIF camera TPC-BF5401-B35-S2 - Version S2 - Outdoor/indoor thermal camera with 400(H)x300(V) resolution, Uncooled VOx Microbolometer sensor and 35mm fixed lens - H.265, Dual Stream, Motion Detection, ROI, Artificial Intelligence with fire alarm and perimeter protection , 256GB MicroSD slot (not included), People and Mobile Vehicles Detection , Audio, Alarm, RS485, CVBS analog BNC video output - IP67 protection for outdoor environments - Metal body.



Reference: TPC-BF5401-B35-S2

Brand: Dahua

EAN: 6923172530059

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IP CAMERA DAHUA THERMAL CAMERA ONVIF® POE 35MM - ARTIFICIAL INTELLIGENCE AND FIRE ALARM - AUDIO - ALARM - TPC-BF5401-B35-S2 - S2 VERSION

Made by Setik
Thermal Bullet IP Camera - S2 Version - Dahua - TPC-BF5401-B35-S2
Resolution 400(H)x300(V) - Uncooled VOx Microbolometer sensor - 35mm fixed lens - NETD 40mK - H.265 compression and dual stream
Motion Detection - ROI - Artificial intelligence with fire detection and perimeter protection - MicroSD 256GB slot (not included) - CVBS video output on BNC port - RS485 - RJ45 Ethernet - Audio 1in/1out / Alarm 2in/2out - Detection of People and Mobile Vehicles - IP67 protection - 24 months manufacturer's warranty.
THERMAL DETECTION


Product details

Telecamera Videosorveglianza IP Bullet Termica 25mm
  • ONVIF® PoE Thermal Bullet IP Camera - TPC-BF5401-B35-S2
  • S2 version
  • Resolution 400(H)x300(V)
  • Uncooled VOx Microbolometer sensor
  • 35mm fixed lens
  • Visual spectrum from 8 to 14?m
  • Thermal Sensitivity: 40mK
  • Compression up to H.265 and dual stream video
  • Detection of People (from 132 to 1030) and Mobile Vehicles (from 294 to 2288m)
  • Advanced intelligent functions (Fire detection and alarm, Cold/Hot spot trace, Human/Vehicle classification)
  • ROI, Motion Detection
  • 1 CVBS/BNC Video Out
  • Audio: 1 in and 1 out
  • Alarm: 2 inputs and 2 outputs
  • RS485 port
  • MicroSD slot (Max 256GB - not included)
  • 12V DC/PoE/ePoE power supply
  • Power supply NOT included
  • Metal body
  • Dimensions 291mm×103mm×97mm
  • Item net weight: 1.5Kg
  • Operating temperature: -40°C ~ +70°C
  • 24 month manufacturer's warranty

Data sheet

TPC-BF5401-B35-S2

thermal chamber

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

400(H)x300(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

40mK

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2.etc)

Thermal Lens

LensType

Fixed/F1.0

Focus control

power consumption

Max. 13W

environmental

Operating Condition

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

291mm×103mm×97mm (11.46" x 4.06" x 3.82")

Net Weight

1.5Kg (3.31lbs)

Gross Weight

1.9Kg (4.19lbs)

Further details

Thermal camera... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This camera is a THERMAL CAMERA .


Sensitivity 40mK

Visual spectrum from 8 to 14µm

Thermal Sensor:
Uncooled VOx Microbolometer

Ottica fissa 3.6mm

This camera has a 35mm fixed lens
People Detection: From 132 to 1030m
Detection of Mobile Vehicles: From 294 to 2288m



This camera has advanced intelligent features:
- Fire detection and alarm
- Perimeter protection

Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.

This camera features 1 Video Output (CVBS/BNC)

Full HDIt is extremely useful to have Inputs/Outputs in a CCTV system in order to be able to command relays or activate a recording following an event
This camera has 2 inputs and 2 outputs
Ingresso Audio This camera features 1 Input + 1 Audio Output
Dual encoding RS 485 for PTZ commands (remotely controllable cameras)
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

MicroSD recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

This camera was made of metal

Dual encoding This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Telecamera IP Termica 25mm Rilevamento Persone e mezzi
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
