TPC-BF2241-B3F4-DW-S2 - Thermal video surveillance camera - IP PoE ONVIF - Dahua - WizSense - Smoke, heat detection - Dual optics: thermal (3.5mm) / visible (4mm) - 4MP resolution for visible optics / 256×192 for thermal optics - Double sensor: 1x thermal Vanadium oxide uncooled focal plane detector + 1x CMOS 1/2.7" 4MP - Illumination up to 35m (visible) - Codec H.265 - Motion Detection - ROI - DWDR - AWB - HLC - BLC - AGC - 2D/3DNR - Day/night (ICR) - Alarm 1in/1out - Audio 1in/1out - MicroSD slot up to 256GB (not included) - RS485 - Ethernet RJ-45 LAN 100M - IP67 protection for outdoors - S2 VERSION
FIND INSTALLER
€1,123.17
€2,612.02 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
Description Product Details Data Sheet Further Details Download

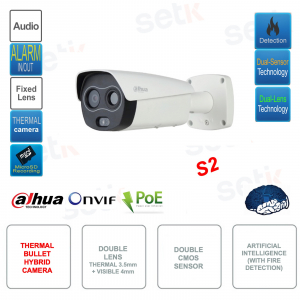

IP POE ONVIF® - DAHUA THERMAL VIDEO SURVEILLANCE CAMERA - 3.5MM THERMAL OPTICS - 4MM VISIBLE - DOUBLE SENSOR - ARTIFICIAL INTELLIGENCE - SMOKE AND FIRE DETECTION - IP67 - TPC-BF2241-B3F4-DW-S2
ONVIF® PoE IP Professional Thermal Video Surveillance Camera - Dahua - TPC-BF1241-B3F4-DW-S2
Dual-Lens (3.5mm thermal / 4mm visible) - 4MP resolution (visible lens) - 4MP resolution (visible lens) - Dual sensor (1x thermal 256x192 + 1x 1/2.7" 4MP) - Video Codec H.265 - Lighting (camera visible) up to 35m - Artificial intelligence: Smoke, fire, hot and cold area detection - Motion Detection - ROI - AWB - DWDR - BLC - HLC - Audio 1in/1out - Alarm 1in/1out - RS485 - RJ-45 Ethernet port - MicroSD slot up to 256GB (not included) - IP67 protection - Ideal for video surveillance systems.
Product details
- ONVIF® PoE IP - Professional Thermal Camera - Dahua - TPC-BF2241-B3F4-DW-S2
- S2 version
- Dual-Lens technology, dual optics (3.5mm thermal / 4mm visible)
- Dual-Sensor Technology , dual sensor (Vanadium Oxide Uncooled Focal Plane Detector - Thermal + CMOS 1/2.7" 4MP - Visible )
- Resolution 256x192 (thermal optical) / 4MP (visible optical)
- Artificial intelligence:
Smoke and fire detection - Detection of hot and cold areas
- Person/vehicle classification
- Visual spectrum from 8?m–14?m
- Sensitivity: ≤40mK@f/1.0
- ROI, Motion Detection, color palette
- DWDR, HLC, BLC, AGC, AWB, 3DNR, 2DNR
- Video compression h.265
- Dual Stream (visible and thermal)
- Alarm: 1 input and 1 output
- Audio: 1 audio input and 1 audio output
- RS485
- RJ-45 LAN Ethernet port
- 1 microSD-Card slot (Up to 256GB - not included)
- Power supply NOT included
- Power supply: 12V±20% DC/POE
- IP67 protection, ideal for outdoor use
- TVS 6000V lightning protection
- Dimensions: 279.9mm × 103.8mm × 95.8mm
- Product net weight: ≤1.4kg
- Operating temperature: –30 °C to +60 °C
- 24 months warranty
Data sheet
| TPC-BF2241-B3F4-DW-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 256(H)×192(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range | 8 μm–14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD) | ≤40 mK@f/1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 3.5mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | H: 50.6°; V: 37.8° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surge protection: 6 kV
Air discharge of 15 kV
Contact discharge of 8 kV
structure
Product Dimensions
279.9mm × 103.8mm × 95.8mm (10.31" × 0.46" ×
4.35") (L×W×H)
Packaging Dimensions
365mm × 175mm × 176mm (14.37" × 6.89" ×
6.92") (L×W×H)
Net Weight
≤1.4kg (3.09lbs)
Gross Weight
≤1.9kg (4.19lbs)
Heat Detection Distance
Max.Distance 22m (72.18ft) 40m (131.23ft)Perimeter Protection Distance
Distance (Human) Distance (Vehicle)24.5m (80.38ft)
72.5m (237.86ft)Further details
 | Thermal camera... what is it? and how to choose it? Body Temperature Measurement? What does it mean? |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | Dual Lens Technology! |
| Dual-Sensor Technology! |
 | This camera is a THERMAL CAMERA . Visual spectrum from 8 to 14µm
|
 | This camera features SMART DETECTION - Intrusion - Classification Persons / Vehicles) - Smoke detection - Detection of hot and cold areas - Fire detection & alarm
|
 | This camera can detect the presence of fire |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 1 input and 1 output |
 | This camera has 1 inputs + 1 Audio Output It has a built-in speaker |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature. ATW is a more advanced function than AWB (Auto White Balance), and is very important because without it, images may be completely unusable. Possibility to adjust the color balance manually (MWB) |
 | This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 |
|
 | Possibility to insert Micro SD up to a maximum of 256GB - not included |
 | Protection level IP67 ( Dust / Immersion ) It also features TVS 6000V lightning protection |
 | This product is covered by a 24 month guarantee. |
