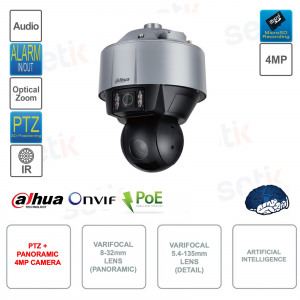

POE ONVIF IP camera - Panoramic and PTZ - Dahua - SDT5X425-4Z4-QA-0832 - Resolution up to 4MP 2688×1520 - Panoramic: 6mm fixed lens, 1/1.8" 4MP CMOS sensor, IR 30m - Detail: 4.8-120mm lens , CMOS sensor 1/1.8" 4MP, IR100m - WDR 120dB - AWB - HLC - BLC - Defog - ROI, 3DNR - Artificial intelligence - Audio - Alarm - RJ45 - IP67 protection for outdoors and TVS 8000 lightning protection - MicroSD slot 512GB ( not included) - Supports Hi-PoE power supply.
FIND INSTALLER
€2,950.88
€6,862.50 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
POE ONVIF IP CAMERA - PANORAMIC AND PTZ - DOUBLE LENS AND DOUBLE CMOS SENSOR - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SDT5X425-4Z4-QA-0832
Resolution 4MP 2688*1520 - Overview : Varifocal lens 8-32mm, CMOS 1/.1.8" 4MP, IR 30m white light - Detail (PTZ) : Varifocal lens 5.4-135mm, CMOS 1/1.8" 4MP, IR100m - H. 265+ with Triple Stream - WDR 120dB - AWB - HLC - BLC - Defog - ROI, 3DNR, - PFA Technology - Artificial Intelligence - Audio 1in/1out - Alarm 2in/1out - RJ45 100Mbps - IP67 protection, ideal for outdoor use / TVS 8000V from lightning - 512GB MicroSD slot (not included) - Supports HI-POE - Power supply: 36 VDC, 2.23 A (power adapter included).
Product details
- Hybrid PTZ and Panoramic Camera - Dahua - SDT5X425-4Z4-QA-0832
- 4MP 2688*1520 resolution
- Motorized lens 8-32mm (panoramic)
- 5.4-135mm varifocal lens (detail)
- 1/ 1.8 ” STARVIS CMOS sensor with Starlight Technology! (for overview and detail camera)
- Starlight: Thanks to the sensor, color shots even at night
- ULTRA WDR (120dB) - Day/Night (ICR), BLC, HLC, AGC, AWB, Defog
- Artificial Intelligence: Edge Protection and Smart Tracking, face detection
- PFA Technology
- 1 audio input and 1 audio output
- 2 inputs and 1 alarm outputs
- RJ45 100M
- IP67 Protection (Dust / Immersion)
- TVS 8000V lightning protection
- Product net weight: 9Kg
- Operating temperature: –40°C to +65°C
- Dimensions: 385mm × Φ277mm
- Hi-PoE power supply
- Power supply 36 VDC, 2.23 A (included in the package)
- 5 year manufacturer's warranty
Data sheet
| SDT5X425-4Z4-QA-0832 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | Panorama: 1/1.8"" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels | Landscape: 4MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | Panorama: 2688(H)×1520(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 8GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 4GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Panorama: 1s–1/30,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination | Landscape: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | Gross Weight | 13.8kg (30.42lbs) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
| |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. This camera is ONVIF® compatible | |
 | This camera features a resolution of 4MP 2688*1520 | |
| Double Sensor 1/1.8" CMOS STARVIS™ with STARLIGHT technology. Low brightness, color vision even in night mode With the Starlight CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white. With the SENSOR present, night shots will be clear and in colour
| |
| Double Optics: Varifocal 8-32mm with 25x Optical Zoom + 16x Digital Zoom (PTZ, detail) Varifocal 5.4-135mm (detail) | |
 | This camera involves the use of ARTIFICIAL INTELLIGENCE Perimeter Protection: smart tracking Face detection | |
 | This camera features the AUTO TRACKING function. | |
 | Lighting: Panoramic camera : up to 30m Detail camera : up to 100m | |
 | It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets
| |
 | This camera has 2 inputs and 1 alarm output | |
 | This camera has 1 audio input and 1 audio output | |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  | |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.  | |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  | |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  | |
 |
| |
 | Protection level IP67 ( Dust / Immersion ) |
