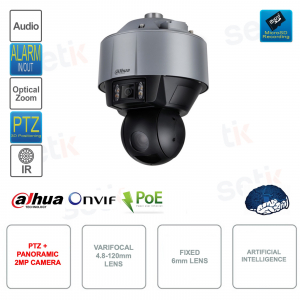

Outdoor PTZ IP POE ONVIF camera - 2MP - Dual 6mm lens - 4.8-120mm - AI

Outdoor PTZ IP POE ONVIF camera - 2MP - Dual 6mm lens - 4.8-120mm - AI
-57%

POE ONVIF IP camera - Panoramic and PTZ - Dahua - SDT5X225-2F-QA-0600 - Resolution up to 2MP Full HD 1080p - Panoramic: 6mm fixed lens, 1/.2.8" 2MP CMOS sensor, IR 30m - Detail: 4.8 lens - 120mm, CMOS sensor 1/2.8" 2MP, IR100m - WDR 120dB - AWB - HLC - BLC - Defog - ROI, 3DNR - Artificial intelligence - Audio - Alarm - RJ45 - IP67 protection for outdoor and TVS 8000 from lightning - MicroSD slot 256GB ( not included) - Support HI-POE power supply.



Reference: SDT5X225-2F-QA-0600

Brand: Dahua

EAN: 6923172529398

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

POE ONVIF IP CAMERA - PANORAMIC AND PTZ - DOUBLE LENS AND DOUBLE CMOS SENSOR - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM - DAHUA - SDT5X225-2F-QA-0600

Made by Setik
POE ONVIF IP camera - Overview and PTZ - Dahua - SDT5X225-2F-QA-0600
Resolution 2MP Full HD 1080p - Overview : 6mm fixed lens, 1/.2.8" 2MP CMOS, IR 30m in white light - Detail (PTZ) : 4.8-120mm varifocal lens, 1/2.8" 2MP CMOS, IR100m - H.265+ with Triple Stream - WDR 120dB - AWB - HLC - BLC - Defog - ROI, 3DNR, - PFA Technology - Artificial Intelligence - Audio 1in/1out - Alarm 2in/1out - RJ45 100M - IP67 protection, ideal for outdoor / TVS 8000V from lightning - 256GB MicroSD card slot (not included) - Supports HI-POE - Power supply: 36 VDC, 2.23 A (power adapter included).
Artificial Intelligence: Perimeter Protection and Smart Tracking

Product details

Telecamera Videosorveglianza Speed Dome PTZ Dahua
  • PTZ and Panoramic Hybrid Camera - Dahua - SDT5X225-2F-QA-0600
  • 2MP FULL-HD 1080P resolution
  • Motorized lens 4.8-120mm (PTZ)
  • 6mm fixed lens (Panoramic)
  • 1/2.8” STARVIS CMOS Sensor with Starlight Technology! (for overview and detail camera)
  • Starlight: Thanks to the sensor, color shots even at night
  • ULTRA WDR (120dB) - Day/Night (ICR), BLC, HLC, AGC, AWB, Defog
  • Artificial Intelligence: Perimeter Protection and Smart Tracking
  • PFA Technology
  • 1 audio input and 1 audio output
  • 2 inputs and 1 alarm outputs
  • RJ45 100M
  • IP67 Protection (Dust / Immersion)
  • TVS 8000V lightning protection
  • Product net weight: 9Kg
  • Operating temperature: –40°C to +65°C
  • Dimensions: 385mm × Φ277mm
  • Hi-PoE power supply
  • Power supply 36 VDC, 2.23 A (included in the package)
  • 5 year manufacturer's guarantee

Data sheet

SDT5X225-2F-QA-0600

Room

Image Sensor

Panoramic: 1/2.8" STARVIS™ CMOS

Detail: 1/2.8" STARVIS™ CMOS

Pixels

Panoramic: 2MP
Detail: 2MP

Max.Resolution

Panoramic: 1920(H)×1080(V)
Detail: 1920(H)×1080(V)

ROM

8GB

RAM

4GB

Electronic Shutter Speed

Panoramic: 1/1s–1/30,000s
Detail: 1/1s–1/30,000s

Scan Mode

Progressives

Min. Illumination Illumination

Overview:
Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
Details:
Color: 0.005lux@F1.6
B/W: 0.0005lux@F1.6
0 lux (IR light on)

Illumination Distance

Panoramic (white light): 30 m (98.43 ft)
Detail (IR light): 100m (328.08ft)

Illuminator On/Off Control

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

Standard ONVIF® support

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

This camera is ONVIF® compatible

Risoluzione 1080P FULL-HD 2 Megapixel

This camera features a resolution of 2MP 1080P FULL-HD :

Double Sensor 1/2.8" CMOS STARVIS™ with STARLIGHT technology.

Low brightness, color vision even in night mode

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixel

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

TLC_FIXED_lens.jpgOttica varifocaleOptical Zoom

Double Optics:
Varifocal 4.8-120mm with 25x Optical Zoom + 16x Digital Zoom (PTZ, detail)
6mm Fixed (Panoramic Camera)
Artificial Intelligence Technology

This camera involves the use of ARTIFICIAL INTELLIGENCE

Perimeter Protection:

smart tracking


This camera features the AUTO TRACKING function.
The system will identify the objects moving in a given video surveillance area and will automatically enlarge it for a better view of the tracked object.

IR illuminator 60MT Lighting:
Panoramic room 30m
Detail chamber 100m Infrared Illuminator

It supports 3D Intelligent Positioning with DH-SD protocol. In addition to the movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets

Generic PTZ Functions:


Pan/Tilt Range: Panoramic:
Pan: 0° to 360° endless Tilt: 0° to 30°
Details:
Pan: 0° to 305° Tilt: –10° to 90°


Manual Control Speed:
Overview:
Pan: 0.1°/s–100°/s Tilt: 0.1°/s–25°/s
Details:
Pan: 0.1°/s–120°/s Tilt: 0.1°/s–50°/s


Speed presets:
Overview:
Pan: 240°/s; Tilt: 60°/s
Details:
Pan: 430°/s; Tilt: 240°/s


Presets: 300
PTZ Mode: 5 Patterns, 8 Tours, 5 Scans
Idle Motion: Presets; Tours; Scan
Protocol: DH-SD, Pelco-P/D (Auto recognition)

Full HDThis camera has 2 inputs and 1 alarm output Ingresso Audio This camera has 1 audio input and 1 audio output Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

3D-DNR function

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.

Esempio funzione 3D-DNRMicroSD card slot

Possibility to insert Micro SD up to 256GB (not included)

Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

Downloads

Download the English brochure
SD50225-HC-LA dimensioni
