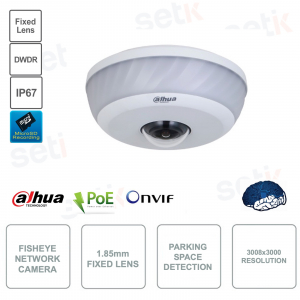

IP POE ONVIF FISHEYE CAMERA - 3008x3000 PIXEL - 1.85MM LENS - DWDR - VIDEO ANALYSIS - DAHUA - IPC-EB81242-PD
Fisheye IP ONVIF® PoE outdoor camera - Dahua - IPC-EB81242-PD
Ideal for use in car parks - 3008x3000 pixel progressive scan resolution - 1/1.7" CMOS sensor - 1.85mm Panoramic Fisheye lens - Smart Codec H.265+ - Triple Stream Video - HLC - BLC - 3DNR - Day/night(ICR) - AGC - DWDR - Audio 1in/1out - Alarm 2in/2out - MicroSD card slot up to 256GB (not included) - Protection Outdoor IP67 - Supports PoE+ - Made of plastic and metal - Video Analysis: Parking Space Management.
Product details
- Outdoor IP Onvif PoE camera - Dahua - IPC-EB81242-PD
- Ideal for use in car parks
- Resolution 3008x3000 pixels
- 1.85mm Fisheye Fixed Optics
- 1/1.7" CMOS sensor
- Video compression H.265+ / H.264+ Smart Codec
- Day/Night(ICR), 3DNR, AWB, AGC, BLC, HLC, ROI, Motion detection and Privacy Masking
- DWDR: Digital WDR
- Video Analysis: Management of parking spaces
- ONVIF® standards
- PoE+ supported
- MicroSD slot up to 256GB (not included)
- 1 Input + 1 Audio Output
- 2 alarm inputs and 2 alarm outputs
- IP67 protection (Dust / Immersion), ideal for outdoor use
- RJ45 10/100/1000 Base-T Ethernet port
- 12V DC / PoE power supply (not included)
- Operating temperature: –30 °C to +45 °C
- Dimension: 83.8mm × Φ176mm
- Item weight: 0.776kg
- Metal and plastic shell
- 24 months warranty
Data sheet
| IPC-EB81242-PD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
1/1.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
3008(H)×3000(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
4GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
2GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3s–1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
0.01 lux (Color) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
> 56dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
LensType |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lens mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Focal Length |
1.85mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max. Openings |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Field of View |
Horizontal: 180°; Vertical: 180°; Diagonal: 185° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption
Basic: 6,054W (12VDC); 5,893W (PoE)
Max. (ICR + indicator intensity + power output): 8.845 W (12 VDC); 8,325W (PoE)
Heating: 3W (12VDC); 3W (PoE)
environment
Operating Temperature
–30°C to +45°C (–22°F to +113°F)
Operating Humidity
≤ 95%
Storage Temperatures
–30°C to +70°C (–22°F to +158°F)
Protection
IP67
structure
Casing
Metal + plastic

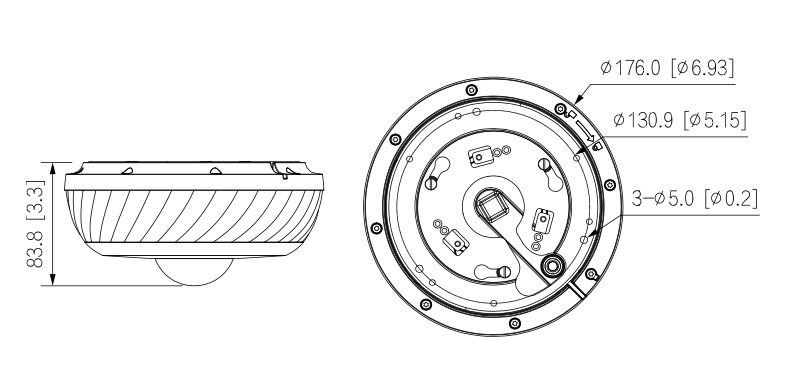

Product Dimensions
83.8mm × Φ176mm (3.3" × Φ6.9")
Net Weight
0.776 kg (1.71 lb)
Gross Weight
1.19kg (2.62lbs)
Further details
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation This camera has the PoE+ 802.3at protocol |
 |
1.85mm lens with FishEye effect. Useful lens to have a complete overview of what we want to shoot. 180° panoramic view |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
Main stream: 2432 × 2432@(1–20 fps ) Resolution: 3008×3000; 2432×2432; 2304×2304; 2144×2144; 1536×1536; 1.3M (1280×960); D1 (704×576/704×480); CIF (352×288/352×240) |
 |
This camera features SMART DETECTION: |
 |
This camera features 1 Audio input + 1 Audio output. |
 |
Equipped with 2 inputs and 2 alarm outputs. |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
Automatic Gain Control, with the possibility of autonomously adjusting the sensitivity in particular conditions of use  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
 |
3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
 |
Possibility to insert Micro SD up to a maximum of 256GB (not included) |
 |
Protection level IP67 ( Dust / Immersion ) |
 |
12V DC power supply not included  |
 |
This product is covered by a 24 month guarantee. |
