Hikvision DS-2CD1623G2-IZ(2.8-12mm) IP PoE Outdoor Bullet Camera 2MP FULL-HD 1080P , 2.8mm - 12mm Varifocal Lens, 1/2.9" CMOS sensor, H.265+ . Day&Night (ICR), Smart IR illuminator 50m, Micro SD slot ( 256GB - NOT INCLUDED ) Dual Stream, ROI, DWDR, BLC, 3D DNR, AGC, Motion Detection, reset button, IP67 protection for outdoor use, in metal.
FIND INSTALLER
discover the available quantity
DS-2CD1623G2-IZ(2.8-12mm) | POE IP BULLET VIDEO SURVEILLANCE CAMERA - HIKVISION - 2MP - 2.8MM-12MM LENS - OUTDOOR - H.265+ - SMART IR 50M - DWDR

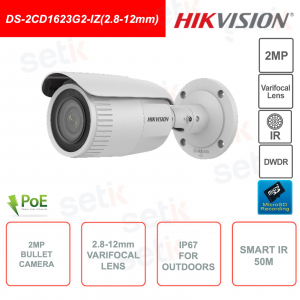

Hikvision IP PoE Outdoor Bullet Camera - DS-2CD1623G2-IZ(2.8-12mm)
Resolution: 2.0 MP 2MP 1080P FULL-HD 2Megapixel - Varifocal lens 2.8 mm - 12 mm - 1/2.9" CMOS sensor - H.265+ Smart Codec
Smart IR Illuminator 50m - Day/Night(ICR) - DWDR - AGC -BLC - 3D DNR - HLC - Motion Detection - Dual Stream - IP67 protection, ideal for outdoor use - Made of metal -
Power supply NOT included - MicroSD slot up to 256GB (not included) - 24 months warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
Resolution: Full HD 1080p resolution (1920x1080p). |
| Optics: This camera has a motorized Varifocal lens 2.8 - 12 mm |
H.265+ compression
A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Infrared IR Illuminator: This camera is also equipped with SMART IR technology. |
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
MICRO SD SLOT: 256GB Micro SD slot ( NOT INCLUDED in the package ) |
| BLC (Backlight Compensation): is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
D-WDR (Digital Wide Dynamic Range):  |
3D-DNR: |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersion. Suitable for outdoor environments. |
Data sheet
Room | |
Image Sensor | 1/2.9" Progressive Scan CMOS |
Max.Resolution | 1920×1080 |
Min Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Metal
Dimension
Ø105mm × 244.4mm (Ø4.1" × 9.6")
Package Dimensions
315mm × 137mm × 141mm (12.4" × 5.4" × 5.6")
Weight
Approx. 720g (1.6lb.)
With package weight
Approx. 1110g (2.4lb.)
Storage Conditions
-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark
Approve
EMC extension
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013 |
Further details
Downloads
