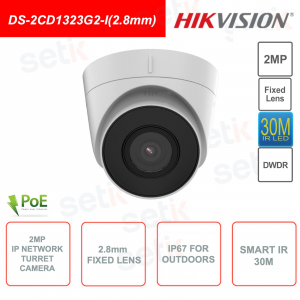

IP POE Turret video surveillance camera - 2MP - 2.8mm lens - Smart IR 30m

-35%

Hikvision DS-2CD1323G2-I(2.8mm) IP PoE outdoor camera Turret 2MP FULL-HD 1080P , 2.8mm fixed lens, 1/2.9" CMOS sensor, H.265+ . Day&Night (ICR), Smart IR 30M illuminator, Dual Stream, ROI, D-WDR, BLC, 3D DNR, AGC, Motion Detection, Privacy Masking, Hik-Connect, IP67 protection, metal and plastic.

Reference: DS-2CD1323G2-I(2.8mm)

Brand: Hikvision

EAN: 6931847121239

FIND INSTALLER

https://www.setik.biz/en/cameras/8914-hikvision-ds-2cd1323g2-i28mm-ip-poe-turret-video-surveillance-camera-2mp-28mm-lens-smart-ir-30m.html

€119.74

€184.22 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

Description Product Details Data Sheet Further Details Download

DS-2CD1023G2-I(2.8mm) | HIKVISION IP POE 2.0 MP 2.8MM OUTDOOR VIDEO SURVEILLANCE CAMERA H.265+ IR 30 METERS TURRET

Hikvision IP PoE Turret Camera - Outdoor - DS-2CD1023G2-I(2.8mm)
Resolution: 2.0 MP 2MP 1080P FULL-HD 2Megapixel - 2.8mm fixed lens - 1/2.9" CMOS sensor - H.265+
Smart IR Illuminator 30M - Day/Night(ICR) - Digital WDR - AGC -BLC - 3D DNR - Motion Detection - Dual Stream - IP67 protection from dust and rain (ideal for outdoor)
Power supply NOT included - 24 months warranty

POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

Resolution:
This camera features 2.0MP 2MP 1080P FULL-HD real-time resolution! (1920x1080pixels) at 25fps
Image sensor 1/2.9” 2Megapixel progressive scan CMOS

Optics:
This camera features a 2.8mm fixed lens

H.265+ compression

What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Backlight Compensation):
is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

IP67 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

Data sheet

DS-2CD1323G2-I(2.8mm)
Room
Image Sensor	1/2.9" Progressive Scan CMOS
Max.Resolution	1920×1080
Min Illumination	Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time	1/3s to 1/100,000s

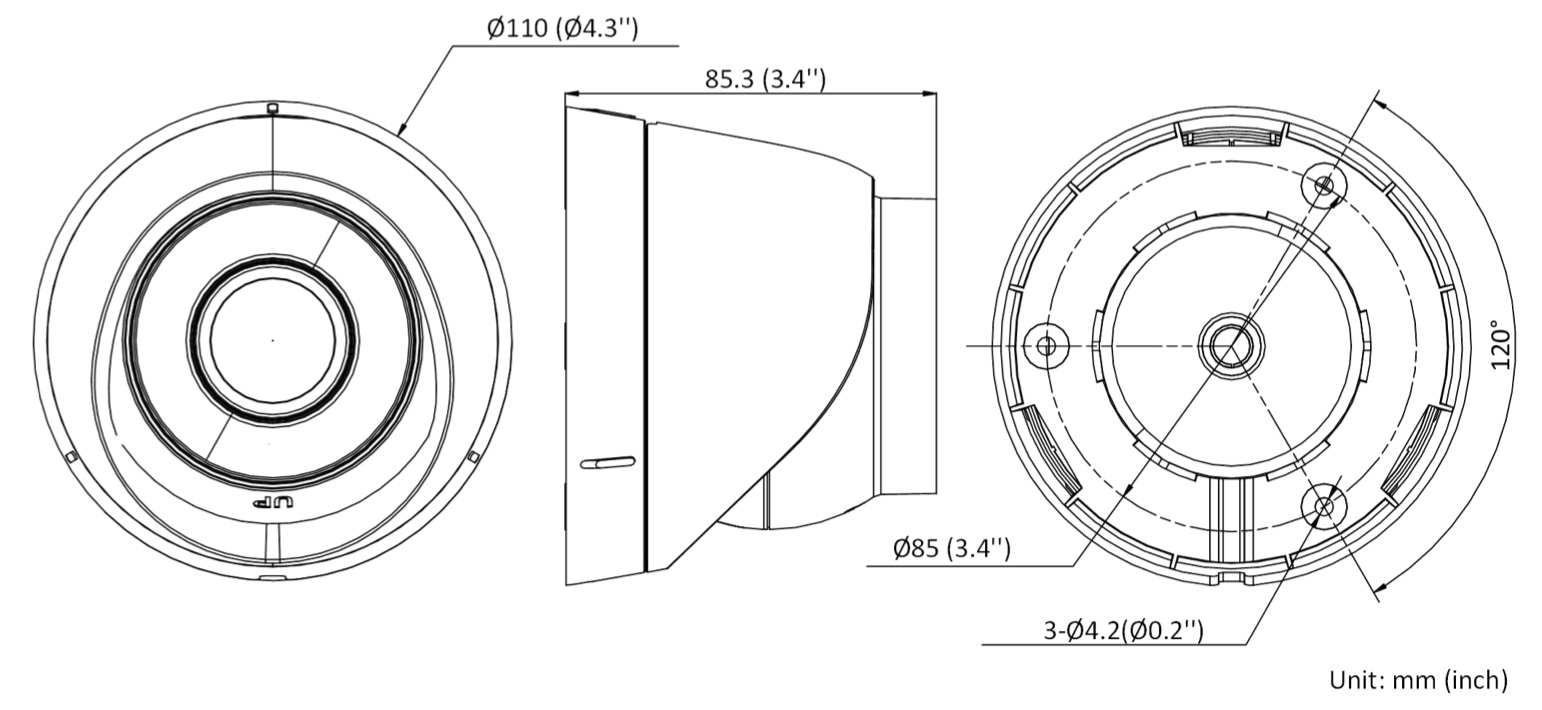

150mm × 150mm × 141mm (5.9" × 5.9" × 5.6")

Weight

Approx. 330g (0.7lb.)

With package weight

Approx. 550g (1.2lb.)

Storage Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approve
EMC extension	FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
environment	CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013
