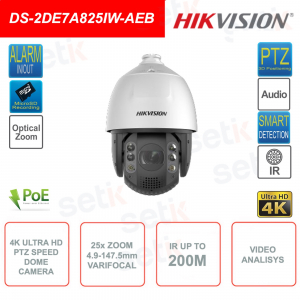

Speed Dome IP POE PTZ camera - 5.9-147.5 mm lens - 25x zoom - 8MP 4K - IR 200m

Speed Dome IP POE PTZ camera - 5.9-147.5 mm lens - 25x zoom - 8MP 4K - IR 200m
-35%

HIKVISION Speed Dome POE IP video surveillance camera - DS-2DE7A825IW-AEB - PTZ (Pan/Tilt/Zoom) - 25X Optical Zoom (5.9-147.5mm varifocal lens) - CMOS 1/1.8" 8MP 4K Ultra HD - H.265+ - Triple Stream - Day&Night(ICR) - WDR 120dB - BLC - HLC - 3DNR - ROI - Digital Defog - IR 200m - Alarm - Audio - Speaker - Micro SD slot ( up to 256GB - NOT INCLUDED ) - Hi-PoE - Video Analysis : Face detection / Perimeter protection - IP66 - IK10 - TVS 6kV - RJ45 100M - Material: ADC12.



Reference: DS-2DE7A825IW-AEB

Brand: Hikvision

FIND INSTALLER

€2,390.10

€3,677.08 -35%
taxes included
Tax included
 Available in 5 days



DS-2DE7A825IW-AEB | SPEED DOME PTZ IP POE CAMERA 8MP 4K - 25X ZOOM - 4.9-147.5mm LENS - FOR OUTDOOR USE - H.265+ - IR 200M - AUDIO - ALARM - SPEAKER - VIDEO ANALYSIS

Made by Hikvision

Hikvision IP PoE Outdoor Network IR Speed Dome Camera - DS-2DE7A825IW-AEB
Resolution: 8MP 4K Ultra HD 3840x2160p - 25X Optical Zoom ( 5.9 mm ~ 147.5 mm) - CMOS 1/1.8" - H.265+ Codec - Triple Stream - IR up to 200m - Day/Night(ICR) - HLC -BLC - 3D DNR - ROI - Digital Defog - Motion Detection - Audio: 1in/1out - Integrated speaker - Alarm: 2in/1out - Video Analysis : Face detection + Perimeter protection - Ethernet RJ45 100M - Power supply NOT included - MicroSD 256GB slot ( not included ) - Protections: IP66/IK10/TVS 6000V - Material: ADC12 - 24 months manufacturer's warranty.

POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

It supports HI-POE standard

Resolution:
This camera features 8.0MP 8 Megapixels real-time resolution! (3840x2160p)
Image sensor 1/1.8” 8MP 4K Ultra HD

Optics:
This camera features 5.9 mm ~ 147.5 mm Varifocal lens (25x optical zoom)

Digital zoom: 16x.

Zoom speed 4.8s

PTZ:

PTZ camera:

Pan: 360°

Tilt: -15° to 90° (auto flip)

Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s

Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s

Presets: 300

Patrol Scan: 8 patrols, up to 32 presets for each patrol

Pattern Scan: 4 pattern scans

Power Off Memory: Yes

3D Positioning: Yes

Optics:
This camera features 5.9 mm ~ 147.5 mm Varifocal lens (25x optical zoom)

Digital zoom: 16x.

H.265+ compression


What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision.
Range up to 200m, with additional illuminator!

Video Analysis

This camera features advanced Video Analysis functions:
- Face recognition and detection
- Perimeter protection: line crossing, intrusion, entry/exit from the area.

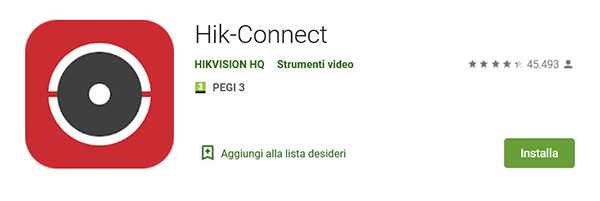

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

Slot for 256GB Micro SD slot ( NOT INCLUDED )

Audio

1 Audio input and 1 Audio output

Integrated speaker, equipped on board!

Alarm:

Equipped with 2 inputs and 1 alarm output

BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

smart tracking

Manual tracking, auto tracking

Alarm Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)

Deep learning functions

Face Capture

Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face

perimeter protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

Power

24VAC, max. 42W (including max. 18W for IR and max. 10W for heater); Hi-PoE

Operating Condition

-30°C to 65°C (-22°F to 149°F). Humidity 90% or less (non-condensing)

Demist

Yes

Material

ADC12

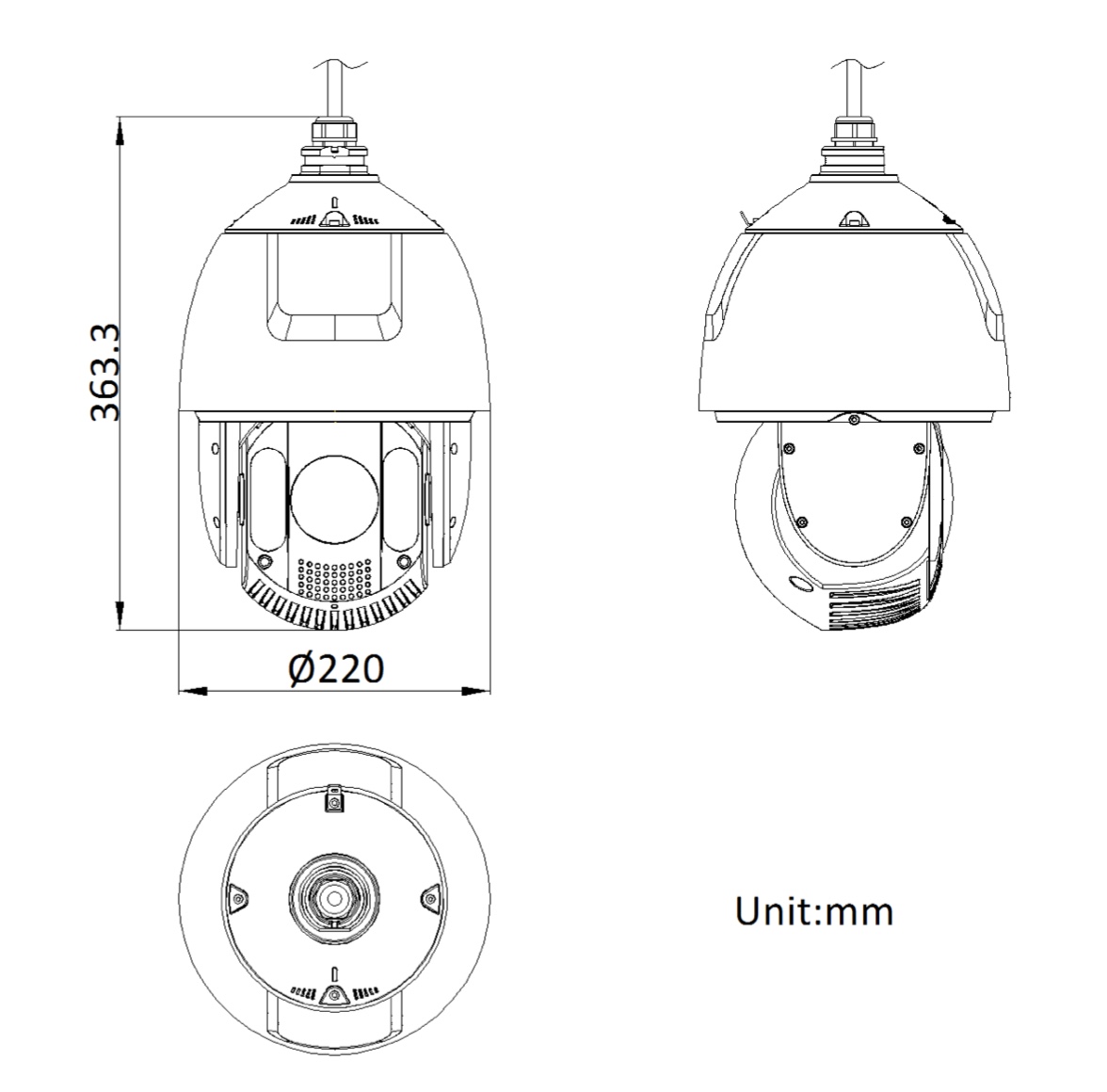

Dimension

Ø220mm × 363.3mm (Ø8.66" × 13.91")

Weight

Approx. 5kg (11.03lb.)

Approve

Protection

IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection

EMC extension

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)

Further details

Downloads

Download the English brochure
