4MP Mini Network Camera - 2.8mm fixed lens - Video Analysis - WDR 120dB

4MP Mini Network Camera - 2.8mm fixed lens - Video Analysis - WDR 120dB
-35%

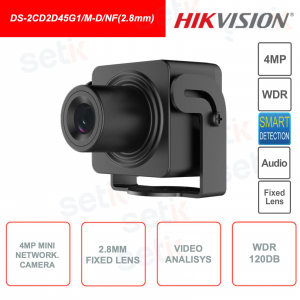

DS-2CD2D45G1/MD/NF(2.8mm) Camera - HIKVSION - Mini Network - 4MP Resolution - 2.8mm Fixed Lens - 1/3" CMOS Sensor - H.265+ Codec - Triple Stream - WDR 120dB, BLC, 3D DNR, HLC, Day//Night(ICR) - ROI - Privacy Masking - Motion Detection - Audio: 1in - Up to 32 users - Video Analysis with Perimeter, Intrusion, Scene Change Protection - Reset Key - Weight 93g.



Reference: DS-2CD2D45G1/M-D/NF(2.8mm)

Brand: Hikvision

FIND INSTALLER

€222.83

€342.82 -35%
taxes included
Tax included
 Available in 5 days



DS-2CD2D45G1/MD/NF(2.8mm) | MINI NETWORK CAMERA - 2.8MM - CMOS 1/3" 4MP - AUDIO - VIDEO ANALYSIS - H.265+

Made by Hikvision

Hikvision Mini Network Camera - 4MP - 2.8mm Fixed Lens - DS-2CD2D45G1/MD/NF(2.8mm)
Resolution: 4MP - 2.8mm fixed lens - 1/3" CMOS sensor - Smart Codec H.265+ - WDR 120dB - AGC -BLC - HLC - 3D DNR - Day//Night(ICR) - ROI - Privacy Mask - Motion Detection - Triple Stream - Audio 1in - Video Analysis with line crossing and abandoned and lost objects, intrusion detection, entry and exit from the region - Reset Button - 1 RJ45 10 M/100 M - Power supply NOT included - 24 months warranty
Resolution:
This camera features a resolution of 4MP 4 Megapixels
Image sensor 1/3” 4Megapixels progressive scan CMOS 4MP: 2560 × 1440
Optics:
This camera features a 2.8mm fixed lens
H.265+ compression


What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

HIK-CONNECT

Hik Connect allows you to control the device remotely

Video Analysis:

This camera features traditional video analysis functions such as:

Perimeter protection
Intrusion Detection
Unexpected baggage detection
Entry and exit from the region
Change of scenery

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

WDR 120dB

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
AUDIO :

This camera has 1 audio input.

Data sheet

DS-2CD2D45G1/MD/NF(2.8mm)

Smart Events

Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection

Linkages

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

Power

12VDC ±20%, 0.13A, max. 1.5W, Ø 5.5mm coaxial power plug

Dimension

31.5mm × 31.5mm × 49.6mm (1.2" × 1.2" × 2")

Package Dimensions

130mm × 104mm × 85mm (5.1" × 4.1" × 3.3")

Weight

Approx. 93 g (0.2 lb.)

With package weight

Approx. 202 g (0.4 lb.)

Storage Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Language

18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese

General Function

One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter

Approve

EMC extension

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)

environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Further details

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
