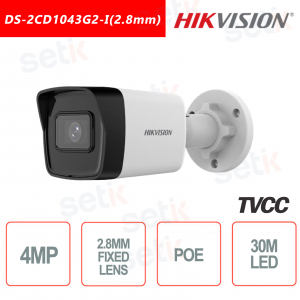

Hikvision DS-2CD1043G2-I(2.8mm) IP PoE outdoor camera Bullet 4MP 4.0 , 2.8mm fixed lens, 1/3" CMOS sensor, H.265+ . Day&Night (ICR), 30M IR illuminator, Dual Stream, ROI, WDR 120dB , BLC, 3D DNR, AGC, Motion Detection, Hik-Connect access.IP67 protection, metal and plastic.
€158.60
€244.00 -35%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CD1043G2-I | HIKVISION IP POE 4MP 2.8MM OUTDOOR CAMERA H.265+ IR 30 METERS WDR BULLET
Resolution: 4MP 4Megapixel - 2.8mm fixed lens - 1/3" CMOS sensor - H.265+
IR Illuminator 30M - Day/Night(ICR) - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - Dual Stream
Power supply NOT included - 24 months warranty
POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
Resolution: This camera features 4MP 4Megapixel real-time resolution! (2560×1440pixels) 1/3" CMOS image sensor |
Optics: This camera features a 2.8mm fixed lens |
H.265+ compression
A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Infrared IR Illuminator: |
HIK-CONNECT Hik Connect allows you to control the device remotely |
ROI (Region Of Interest): The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image. |
WDR 120dB: WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast. |
Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. |
IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
BLC (Backlight Compensation): is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
3D-DNR: |
Diet: A 12V DC power supply is required for the operation of this camera (not included) |
IP67 protection: Protection from dust and temporary immersion. Suitable for outdoor environments. Also equipped with TVS 2000V lightning protection |
Data sheet
DS-2CD1043G2-I(2.8mm) | |
Room | |
Image Sensor | 1/3" Progressive Scan CMOS |
Max.Resolution | 2560×1440 |
Min Illumination | Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3s to 1/100,000s |
Day & Night | IR cut filter |
Angle adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
lens | |
LensType | Fixed focal lens, 2.8mm |
Focal Length & FOV | horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° |
Lens mount | M12 |
Iris type | Fixed |
Openings | F.20 |
Illuminator | |
Supplement Light Type | IR |
Supplement Light Range | Up to 30m |
Smart Supplement Light | Yes |
IR Wavelength | 850 n.m |
Video | |
Main Stream | 50Hz: 20fps (2560 × 1440) 25fps (1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440) 24fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 24fps (1280×720, 640×480, 640×360) |
Video Compression | Mainstream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32Kbps to 8Mbps |
H.264Type | Baseline Profile/Main Profile/High Profile |
H.265Type | Main Profile |
Bit Rate Control | CBR/VBR |
Region of Interest (ROI) | 1 fixed region for main stream |
Network | |
Security | Password protection, complicated password, watermark, IP address filter, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
Simultaneous Live View | Up to 6 channels |
APIs | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK |
Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
User/Host | Up to 32 users 3 levels: administrator, operator, and user |
Clients | iVMS-4200, Hik-Connect |
Web Browsers | Plug-ins required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+ |
General | |
Wide Dynamic Range (WDR) | 120dB |
SNR | ≥52dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
PrivacyMask | 4 programmable polygon privacy masks |
Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
Power | 12VDC ±25%, 0.4A, max. 5 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5W |
Material | Metal & Plastic |
Dimension | 170.8mm × 66mm × 69.1mm (6.7" × 2.6" × 2.7") |
Package Dimensions | 216mm × 121mm × 118mm (8.5" × 4.8" × 4.6") |
Weight | Approx. 270g (0.6lb.) |
With package weight | Approx. 481g (1.1lb.) |
Storage Conditions | - 30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
