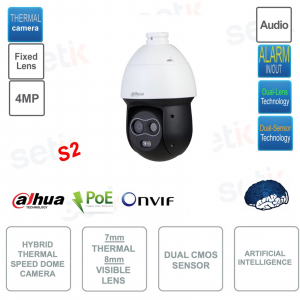

Outdoor thermal Speed Dome camera - IP POE ONVIF - Dahua - TPC-SD2241-B7F8-DW-S2 - Version S2 - Dual-Lens , double fixed lens: thermal ( 7mm) / visible (8mm) - Double CMOS sensor - Thermal Resolution 1.3MP - Visible 4MP - Artificial Intelligence: Perimeter Protection, Heat Detection, Target Distinction, Cold/Hot Spot/ Smoke Detection / Call Detection - DWDR - HLC - Day/Night - CVBS Analog Output - Audio - Alarm - RJ45 10M - RS485 - IP66 for outdoor - 6kV lightning protection.
FIND INSTALLER
€1,565.41
€3,640.48 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP POE THERMAL SPEED DOME CAMERA ONVIF WITH DUAL LENSES, ARTIFICIAL INTELLIGENCE - S2 VERSION - DAHUA - TPC-SD2241-B7F8-DW-S2
Hybrid Speed Dome IP POE ONVIF Thermal Camera - Dahua - TPC-SD2241-B7F8-DW-S2
Dual Image Sensor - Artificial Intelligence: Perimeter Protection, Heat Detection, Target Distinction, Cold/Hot Spot/ Smoke Detection / Call Detection - Audio 1in/1out - Alarm 2in/1out - DWDR - HLC - Day/night(ICR) - AWB - Defog - 256GB MicroSD slot (not included) - RS485 - RJ45 LAN 10/100M - IP66 protection from outdoor and TVS6Kv from lightning.
| THERMAL DETECTION |
|---|
  |
Product details
- IP POE ONVIF Thermal Hybrid Speed Dome Camera - Dahua - TPC-SD2241-B7F8-DW-S2
- S2 version
- Dual-Lens technology, dual optics (Thermal 7mm / Visible 8mm)
- Dual-Sensor Technology , dual sensor (Vanadium oxide uncooled focal plane detector - thermal / 1/2.7” 4MP CMOS - visible)
- Resolution 256 x 192 (thermal optical) / Up to 4MP 2336 (H) × 1752 (V) (visible optical)
- Visual spectrum from 8 μm–14 μm
- Thermal Sensitivity: ≤40mK@f/1.0
- Artificial Intelligence: Perimeter Protection, Heat Detection, Target Distinction, Cold/Hot Spot/ Smoke Detection / Call Detection
- 1 CVBS analog BNC video output
- 2 inputs and 1 alarm output
- 1 audio input and 1 audio output
- 1 microSD-Card slot up to 256GB
- PoE+ protocol
- RS485
- RJ45 10/100M Ethernet LAN
- Power supply NOT included
- Dimensions: 295mm × Φ160mm
- IP66 protection for outdoors
- Metal body
- TVS 6Kv lightning protection
- Net weight: ≤3.2kg
- Power supply 12 VDC, 2 A and PoE+
- Operating temperature: –30 °C to +60 °C
- 24 months warranty
- Includes PFB305W Wall Bracket
Data sheet
| TPC-SD2241-B7F8-DW-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Thermal | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DetectorType | Vanadium oxide uncooled focal plane detector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 256(H)×192(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel Pitch | 12 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Spectral Range | 8 μm–14 μm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sensitivity (NETD) | ≤40 mK@f/1.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 7mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio inputs | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12VDC, 2A ± 20%, PoE+ (802.3at) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption | Basic: <12W (12VDC); 4.8W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ePoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –30°C to +60°C (–22°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40°C to +70°C (–40°F to +158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Characteristics | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP66 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Reliability | Surge protection: 6 kV | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 295mm × Φ160mm (11.61" × Φ6.30") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions | 267 mm × 267 mm × 437 mm (10.51" × 10.51" × 17.20") (W × L × H) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | ≤3.2kg (7.05lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | ≤4.7kg (10.36lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Detection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | Max.Distance | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
7mm | 40m (131.23ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | Distance (Human) | Distance (Vehicle) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
7mm | 49m (160.76ft) | 147m (482.28ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | Thermal camera... what is it? and how to choose it? |
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems |
 | This camera is a THERMAL CAMERA .
Visual spectrum from 8 to 14µm
|
 | Dual Lens Technology! - People detection up to 292 m - Detection of mobile vehicles up to 778 m  |
 | This camera features PAN (HORIZONTAL) and TILT (VERTICAL) rotation Horizontal positioner: 0° ~ 360° continuous |
| Dual-Sensor Technology!
|
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
 | This camera features SMART DETECTION - Intrusion - Classification Persons / Vehicles) - Smoke detection - Detection of hot and cold areas - Fire detection & alarm
|
 | This camera can detect the presence of fire |
 | This camera features 1 BNC Video Output |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event This camera has 2 inputs and 1 output |
 | This camera has 1 inputs + 1 Audio Output |
 | IP66: Guarantees protection from dust and water jets (rain) |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | This camera features the Motion function by connecting it to a recording device having alarm inputs. |
 | Possibility to insert Micro SD up to a maximum of 256Gb |
 | This camera was made of metal |
 | This product is covered by a 24 month guarantee. |
