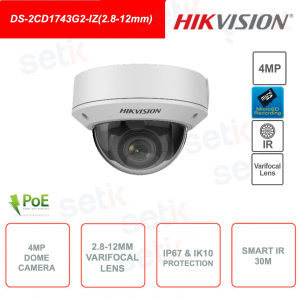

IP POE Dome 4MP outdoor camera - 2.8-12mm varifocal - Smart IR 30m

-35%

Hikvision DS-2CD1743G2-IZ(2.8-12mm) IP PoE ONVIF outdoor dome camera - 4MP 2560x1440p , 2.8mm - 12mm motorized varifocal lens, 1/3" CMOS sensor, H.265+ . Day&Night (ICR), Smart IR 30M , Micro SD slot ( up to 256GB - sold separately ) - Dual Stream - ROI, WDR120dB, BLC, 3D DNR, AGC - Motion Detection - Reset button - IP67 / IK10 protection - Metal - Ideal for outdoor use.

Reference: DS-2CD1743G2-IZ(2.8-12mm)

Brand: Hikvision

EAN: 6931847181901

FIND INSTALLER

https://www.setik.biz/en/cameras/8696-hikvision-ds-2cd1743g2-iz28-12mm-ip-poe-dome-4mp-outdoor-camera-28-12mm-varifocal-smart-ir-30m.html

€279.93

€430.66 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

Description Product Details Data Sheet Further Details Download

DS-2CD1743G2-IZ(2.8-12mm) | HIKVISION IP POE 4.0 MP 2.8MM-12MM OUTDOOR CAMERA H.265+ IR 30 METERS DOME - IP67/IK10 PROTECTION

Hikvision IP PoE Outdoor Dome Camera
Resolution: 4.0 MP 4MP 1080P 2K 4Megapixel - Varifocal lens 2.8 mm - 12 mm - 1/3" CMOS sensor - H.265+
Smart IR illuminator up to 30m - Day/Night(ICR) - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - Dual Stream Video - RJ45 Ethernet - Reset button - Metal - IP67 protection against dust and splashes - Protection against acts vandalism IK10 - Power supply NOT included - 256GB MicroSD slot (not included) - 24 months warranty

POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

Resolution:
This camera features 4.0MP 4MP 2K real-time resolution! (2560×1440 pixels)
Image sensor 1/3” 4MP progressive scan CMOS

Optics:
This camera has a 2.8 - 12 mm motorized Varifocal lens

H.265+ compression

What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Backlight Compensation):
is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

WDR120dB

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

IP67 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

IK10:

IK 10 is the highest level of protection from direct damage.
This allows the use of the camera even if there is a risk of vandalism.

Data sheet

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkages	Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
General
Power	12 VDC ± 25%, reverse polarity protection, 0.8 A, max. 9.6 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5W
Material	Metal
Dimension	Ø141mm × 99.9mm (Ø5.6" × 3.9")
Package Dimensions	140mm × 140mm × 154mm (5.5" × 5.5" × 6.1")
Weight	Approx. 820g (1.8lb.)
With package weight	Approx. 1200g (2.6lb.)
Storage Conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)
Language	English, Ukrainian
General Function	Anti-banding, heartbeat, mirror, password protection, privacy mask, watermark

Approve
EMC extension	FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
Safety	UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
environment	CE-RoHS: 2011/65/EU WEEE 2012/19/EU Reach: Regulation (EC) No 1907/2006
Electrical Safety Protection	IP67: IEC 60529-2013; IK10:IEC 62262:2002
