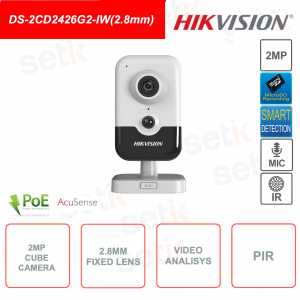

Hikvision DS-2CD2426G2-IW(2.8mm) IP PoE Cube camera - 2MP resolution - 2.8mm fixed lens - 1/2.8" CMOS sensor - PIR - H.265+. Day&Night (ICR), Smart IR illuminator 10m - Triple Stream Video - Video Analysis : Face Detection and Perimeter Protection - WDR 120dB , ROI, BLC, 3D DNR, Motion Detection - MicroSD slot (512GB - NOT INCLUDED) - RJ45 100M - In plastic.
FIND INSTALLER
€226.80
€348.92 -35%
DS-2CD2426G2-IW(2.8mm) | CUBE HIKVISION IP 2MP POE CAMERA - H.265+ - SMART IR 10 METERS - PIR - CUBE
Hikvision IP PoE Cube Camera - DS-2CD2426G2-IW(2.8mm)
Resolution: 2MP FULL HD - 2.8mm fixed lens - 1/2.8" CMOS sensor - H.265+ - Triple Stream - PIR with range up to 8m -
Smart IR 10m - Day/Night(ICR) - WDR 120dB, BLC, HLC, ROI, 3DNR - Video Analysis (Face Detection and Perimeter Protection) - Built-in microphone - Etehernet RJ45 100M -
Power supply NOT included - MicroSD slot - 24 months warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Resolution: This camera features 2MP FULL-HD resolution in real time! 1920x1080P Image sensor 1/2.8” 2 progressive scan CMOS |
Optics: |
H.265+ compression
A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Infrared IR Illuminator: |
VIDEO ANALYSIS: This camera integrates video analysis functions:
|
| WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.  |
PIR Integrated PIR with maximum detection range up to 8m. Detection angle: |
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Backlight Compensation): is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
| ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
|
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket , WebSockets |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Clients | iVMS-4200, Hik-Connect, Hik-Central |
Web Browsers | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
image | |
Wide Dynamic Range (WDR) | 120dB |
Day/Night Switch | Day, Night, Auto, Schedule |
Image Enhancement | BLC, HLC, 3D DNR |
Image Parameters Switch | Yes |
Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
PIR | |
PIR Angle | Horizontal: 90°, vertical: 80° |
PIR Range | Up to 8m |
interface | |
Built-in Microphone | Yes |
Built-in Speaker | Power: 1W. Max. sound pressure level: 10cm: 91dB. |
On-board Storage | Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512GB |
Hardware Reset | Yes |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Event | |
Basic Event | Motion detection, video tampering alarm, exceptions |
Smart Events | Scene change detection |
Linkages | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning |
Deep learning functions | |
Face Capture | Yes |
perimeter protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
General | |
Power | 12VDC ±25%, 0.50A, max. 6 W, Ø 5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.2 A to 0.13 A, max. 7W |
WebClientLanguage | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
Storage Conditions | -10°C to 40°C (14°F to 104°F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -10°C to 40°C (14°F to 104°F). Humidity 95% or less (non-condensing) |
Room Material | Plastic |

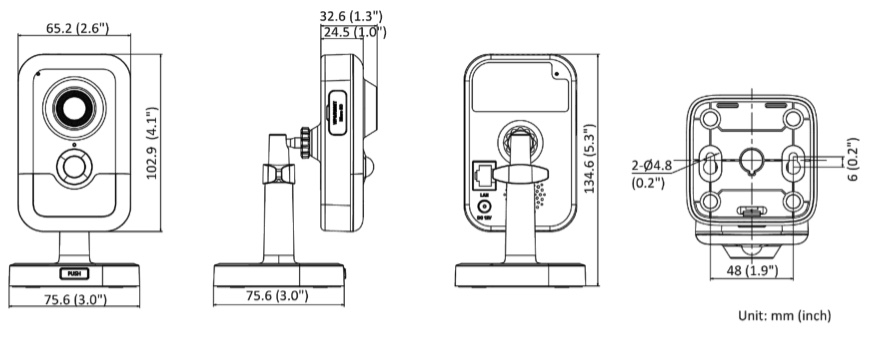

Room Size | 102.9mm × 65.2mm × 32.6mm (4.1" × 2.6" × 1.3") |
Package Dimensions | 150mm × 125mm × 99mm (5.9" × 4.9" × 3.9") |
Camera Weight | Approx. 120g (0.3lb.) |
With package weight | Approx. 430g (0.9lb.) |
Approve | |
EMC extension | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015) |
Safety | UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017) |
environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
