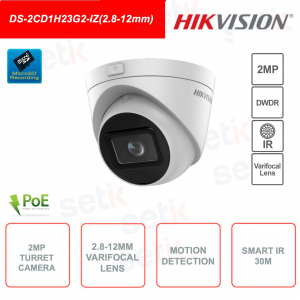

Hikvision DS-2CD1H23G2-IZ(2.8-12mm) IP PoE outdoor camera Turret 2MP Full HD 1080P - 2.8mm-12mm Varifocal Lens - 1/2.9" CMOS - H.265+ - Triple Stream - Day&Night(ICR), Smart IR 30m - Micro SD slot (up to 256GB - NOT INCLUDED ) - ROI, DWDR, BLC, HLC, 3D DNR, AGC, Motion Detection - Reset Key - IP67 protection for outdoor use.
FIND INSTALLER
€248.21
€381.86 -35%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
DS-2CD1H23G2-IZ(2.8-12mm) | TURRET HIKVISION IP POE 2MP CAMERA - 2.8MM-12MM VARIFOCAL LENS - OUTDOOR - H.265+ - SMART IR 30M
Resolution: 2MP 1080p FULL-HD - Varifocal lens 2.8 mm - 12 mm - 1/2.9" CMOS sensor - Dual Stream - H.265+ - Smart IR up to 30m - Day/Night(ICR) - D-WDR - AGC - BLC - 3D DNR - Motion Detection - Power supply NOT included - 256GB MicroSD slot (not included) - 24 months warranty
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Resolution: This camera features 2.0MP 2MP 1080P Full-HD real-time resolution! Image sensor 1/2.9” 2Megapixel progressive scan CMOS. |
| Optics: This camera has a 2.8-12 mm motorized Varifocal lens |
H.265+ compression
A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
Infrared IR Illuminator: This camera is also equipped with SMART IR technology.
|
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
MICRO SD SLOT: 256GB Micro SD slot ( NOT INCLUDED ) |
| BLC (Backlight Compensation): is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
D-WDR (Digital Wide Dynamic Range):  |
3D-DNR: |
| Diet: A 12V DC power supply is required for the operation of this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersion. Suitable for outdoor environments. |
Data sheet
| DS-2CD1H23G2-IZ(2.8-12mm) | |
Room | |
Image Sensor | 1/2.9" Progressive Scan CMOS |
Max.Resolution | 1920×1080 |
Min Illumination |
12VDC ±25%, 0.75A, max. 9 W, Ø 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10W |
Dimension | Ø129.4mm × 116.4mm (Ø5.1" × 4.6") |
Package Dimensions | 170mm × 170mm × 150mm (6.7" × 6.7" × 5.9") |
Weight | Approx. 605g (1.3lb.) |
With package weight | Approx. 880g (1.9lb.) |
Storage Conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
General Function | Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark |
Approve | |
EMC extension | FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 |
Safety | UL: UL 62368-1 CB: IEC 62368-1: 2014 + A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252(Part 1): 2010/IEC 60950-1: 2005 |
environment | CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006 |
Protection | IP67: IEC 60529-2013 |
