IP POE dome camera - 2MP - 2.8-12mm - SMart IR 30m - IP67 - IK10

IP POE dome camera - 2MP - 2.8-12mm - SMart IR 30m - IP67 - IK10
-35%

Hikvision DS-2CD1723G2-IZ(2.8-12mm) IP PoE Dome Camera - Outdoor - 2MP Full-HD 1080P Resolution, 2.8mm - 12mm Varifocal Lens, 1/2.9" CMOS sensor, H.265+ . Day&Night (ICR), IR illuminator 30M, Micro SD slot ( 256GB max. - NOT INCLUDED ) - Dual Stream, ROI, D-WDR, BLC, 3D DNR, AGC, Motion Detection, reset button, IP67 / IK10 protection - RJ45 Ethernet - Reset button - Metal.



Reference: DS-2CD1723G2-IZ(2.8-12mm)

Brand: Hikvision

FIND INSTALLER

€248.21

€381.86 -35%
taxes included
Tax included
 Available in 5 days



DS-2CD1723G2-IZ(2.8-12mm) | HIKVISION IP POE DOME CAMERA 2.0 MP 2.8MM-12MM OUTDOOR H.265+ - SMART IR 30 METERS - IP67/IK10

Made by Hikvision

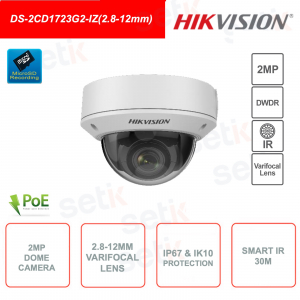

Hikvision IP PoE Dome Camera Outdoor - DS-2CD1723G2-IZ(2.8-12mm)
Resolution: 2.0 MP 2MP 1080P FULL-HD 2Megapixel - 2.8 mm - 12 mm motorized varifocal lens - 1/2.9" CMOS sensor - Dual Stream Video - H.265+
Smart IR Illuminator 30M - Day/Night(ICR) - D-WDR - AGC -BLC - 3D DNR - Motion Detection - Ethernet RJ45 10/100Mbps - Reset Key - IP67 protection for outdoor use - IK10 against vandalism - Metal - Power supply NOT included - MicroSD slot up to 256GB (not included) - 24 months warranty
DS-2CD1723G0-IZ_BANNER
POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Resolution:
This camera features 2.0MP 2MP 1080P FULL-HD real-time resolution! (1920x1080pixels)
Image sensor 1/2.9” 2Megapixel progressive scan CMOS.
Optics:
This camera has a 2.8-12 mm motorized Varifocal lens
H.265+ compression


What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 30M

This camera is also equipped with SMART IR technology.

Through this technology , the light emitted by the LEDs is adapted according to the object framed.


ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

256GB Micro SD slot ( NOT INCLUDED )

BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)
IP67 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.
Also equipped with TVS 2000V lightning protection

IK10:

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Data sheet

DS-2CD1723G2-IZ(2.8-12mm)

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)

General

Power

12VDC ±25%, 0.8A, max. 9.6 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5W

Material

Metal

Dimension

Ø141mm × 99.9mm (Ø5.6" × 3.9")

Package Dimensions

140mm × 140mm × 154mm (5.5" × 5.5" × 6.1")

Weight

Approx. 820g (1.8lb.)

With package weight

Approx. 1200g (2.6lb.)

Storage Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30°C to 60°C (-22°F to 140°F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark

Approve

EMC extension

FCC: 47 CFR Part 15, Subpart B CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7

Safety

UL: UL 62368-1 CB: IEC 62368-1: 2014+A11 CE-LVD: EN 62368-1: 2014/A11: 2017 BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protection

IP67:IEC 60529-2013,IK10:IEC 62262:2002

Further details

DS-2CD1723G0-IZ

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
