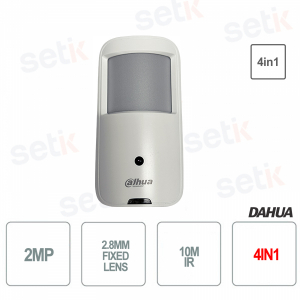

Cube Indoor camera HD CVI 2MP 4in1 2.8mm - Dahua

Cube Indoor camera HD CVI 2MP 4in1 2.8mm - Dahua
-58%

HD CVI camera for indoor surveillance Dahua HAC-HUM3200A Cube Camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable, 1080P FULL-HD 2MP , IR 2 Led up to 10 Meters, 2.8mm lens and 2MP image sensor CMOS. OSD Menu, BLC, HLC, Digital WDR, 2D-NR, Plastic .

Reference: HAC-HUM3200A

Brand: Dahua

EAN: 6923172544612

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CUBE CAMERA DAHUA FULL HD 2 MEGAPIXEL IR 10M - FIXED LENS

Prodotto Dahua Cube Camera dahua
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 1080P FULL HD - 2.8mm fixed lens
IR 2 LEDs 10m - Electronic Day/Night - OSD Menu - BLC, HLC, Digital WDR - 2D-NR
24 months warranty

Product details

Telecamera Bullet con 4 tecnologie in 1 Dahua
  • Cube Camera dahua
  • 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG Switchable
  • Technologies switchable via OSD Menu
  • Resolution: 2Megapixel 2MP FULL HD 1080P
  • 2.8mm Fixed Optics
  • IR 2 Leds 10Meters
  • Image sensor 2MP CMOS
  • Day/Night(electronic), BLC, HLC, DWDR
  • OSD Multilingual menu
  • Video Output: 1 Channel BNC high definition video output / CVBS (switchable)
  • Material: Plastic
  • 24 months warranty

Data sheet

model HAC-HUM3200A
Room
Image Sensor 2MP CMOS
Effective Pixels 1920(H)×1080(V)
Scanning System Progressives
Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio >65dB
Min Illumination 0.01 lux@F2.0 (B/W, 30IRE)
0 lux (Illuminator on)
Illumination Distance 10m (32.81ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
lens
LensType Fixed-focal
Mount Type M12
Focal Length 2.8mm
Max Openings F2.0
Angle Of View H: 105°; V: 58°; D: 118th
Iris type Fixed
Close focus distance

0.5m (1.64ft)

Video
Frame Rates

CVI: PAL: 1080p@25fps; NTSC: 1080p@30fps AHD: PAL: 1080p@25fps; NTSC: 1080p@30fps TVI: PAL: 1080p@25fps; NTSC: 1080p@30fps CVBS: PAL: 960H; NTSC: 960H

Resolution 1080p (1920×1080
Day/Night Color/B/W
BLC extension BLC; DWDR; HLC extension
wdr extension dwdr extension
White Balance Car; White balance area
Gain Control Auto/Manual
Noise reduction 2D NO
Smart IR Yes
Mirrors Yes
Privacy Masking Off/On (8 areas, rectangles)
Certifications
Certifications

CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B;

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Electrical
Power Supply 12VDC ±30%
power consumption Max 3.3 W (12 VDC, IR on)
environmental
Operating Consumption

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

<95% (RH), non-condensing

Storage condition –40°C to +60°C (–40°F to +140°F)
Storage Humidity <95% (RH), non-condensing
structure
Casing material Plastic
Dimensions 61.7mm × 58.1mm × 119.7mm (2.43" × 2.29" × 4.71")
Net Weight 0.12kg (0.26lb)
Gross Weight 0.19kg (0.42lb)
Installation Wall mount

Further details

4 tecnologie in 1 This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are Analogue , Ahd , Hdcvi and Hdtvi at the same time.

Tecnologia AHDTecnologia HDCVITecnologia HDTVI
Risoluzione 2MP 1080P FULL-HD

2MP resolution, means 5 times the resolution of a common D1 camera:
Image sensor 2MP CMOS

Ottica fissa 2.8mm This camera is equipped with a 2.8mm fixed lens

Menu OSD

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...

The OSD Menu is multi-language

Multi-Tech:

The camera can switch from HDCVI to HDTVI, AHD or Analog via OSD Menu

Funzione Day/Night

It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.
Esempio Funzione Day/Night

Funzione BLC compensazione luce

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Materiale con cui è stato creato il dispositivo This camera has a plastic body
24 mesi di garanzia

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
