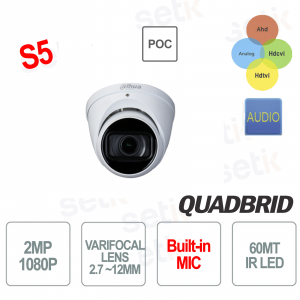

Dahua 2 MP 4in1 2.7mm-12mm IR 60 Dome PoC S5 camera

IN PROMOTION -61%

Dahua HAC-HDW1200T-ZA-POC-S5 outdoor camera with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, Power Supply Via POC 2Megapixel 2 MP resolution, Motorized lens 2.7mm ~ 12mm. Smart IR Illuminator 2 LED 60M , Day/Night (ICR), Microphone , BNC Video Output.

Reference: HAC-HDW1200T-Z-A-POC-S5

Brand: Dahua

EAN: 6923172520654

FIND INSTALLER

https://www.setik.biz/en/cameras/8626-dahua-hac-hdw1200t-z-a-poc-s5-dahua-2-mp-4in1-27mm-12mm-ir-60-dome-poc-s5-camera.html

€83.74

€214.72 -61%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

DAHUA 4IN1 VIDEO SURVEILLANCE CAMERA 2 MP - 2.7 MM~ 12MM - AUDIO - POC POWER SUPPLY - S5 VERSION

Dahua 4in1 outdoor camera - S5 version
4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 2 MP - Varifocal lens 2.7mm~12mm
Smart IR Illuminator 2 LEDs 60 MT - Day/Night (ICR) - Power Supply Via POC - IP67 Protection
Built-in microphone - Power supply NOT included - 24 months warranty

Product details

Telecamera Dome con risoluzione 2MP e ottica Varifocale 2.7mm~12mm

- S5 VERSION

- 4in1 dome camera - Dahua
- POC power supply

- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG

- Switchable technologies

- Resolution: 2Megapixel 2MP

- Varifocal lens 2.7 mm ~ 12mm

- Functions: Day/Night(ICR), BLC, HLC, AGC, DWDR

- Built-in microphone
- Smart IR Illuminator 2 LEDs 60MT

- Choice of CVI / TVI / AHD / ANALOG video output via 1 BNC port

- IP67 protection (dust / immersion)
- Suitable for indoor and outdoor environments

- Dimensions Φ122 mm × 104.8 mm ( Φ4.80" × 4.13" )

- 24 months warranty

Data sheet

model	HAC-HDW1200T-ZA-POC-S5
Room
Image Sensor	2MP CMOS
Max.Resolution	1920(H)×1080(V)
Pixels	2MP
Scanning System	Progressives
Electronic Shutter Speed	PAL: 1/25s–1/100,000s NTSC: 1/30s–1/100,000s
S/N Ratio	> 65dB
Minimum Illumination	0.02 Lux/F1.7, 30IRE, 0 Lux IR on
Fill Light Working Distance	60m (196.9ft)
IR On/Off Control	Car
IR LED Number	2 (IR Light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
lens
LensType	Motorized vari-focal
Auto Focus	N/A
Mount Type	φ14
Focal Length	2.7mm-12mm
Max. Openings	F1.7
Field of View	Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53°
Iris type	Fixed
Close Focus Distance	1.2m (3.9ft)
Video
Frame Rates	CVI: 1080p@25/30fps; 720p@25/30fps; HD: 1080p@25/30fps; 720p@25/30fps; TVI: 1080p@25/30fps; 720p@25/30fps; CVBS: 960H
Resolution	1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night	Auto switch by ICR
BLC extension	BLC/HLC/DWDR
White Balance	Auto/WB area
Gain Control	Car; manual
Noise reduction	2D NO
Smart IR	Yes
Mirrors	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Certification
Certifications	CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Outputs	One channel built-in mic
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply	POC (only CVI)/12V±30% DC
power consumption	Max6.4W (12VDC, IR on); PoC (AT)
environment
Operating Temperature	–30°C to +60°C (–22°F to 140°F); ﹤ 95% (non-condensing)
Storage Temperatures	–30°C to +60°C (–22°F to 140°F); ﹤ 95% (non-condensing)
Protection Grade	IP67
structure
Casing	Metal throughout the whole casing
Dimensions	Φ122mm × 104.8mm ( Φ4.80" × 4.13" )
Net Weight	0.59 Kg (1.3 lb)
Gross Weight	0.74 Kg (1.6 lb)

Further details

	POC - POWER OVER COAX: This new technology allows common coaxial cameras to be powered directly via the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of typical 12V power supplies, which have a decidedly greater loss. Below you will find a purely indicative table of Dahua:
	This camera is a FOUR HYBRID (4 Integrated Technologies) These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .
	This camera features 2Megapixel 2MP 1080P FULL-HD resolution
	This camera is equipped with a 2.7mm ~ 12mm Varifocal lens
	Infrared illuminator with 2 LEDs and maximum approximate range of 60Mt This camera is also equipped with SMART IR technology. Through this technology, the light emitted by the LEDs is adapted according to the object framed.
	This camera has a built-in microphone
	Allows you to adapt the lens to Night/Day vision
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations Click to enlarge
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	Protection level IP67 ( Dust / Immersion )
	12VDC power supply not included
	This product is covered by a 24 month guarantee.
