HYU-970 Hyundai camera - SF-IPD934CW-4P equivalent - IP POE - IR 30 meters for outdoor use - ColorView Series, for 24/7 color vision - IP67 protection - 1/3" 4MP CMOS sensor - 2.8 fixed lens mm - H.265+ Codec - Dual Stream Video -BLC, HLC, WDR 120dB, 3D-DNR - ROI - In aluminum - For video surveillance systems.
FIND INSTALLER

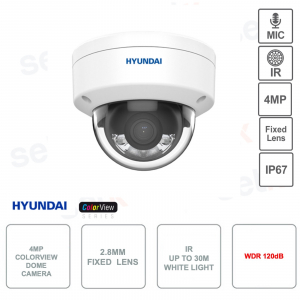

HYUNDAI COLORVIEW DOME CAMERA 4 MEGAPIXEL 2.8MM FIXED LENS - IR30 WHITE LIGHT - IP67 - PoE - HYU-970
ColorView Technology : 24/7 color vision - 1/3" CMOS sensor 4MP progressive 2560x1440 - 2,8mm Fixed Lens - H.265+ Smart Codec - Dual Stream - BLC, HLC, WDR 120dB, 3D-DNR - ROI to 1 area - IP67 protection - Aluminum body - Ideal for video surveillance systems.
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
PoE - Power over Ethernet The advantage of a PoE camera is obvious. It allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system. A PoE camera ensures constant voltages and simple installation. |
|
|
FIXED OPTICS This camera is equipped with a 2.8mm fixed lens |
 |
This camera features a resolution of 4Megapixel 4 MP! 1/3" CMOS image sensor |
|
|
IR ILLUMINATION IR illuminator and maximum range 30 meters in white light. |
 |
DAY/NIGHT Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. |
 |
BLC (Back Light Compensation) It is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from parking lots, Plates, Special lights, Entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
|
 |
IP67: Guarantees protection against dust and immersion |
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-970 |
|
1/3 4 megapixel CMOS image sensor |
|
Resolution: 4MP (2560x1440), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
|
Video compression H.265+, H.265, H.264+, H.264, H.264 and MJPEG |
|
Stream 1: 4MP (20fps), 1080P, 720P (25/30fps) |
|
Stream 2: 720P, VGA, Q720P (25/30fps) |
|
24h color mode |
|
0.001 lux F1.0 (color, AGC On), 0 lux with white light On |
|
White illumination: 30 meters |
|
2.8mm fixed lens |
|
Angle of view: 96° (H), 52° (V), 113° (D) |
|
Imaging modes: BLC, HLC, WDR 120dB, 3D-DNR |
|
1 fixed ROI zone for main stream |
|
Image rotation, saturation, brightness, contrast, sharpness, mirror mode, white balance and gain control adjustable via client software or web browser |
|
4 privacy masks |
|
Network interface: RJ45 (10/100M) self-adaptive |
|
Network Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, |
|
UPnP, IGMP, IPv6, UDP, QoS, Bonjour, FTP, 802.1X, SNTP |
|
ISAPI and SDK support |
|
Up to 32 users |
|
Support for IE, Chrome and Firefox browsers |
|
Plug&Play connection with NEXTGEN NVR |
|
Compatible with DDNS DEMES |
|
Power supply: 12V DC (±25%) / PoE (802.3af) |
|
Power Consumption: 5W (12V) / 6.5W (PoE) |
|
Operating temperature -30°C ~ +60°C |
|
Humidity: <95% (non-condensing) |
|
IP67 degree of protection |
|
Aluminum housing |
|
Dimensions: Ø121.5 x 97.6mm |
|
Weight: 500g |
