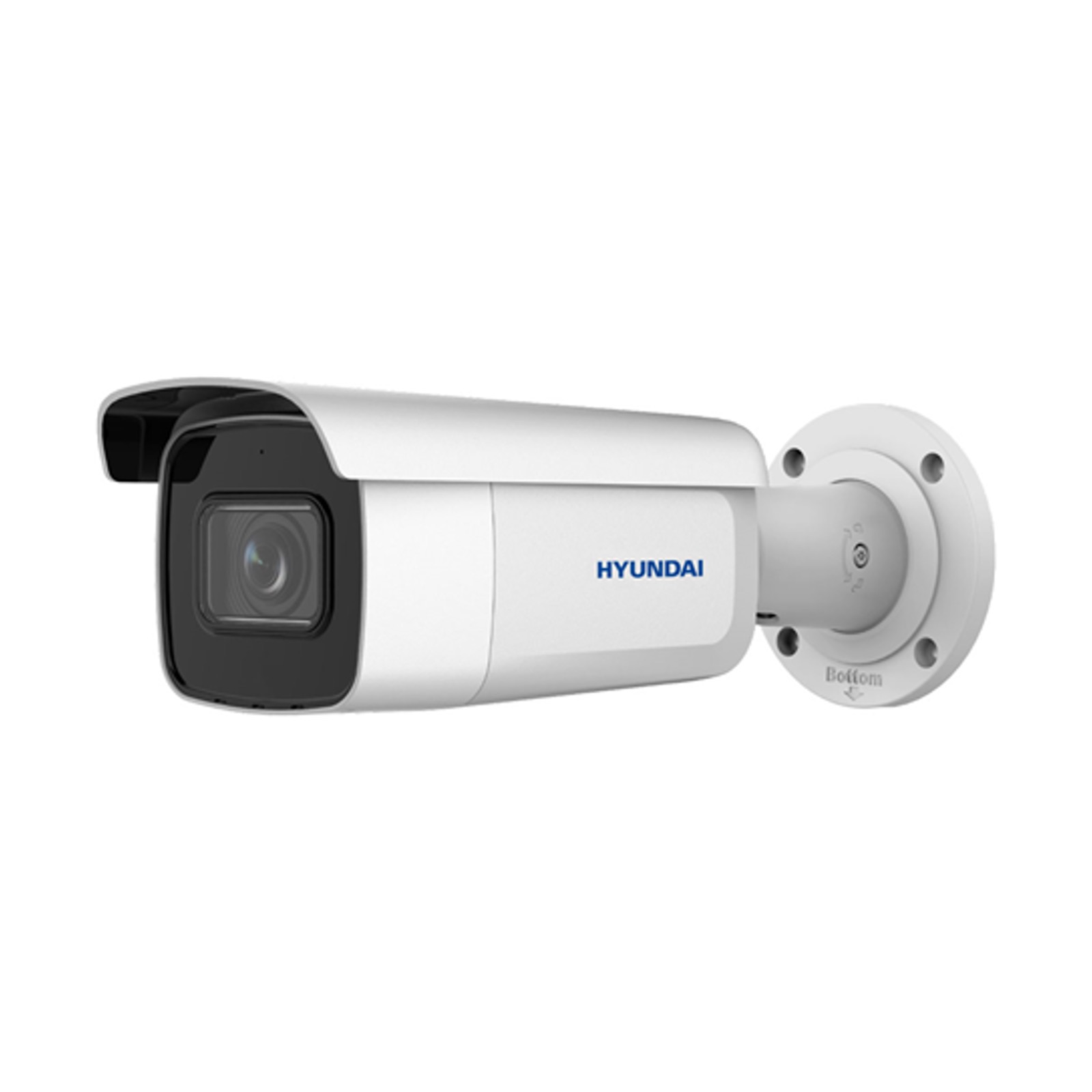

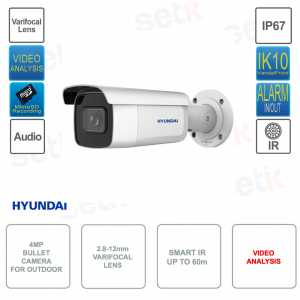

HYU-966 | 4MP ONVIF POE IP camera - With 2.8-12mm motorized varifocal lens - 4MP resolution - 4MP 1/3" CMOS sensor - Triple Stream - H.265+ Smart - IR 60m - WDR 120dB - BLC, HLC, WDR 120dB, 3D-DNR - Audio - Alarm - IP67 protection for outdoor use - Video Analysis - IK10 against vandalism - In aluminum - 256GB MicroSD slot - LAN RJ45 100M - For video surveillance systems.
FIND INSTALLER
OUTDOOR IP ONVIF® POE CAMERA 4MP IP POE ONVIF® - HYUNDAI - IR 60M - VIDEO ANALYSIS - AUDIO - ALARM - IP67 AND IK10 - HYU-966
1/3" CMOS 4MP - 2.8-12mm varifocal lens - Compression up to H.265+ - Triple Stream - Day/night(ICR) - WDR 120dB - BLC, HLC, WDR 120dB, 3D-DNR, ROI 1 zone - Audio 1in/1out - Alarm 1in/1out - RJ45 LAN 100M - In aluminum - IP67 and IK10 protection (for outdoor use and against vandalism) - 256GB MicroSD slot (not included) - Video Analysis : perimeter protection and face recognition - Extended 3 Year Hyundai Warranty!
Product details
|
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our website? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. | |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation | |
 |
This camera features a resolution of 4Megapixel 4 MP! 4MP 2688x1520p 1/3" CMOS sensor |
|
|
|
H.265+ H.265+ is the optimized implementation of H.265 codec using scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without strain the network. H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
 |
|
|
 |
This camera features a 2.8mm-12mm motorized varifocal lens | |
|
|
IR LED illuminator with a maximum range of about 60m
|
|
 |
This camera features intelligent video analytics features including: - Perimeter protection
|
|
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
|
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
|
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
|
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
 |
1 audio input and 1 audio output | |
 |
1 input and 1 alarm output | |
 |
Protection level IP67 ( Dust / Immersion ) |
|
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
|
 |
Slot for MicroSD memory cards up to 256GB (sold separately). | |
 |
|
|
 |
A 12VDC power supply is required for the operation of this camera (not included)  |
|
 |
This product is covered by a 3 Year Warranty! |
Data sheet
| HYU-966 |
|
1/3" 4 megapixel CMOS image sensor |
|
Resolution: 4MP (2688x1520), 1080P (1920x1080), 720P (1280x720), VGA (640x480), Q720P (640x360) |
|
Video compression H.265+, H.265, H.264+, H.264 and MJPEG |
|
Stream 1: 4MP, 1080P, 720P (25fps) |
|
Stream 2: VGA, Q720P (25fps) |
|
Stream 3: 1080P, 720P, VGA, Q720P (10fps) |
|
Day/night mode with removable mechanical filters (ICR) |
|
0.005 lux F1.6 (color, AGC On), 0 lux IR On |
|
IR illumination: 60 meters |
|
2.8~12mm motorized optics |
|
View Angle: 95.8°~29.2°(H), 50.6°~16.4°(V), 114.6°~33.4°(D) |
|
Image modes: BLC, HLC, WDR 120dB, 3D-DNR |
|
1 fixed ROI zone for main and secondary streams |
|
Image rotation, mirroring, privacy masks, saturation, brightness, contrast, sharpness, white balance and gain control adjustable via client software or web browser |
|
Perimeter protection: Line crossing detection and intrusion detection with classification of people and vehicles |
|
face detection |
|
1 input / 1 audio output |
|
1 input / 1 alarm output |
|
MicroSD card slot up to 256GB (card not included) |
|
Network interface: RJ45 (10/100M) self-adaptive |
|
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE |
|
Compliant with ONVIF® (S/G), ISAPI, SDK |
|
Up to 32 users and 6 simultaneous views |
|
Compatible with IE, Chrome and Firefox browsers |
|
Plug&Play connection with NEXTGEN NVR |
|
Compatible with DDNS DEMES |
|
Power: 12V DC (±25%) / PoE+ (802.3at) |
|
Consumption: 13W (12V) / 15W (PoE) |
|
Operating temperatures -30°C ~ +60°C |
|
Humidity: <95% (non-condensing) |
|
Degree of protection IP67 |
|
Vandal protection IK10 |
|
Aluminum casing |
|
Dimensions: 97.9 (W) x 93.1 (H) x 312.1 mm |
|
Weight: 1.39kg |
