Description Product Details Technical Sheet Further Details Download

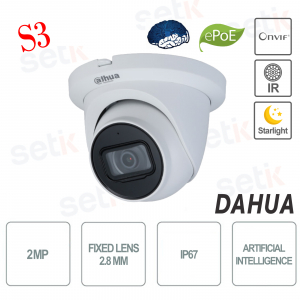

ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL - 2.8MM - WIZMIND ARTIFICIAL INTELLIGENCE - AUDIO and ALARM - S3 - DAHUA
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Outdoor PoE AI IP Camera - Dahua
- S3 Version
- Resolution 2Megapixel 2MP
- Fixed optics 2.8mm
- 1/2.8" CMOS sensor
- Video compression up to H.265+
- Triple Stream
- WDR 120dB - Defog - BLC, HLC, AWC, AGC, ROI, Privacy mask
- IR illuminator with 2 LEDs up to 50m
- Artificial Intelligence : Perimeter Protection / People Counting / Face Capture
- Standard Video Analysis: Scenery Change, Abandoned/Lost Objects
- Remote Viewing with DMSS / Cloud P2P
- Built-in microphone
- Audio and Alarm
- Micro SD memory slot (Up to 256GB - not included)
- IP67 protection (indoor / outdoor)
- Material: Metal
- Power supply NOT included
- 24 month warranty
Technical data sheet
| Model | IPC-HDW5241TM-ASE-S3 |
| Room | |
| Image Sensor | 1/2.8” CMOS |
| Effective Pixel | 1920 (H) × 1080 (V) |
| RAM/ROM | 1GB/4GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0007 lux@F1.6 (Color,30 IRE) 0.0004 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) |
| IR Distance | 50 m (164.04 ft) (IR) |
| IR On/Off Control | Auto; Manual |
| IR LEDs | 2 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation:0°–360° |
| Lens | |
| Lens Type | Fixed focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Openings | F1.6 |
| Field of View | H: 106°; V: 56°; D: 127° |
| Iris Control | Fixed |
| Fixed | 0.7 m (2.30 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD 3.0 | Less false alarm, longer detection distance |
| TO THE SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face, oneinch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
| People Counting | Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 1080p@1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 4 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bitrate Control | CBR/VBR |
| Video Bitrate | H.264: 32 kbps–12032 kbps H.265: 12 kbps–7424 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Lighting | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception |
| Network | |
| Ethernet | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 (Total bandwidth: 80M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Max. User Access | 20 Users |
| Management Software | Smart PSS, DSS, P2P |
| Smartphone | IOS, Android |
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| AlarmOutput | 1 channel out: 300mA 12V DC |
| Power | |
| Power Supply | 12VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 4.3W (12VDC); 5.5 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 8.2 W (12 VDC); 9.7W (PoE) |
| Environmental | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |

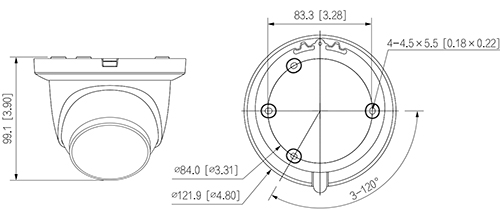

| Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 500g (1.10 lb) |
| Gross Weight | 770g (1.70 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
| Dahua's self-designed ePoE technology adopts advanced 2D-PAM3 modulation from physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable. Dahua ePoE technology provides a new way to realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs. |
| AI | Artificial Intelligence - Face recognition - Perimeter protection - People counting - Motion detection - Heat Map
|
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features a resolution of 2Megapixel 2 MP 1080P FULL-HD! |
| 1/2.8" Sony STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times higher than other products on the market) - Increased sensitivity when near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony IMX291 CMOS sensor, you can get color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. |
 | This camera features a 2.8mm fixed lens |
| Infrared illuminator with 2 warm light LEDs with a maximum range of 50m Smart IR Technology This camera also features SMART IR technology. |
 | Remote visibility on mobile using Dahua DMSS application. |
 | This camera is equipped with an on-board microphone |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 | Protection level IP67 (Dust / Immersion) |
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
