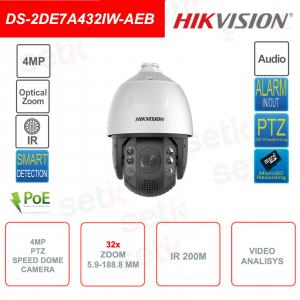

POE 4MP Speed Dome PTZ IP Camera - 5.9-188.8 mm - 32x Zoom - Video Analysis

-35%

Hikvision DS-2DE7A432IW-AEB IP PoE outdoor camera - Speed Dome 4.0MP - PTZ (Pan / Tilt / Zoom) - 32x Optical Zoom (5.9-188.8 mm lens) - CMOS 1/1.8" 4MP - H.265+ - Day&Night(ICR) - WDR 120dB - BLC - HLC - 3DNR - ROI - Defog - EIS - IR 200m - Alarm - Audio - Speaker - Micro SD slot ( up to 256GB - NOT INCLUDED ) - Hi-PoE - Video Analysis : Face detection / Perimeter protection - IP66 - IK10 - TVS 6kV - RJ45 100M - Material: ADC12.

Reference: DS-2DE7A432IW-AEB

Brand: Hikvision

EAN: 6931847127091

FIND INSTALLER

https://www.setik.biz/en/cameras/8508-hikvision-ds-2de7a432iw-aeb-poe-4mp-speed-dome-ptz-ip-camera-59-1888-mm-32x-zoom-video-analysis.html

€1,569.35

€2,414.38 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

Description Product Details Data Sheet Further Details Download

DS-2DE7A432IW-AEB | HIKVISION IP POE CAMERA - 4MP - ZOOM 32x - 5.9-188.8MM - OUTDOOR - H.265+ - IR 200M - NETWORK PTZ SPEED DOME - AUDIO - ALARM - SPEAKER - VIDEO ANALYSIS

Hikvision IP PoE Outdoor Network IR Speed Dome Camera - DS-2DE7A432IW-AEB
Resolution: 4.0MP - 32x Optical Zoom ( 5.9-188.8 mm ) - 1/1.8" CMOS - H.265+ Smart Codec - Triple Stream - IR 200m - Day/Night(ICR) - HLC -BLC - 3D DNR - EIS - ROI - Digital Defog - Motion Detection - Audio: 1in/1out - Built-in speaker - Alarm: 2in/1out - Video Analysis : Face detection + Perimeter protection - Ethernet RJ45 100M - Power supply NOT included - 256GB MicroSD slot ( not included ) - Protections : IP66/IK10/TVS 6000V - Material: ADC12 - 24 months manufacturer's warranty.

POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

It supports HI-POE standard

Resolution:
This camera features 4MP real-time resolution! (2560×1440)
Image sensor 1/1.8” 4MP 2560 × 1440p progressive scan CMOS

Optics:
This camera features 5.9-188.8 mm Varifocal lens (32x optical zoom)

Digital zoom: 16x.

PTZ:

PTZ camera:

Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Pan Speed	Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan	Yes
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 scan patterns
Power-off Memory	Yes
Park Action	Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning	Yes
PTZ Status Display	Yes
Freezing presets	Yes
Scheduled Tasks	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Scheduled Tasks

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Optics:
This camera features Varifocal lens 5.9-188.8 mm (Optical zoom 32)

Digital zoom: 16x.

H.265+ compression

What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 200m.

Video Analysis

This camera features advanced Video Analysis functions:
- Face recognition and detection
- Perimeter protection: line crossing, intrusion, entry/exit from the area.

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

Slot for 256GB Micro SD slot ( NOT INCLUDED )

Audio

1 Audio input and 1 Audio output

Integrated speaker, equipped on board with range up to approximately 30m.

Alarm:

2 inputs and 1 alarm output

BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Diet:

24VAC, max. 42W (including max. 18W for IR and max. 10W for heater);
Hi-PoE

Protection:
Protection from dust and temporary immersion. Suitable for outdoor environments (IP66)
Impact protection, ideal against vandalism: IK10
Lightning protection TVS6000V

Data sheet

DS-2DE7A432IW-AEB
Room
Image Sensor	1/1.8" progressive scan CMOS
Max.Resolution	2560×1440
Min Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/1s to 1/30000s
Slow shutter	Yes
Day & Night	IR cut filter
Zoom	25 × optical, 16 × digital
lens
Focal Length	5.9-188.8mm
Zoom Speed	Approx. 3.6 s
FOV extension	Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)
Openings	Max. F1.6
Focus	Auto, semi-auto, manual
Illuminator
Supplement Light Range	IR Distance: up to 200m
Supplement Light Type	IR
PTZ
Movement Range (Pan)	360°
Movement Range (Tilt)	-15° to 90° (auto flip)
Pan Speed	Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed	Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan	Yes
Presets	300
Patrol Scan	8 patrols, up to 32 presets for each patrol
Pattern Scan	4 scan patterns
Power-off Memory	Yes
Park Action	Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan	Audio	1 input (line-in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Reset	Yes
Built-in Speaker	1 built-in speaker with effective distance reaching max. 30 meters
Event
Basic Event	Motion detection, video tampering alarm, exception, alarm input and output
Smart Events	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
smart tracking	Manual tracking, auto tracking
Alarm Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Deep learning functions
Face Capture	Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
perimeter protection	Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power	24VAC, max. 42W (including max. 18W for IR and max. 10W for heater); Hi-PoE
Operating Condition	-30°C to 65°C (-22°F to 149°F). Humidity 90% or less (non-condensing)
Demist	Yes
Material	ADC12

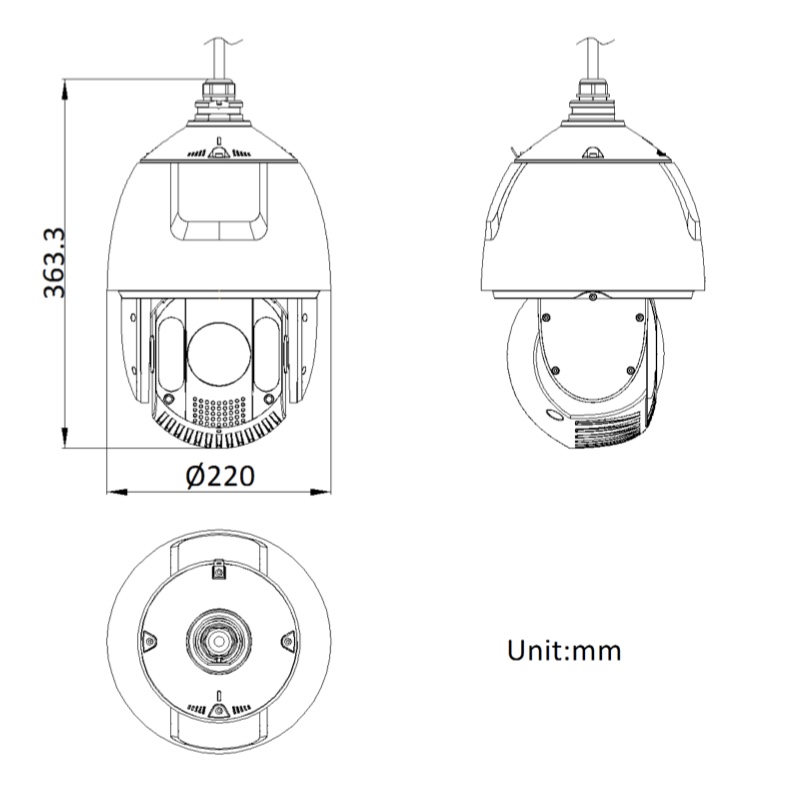

Dimension	Ø220mm × 363.3mm (Ø8.66" × 14.3")
Weight	Approx. 5kg (11.03lb.)
Approve
Protection	IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
EMC extension	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)

Safety	UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
