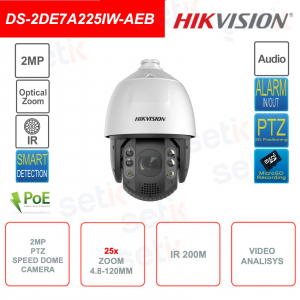

Hikvision DS-2DE7A225IW-AEB IP PoE outdoor camera - Speed Dome 2.0MP - PTZ (Pan / Tilt / Zoom) - 25X Optical Zoom (4.8 mm - 120 mm lens) - CMOS 1/2.8" 2MP - H.265+ - Day&Night(ICR) - WDR 120dB - BLC - HLC - 3DNR - ROI - Defog - IR 200m - Alarm - Audio - Speaker - Micro SD slot ( up to 256GB - NOT INCLUDED ) - Hi-PoE - Video Analysis : Face detection / Perimeter protection - IP66 - IK10 - TVS 6kV - RJ45 100M - Material: ADC12.
FIND INSTALLER
€1,222.01
€1,880.02 -35%
DS-2DE7A225IW-AEB | HIKVISION IP POE 2.0 MP 25X OUTDOOR CAMERA H.265 - IR 200M - NETWORK PTZ SPEED DOME - AUDIO - ALARM - SPEAKER - VIDEO ANALYSIS
Hikvision IP PoE Outdoor Network IR Speed Dome Camera - DS-2DE7A225IW-AEB
Resolution: 2.0 MP - 25X Optical Zoom ( 4.8 mm ~ 120 mm) - CMOS 1/2.8" - H.265+ Smart Codec - Triple Stream - IR 200m - Day/Night(ICR) - HLC -BLC - 3D DNR - ROI - Digital Defog - Motion Detection - Audio: 1in /1out - Integrated speaker - Alarm: 2in/1out - Video Analysis : Face detection + Perimeter protection - Ethernet RJ45 100M - Power supply NOT included - MicroSD 256GB slot ( not included ) - Protections: IP66/IK10/TVS 6000V - Material: ADC12 - 24 months manufacturer's warranty.
|
POE (Power Over Ethernet): It supports HI-POE standard |
||||||||||||||||||||||||||||
| Resolution: This camera features 2.0MP 2Megapixel real-time resolution! (1920×1080) Image sensor 1/2.8” 2MP FUll HD 1920x1080p progressive scan CMOS |
||||||||||||||||||||||||||||
|
Optics: Digital zoom: 16x. |
||||||||||||||||||||||||||||
|
PTZ: PTZ camera:
|
||||||||||||||||||||||||||||
|
Optics: Digital zoom: 16x. |
||||||||||||||||||||||||||||
H.265+ compression
A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
||||||||||||||||||||||||||||
|
Infrared IR Illuminator: |
||||||||||||||||||||||||||||
|
Video Analysis This camera features advanced Video Analysis functions: |
||||||||||||||||||||||||||||
|
HIK-CONNECT Hik Connect allows you to control the device remotely
|
||||||||||||||||||||||||||||
| ROI (Region Of Interest): The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
||||||||||||||||||||||||||||
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
||||||||||||||||||||||||||||
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
||||||||||||||||||||||||||||
|
MICRO SD SLOT: Slot for 256GB Micro SD slot ( NOT INCLUDED ) |
||||||||||||||||||||||||||||
|
Audio 1 Audio input and 1 Audio output Integrated speaker, equipped on board! |
||||||||||||||||||||||||||||
|
Alarm: 2 inputs and 1 alarm output |
||||||||||||||||||||||||||||
| BLC (Backlight Compensation): is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations |
||||||||||||||||||||||||||||
| AGC (Automatic Gain Control): integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
||||||||||||||||||||||||||||
|
3D-DNR: |
||||||||||||||||||||||||||||
|
Diet:
|
||||||||||||||||||||||||||||
|
Protection: |
Data sheet
| DS-2DE7A225IW-AEB | |
|
Room |
|
|
Image Sensor |
1/2.8" progressive scan CMOS |
|
Max.Resolution |
1920×1080 |
|
Min Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
1/1s to 1/30000s |
|
Slow shutter |
Yes |
|
Day & Night |
IR cut filter |
|
Zoom |
25 × optical, 16 × digital |
|
lens |
|
|
Focal Length |
4.8mm to 120mm |
|
Zoom Speed |
Approx. 3.6 s |
|
FOV extension |
Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele) |
|
Openings |
Max. F1.6 |
|
Focus |
Auto, semi-auto, manual |
|
Illuminator |
|
|
Supplement Light Range |
IR Distance: up to 200m |
|
Supplement Light Type |
IR |
|
PTZ |
|
|
Movement Range (Pan) |
360° |
|
Movement Range (Tilt) |
-15° to 90° (auto flip) |
|
Pan Speed |
Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
|
Tilt Speed |
Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
|
Proportional Pan |
Yes |
|
Presets |
300 |
|
Patrol Scan |
8 patrols, up to 32 presets for each patrol |
|
Pattern Scan |
4 scan patterns |
|
Power-off Memory |
Yes |
|
Park Action |
Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
|
3D Positioning |
Yes 1 input (line-in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
|
Reset |
Yes |
|
Built-in Speaker |
1 built-in speaker with effective distance reaching max. 30 meters |
|
Event |
|
|
Basic Event |
Motion detection, video tampering alarm, exception, alarm input and output |
|
Smart Events |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
|
smart tracking |
Manual tracking, auto tracking |
|
Alarm Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
|
Deep learning functions |
|
|
Face Capture |
Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
|
perimeter protection |
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
|
General |
|
|
Power |
24VAC, max. 42W (including max. 18W for IR and max. 10W for heater); Hi-PoE |
|
Operating Condition |
-30°C to 65°C (-22°F to 149°F). Humidity 90% or less (non-condensing) |
|
Demist |
Yes |
|
Material |
ADC12 |
|
Dimension |
Ø220mm × 363.3mm (Ø8.66" × 14.3") |
|
Weight |
Approx. 5kg (11.03lb.) |
|
Approve |
|
|
Protection |
IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection |
|
EMC extension |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
|
Safety |
UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
|
environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
