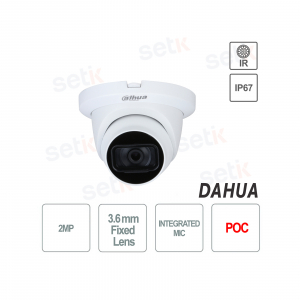

DOME Camera 4in1 2MP 3.6mm ir30 IP67 POC Microphone

DOME Camera 4in1 2MP 3.6mm ir30 IP67 POC Microphone
-58%

Dahua Outdoor camera HAC-HDW1200TLMQ-A-POC-S5 S5 version POC power supply with 4 technologies in 1 switchable CVI / CVBS / AHD / TVI, 2Megapixel 2 MP resolution, 3.6mm fixed lens and 2MP CMOS sensor - 1 LED Smart IR illuminator 30M, Day/Night (ICR), BLC, HLC, DWDR, AHD, TVI, privacy mask, BNC Video Output, Built-in Microphone, IP67



Reference: HAC-HDW1200TLMQ-A-POC-S5

Brand: Dahua

FIND INSTALLER

€54.31

€129.32 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA HD 2 MP 3.6MM VIDEO SURVEILLANCE DOME CAMERA - AUDIO - POC - IP67

Made by Dahua
Dahua Outdoor Camera HAC-HDW1200TLMQ-A-POC-S5 S5 Version POC Power with 4 Technologies in 1 Switchable CVI/CVBS/AHD/TVI
2Megapixel 2 MP resolution, 3.6mm fixed lens and 2MP CMOS sensor - Smart IR illuminator 1 LED 30M
Day/Night (ICR), BLC, HLC, DWDR, defog, privacy mask, BNC Video Output, IP67
Built-in microphone - 24 month warranty

Product details

Telecamera Dome con risoluzione 2MP e ottica Varifocale 2.7mm~12mm
- S5 Series
- 4in1 dome camera - Dahua
- POC feeding
- 4 Technologies in 1 switchable CVI/CVBS/AHD/TVI
- Resolution: 2Megapixel 2MP
- 2MP CMOS image sensor
- 3.6 mm fixed lens
- Functions: Day/Night(ICR), BLC, HLC, AGC, DWDR
- Built-in microphone
- Smart IR illuminator 1 LED 30MT
- BNC port
- IP67 protection (dust / immersion)
- 12V DC power supply not included
- Suitable for outdoor and indoor environments
- Dimensions φ109.9 mm × 88.1 mm ( φ4.33" × 3.47")
- 24 month warranty

Data sheet

Model HAC-HDW1200TLMQ-A-POC-S5
Room
Image Sensor 2MP CMOS
Effective Pixels 1920(H)×1080(V)
Pixels 2MP
Scanning System Progressives
Electronic Shutter Speed PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio >65dB
Min. Illumination 0.02Lux/F1.9, 30IRE, 0Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Car; manual
Illuminator Number 1
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed Lens
Mount Type M12
Focal Length 3.6mm
Max. Openings F1.9
Field of View 100°, H:84°,V:45°
Iris Type Fixed iris
Close Focus Distance 0.8 m (2.6 ft)
DORI Distance D: 49.7m(163.1 ft); W: 19.9m(65.3 ft); R: 9.9m(32.5 ft); I: 5m(16.4 ft)
Video
Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night Auto switch by ICR
BLC BLC/HLC/DWDR
White Balance Car/Area WB
Gain Control Car; manual
Noise Reduction 2D NO
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input One channel built-in mic
Power
Power Supply POC (only CVI)/12V±30% DC
Power consumption Max 2.9W (12V DC, IR on); POC (AF)
Environment
Operating Conditions -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Strorage Conditions -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Ingress Protection IP67
Structure
Casing Metal dome+metal cover+plastic decorative ring
Dimensions φ109.9 mm × 88.1 mm ( φ4.33" × 3.47")
Net Weight 0.35 kg (0.8 lb)
Gross Weight 0.46 kg (1.0 lb)

Further details

POC - POWER OVER COAX:

This new technology allows common coaxial cameras to be powered directly via the video cable, over which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even before on old analog telephones.

The distance coverage of this technology depends on the quality of the cable and the power required by the camera, in any case the guaranteed distances are greater than those of typical 12V power supplies, which have a decidedly greater loss.

Below you will find a purely indicative table from Dahua:

4 tecnologie in 1

4 TECHNOLOGIES IN 1:

This camera features 4 technologies in 1 : HDTVI / HDCVI / AHD / CVBS interchangeable.

Tecnologia HDTVITecnologia HDCVITecnologia AHD

Switch Technologies:

Technologies switchable via DIP SWITCH

1080P HDCVI Bullet Camera HAC-HDW1200M

This camera features a resolution of 2Megapixel 2MP 1080P FULL-HD

2MP" CMOS sensor

Ottica fissa This camera is equipped with a 2.8mm fixed lens
Illuminatore IR fino a 80mt

Infrared illuminator with 1 LED and approximate maximum range of 30m
This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object framed.

Questo DVR presenta ingressi / uscite audio This camera features a built-in microphone

This camera has 1 BNC Video Output

Allows you to adapt the lens to Night/Day vision

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entries or exits from car parks, license plates, particular lights, entrances with shots from the inside towards the outside, etc.) the compensation of the light is one of the most complex operations possible, the BLC function allows discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

Digital Defog
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Downloads

Download the English brochure
Schema dettagliato con le dimensioni della telecamera HAC-HDW1200TMQ-Z-A-S5
