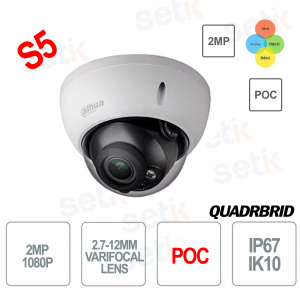

Dahua 4in1 2MP Motorized Camera - POC - S5 Version

Dahua 4in1 2MP Motorized Camera - POC - S5 Version
BEST PRICE -59%

Dahua HAC-HDBW1200R-Z-S5 camera S5 VERSION with 4 technologies in 1: HDCVI / HDTVI / AHD / ANALOG, POC power supply, 2Megapixel 1080P resolution, 2.7-12mm varifocal lens with motorized zoom and CMOS sensor Smart IR illuminator up to 30Meters , Digital WDR , Day/Night (ICR), CVBS Video Output Switchable, IP67 & IK10 Protection.

Reference: HAC-HDBW1200R-Z-POC-S5

Brand: Dahua

EAN: 6923172520463

FIND INSTALLER

€92.54

€225.70 -59%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


4IN1 2MEGAPIXEL DOME CAMERA - DIGITAL WDR - S5 VERSION - POC POWER SUPPLY - DAHUA

Prodoto Dahua Motorized 4in1 Dome Camera - S5 Version - POC power supply - Dahua
4 Technologies in 1: CVI / TVI / AHD / ANALOG - 2Megapixel 1080P - 2.7-12mm varifocal lens -
2MP CMOS sensor - IP67 - IK10 - Digital WDR
BNC/CVBS Video Output (Switchable) - Power supply not included - 24 months warranty

Product details

Telecamera Dome con risoluzione 2MP 4K ULTRA HD e ottica varifocale 2.7-12mm con zoom motorizzato.  IP67, 120dB WDR, IK10
- S5 version
- Dome 4in1 camera
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
- Technologies switchable via dip switches on coaxial cable
- Image sensor 1/2.7" CMOS
- 2 Megapixel 1080P resolution
- 2.7-12mm varifocal lens with motorized zoom
- Day/Night(ICR), BLC / HLC
-DWDR extension
- Smart IR illuminator with a range of about 30 meters
- IP67 protection ( Dust / Immersion )
- IK10 protection (Vandal acts)
- Material: Metal and Plastic
- POC power supply (CVI only)/12V±30% DC
- Dimensions: φ122.0mm × 88.9mm (φ4.80" × 3.50")
- 24 months warranty

Data sheet

model HAC-HDBW1200R-Z-POC-S5
Room
Image Sensor 2MP CMOS
Effective Pixels 1920(H)×1080(V)
Scanning System Progressives
Electronic Shutter Speed

PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio >65dB
Minimum Illumination 0.02Lux/F1.7, 30IRE, 0Lux IR on
Fill Light Working Distance 30m (98.4ft)
IR On/Off Control Car
IR LED Number 2
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°
lens
LensType Motorized vari-focal
Auto Focus N/A
Mount Type φ14
Focal Length 2.7mm-12mm
Max. Openings F1.7
Field of View Diagonal: 38°– 125°
Horizontal: 33°–102°
Vertical: 19°– 53°
Iris type Fixed iris
Close Focus Distance

1.2m (3.9ft)


Video
Frame Rates CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
HD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H
Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480)
Day/Night Auto switch by ICR
BLC extension BLC/HLC/DWDR
White Balance Auto/WB area
Gain Control Car; manual
Noise reduction 2D NO
Smart IR Yes
Mirrors Yes
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port
Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power
Power Supply

POC (only CVI)/12V±30% DC

power consumption

Max5.2W (12VDC, IR on); PoC (AT)

environment
Operating Temperature

–30°C to +60°C (–22°F to 140°F); ﹤ 95% (non-condensing)

Storage Temperatures

–30°C to +60°C (–22°F to 140°F); ﹤ 95% (non-condensing)

Protection Grade

IP67, IK10

structure
Casing

Plastic dome cover+metal upper casing+metal pedestal

Dimensions

φ122.0mm × 88.9mm (φ4.80" × 3.50")

Net Weight 0.34Kg (0.7lb)
Gross Weight

0.51Kg (1.1lb)

Further details

Tecnologia Quadribrida

This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

Switch Technologies:

The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on coaxial cable

POC - POWER OVER COAX:

This new technology allows common coaxial cameras to be powered directly via the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones.

The coverage in terms of distance of this technology depends on the quality of the cable and the power supply required by the camera, in any case the guaranteed distances are greater than those of typical 12V power supplies, which have a decidedly greater loss.

Below you will find a purely indicative table of Dahua:

Risoluzione Full-HD 1920x1080 This camera has a resolution of 1080p:
MAX. 25/30fps@1080P

Ottica varifocale 3.7-11mm This camera features 2.7-12mm varifocal lens with Motorized Zoom

Optics Demo Video:



Illuminatore IR fino a 30mt

Infrared illuminator with 2 leds with an approximate maximum range of 30Mt

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

Menù OSD

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...

The OSD Menu is multi-language

Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

Protezione IK10 contro atti vandalici

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Schema livelli protezione antivandalo

WDR Ultra a 120dB ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Esempio vantaggi WDR
Funzione Day/Night Allows you to adapt the lens to Night/Day vision

Funzione Day/Night e i suoi vantaggi

IR CUT FILTER The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
Funzione BLC compensazione luce BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shooting from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

Esempio Funzione BLC con vantaggi
Click to enlarge

Funzione AGC Automatic Gain Control The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Materiale con cui è stato creato il dispositivo This camera was made of Plastic and metal.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Schema dimensioni telecamera videosorveglianza HAC-HDBW1200R-Z-2712-S5 Dahua
