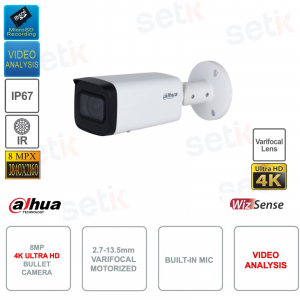

POE ONVIF® Bullet IP Camera - 8MP - 2.7-13.5mm - Video Analysis

POE ONVIF® Bullet IP Camera - 8MP - 2.7-13.5mm - Video Analysis
-58%

POE ONVIF IP camera - Dahua - IPC-HFW2841T-ZS - 8MP resolution - Smart IR 60m 4 LED - CMOS 1/2.7" 8MP 4K Ultra HD - 2.7-13.5mm motorized varifocal lens - Video Analysis : perimeter protection and smart search - H .265+ - Dual Stream - HLC - BLC - WDR 120DB - AGC - 3DNR - ROI - Event alarm - RJ45 Ethernet (100M) - Power supply 2.7 W (12 VDC) / 3.6 W (PoE) - IP67 - For outdoor use - Metal .

Reference: IPC-HFW2841T-ZS

Brand: Dahua

EAN: 6923172581891

FIND INSTALLER

€322.30

€767.38 -58%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


ONVIF® POE IP CAMERA - 8MP 4K ULTRA HD - 2.7-13.5MM LENS - STARLIGHT - VIDEO ANALYSIS - DAHUA - IPC-HFW2841T-ZS

Made by Dahua
Outdoor IP camera ONVIF® PoE Bullet - 8MP - Dahua - IPC-HFW2841T-ZS
8MP resolution - 1/2.7" STARLIGHT CMOS sensor (for 24/7 color vision, even at night!) - 2.7-13.5mm motorized varifocal lens - H.265+ compression - Dual Stream Video - Smart IR up to 60m with 4 LEDs - Video Analysis: Perimeter protection, Smart Search - Event alarm - WDR 120dB - Day/Night (ICR) - 3DNR - AWB - AGC - BLC - HLC - Mirror - Privacy Masking - MicroSD slot 256GB (sold separately) - RJ45 100M - Power supply 2.7 W (12 VDC) / 3.6 W (PoE) (power supply not included) - 24 months warranty.

Product details

Telecamera IP Bullet con risoluzione 4MP e Ottica Fissa 2.8mm.  IR LED 30MT Smart H.265, Video Analisi, Slot microsd
  • Outdoor ONVIF® PoE IP camera - Dahua - IPC-HFW2841T-ZS
  • Image resolution: 8MP 4K Ultra HD 3840x2160p progressive scan
  • 1/2.7" CMOS image sensor with STARLIGHT technology
  • Starlight technology: color night vision
  • Motorized varifocal lens 2.7-13.5mm
  • Dual stream video
  • Video Compression: Smart Codec H.265+
  • WDR(120dB) , Day/Night (ICR), 3DNR, AWB, AGC, BLC, OSD, HLC, Mirror Mode, Privacy Masks
  • Smart IR Illuminator 4 LEDs 60m
  • Alarm linked to events
  • Video Analysis: Perimeter Protection, Smart Search
  • IP67 protection (Dust/Immersion), ideal for outdoor use
  • Power adapter 2.7 W (12 VDC) / 3.6 W (PoE) (Power adapter sold separately)
  • PoE power supply supported
  • MicroSD slot (Max 256GB not included)
  • RJ45 10/100M Ethernet LAN
  • Dimensions: 238.5mm × 90.7mm × 90.7mm
  • Net weight: 740g
  • Operating temperature: –30 °C to +60 °C
  • Housing: made of metal
  • 24 months warranty

Data sheet

IPC-HFW2841T-ZS

Room

Image Sensor

1/2.7" CMOS

Max.Resolution

3840(H)×2160(V)

ROM

128MB

RAM

256MB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

0.008 lux@F1.5 (Color, 30IRE)
0.0008 lux@F1.5 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>56dB

Illumination Distance

60m (196.85ft) (IR)

Illuminator On/Off Control

Car; manual

Illuminator Number

No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMDs; security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDKs and APIs

Yes

NetworkProtocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB); NOS

Browsers

IE; Chrome; firefox

management software

Smart PSS; DSS; DMSS extension

Mobile Clients

iOS; android

Cyber Security

configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12VDC/PoE (802.3af)

power consumption

Basic: 2.7W (12VDC); 3.6W (PoE);

Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 8.3 W (12 VDC); 9.6W (PoE)

environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

≤95%

Storage Temperatures

–40°C to +60°C (–40°F to +140°F)

Storage Humidity

≤95%

Protection

IP67

structure

Casing material

Metal

Product Dimensions

238.5mm × 90.7mm × 90.7mm (9.39" × 3.57" × 3.57") (L × W × H)

Net Weight

0.74kg (1.63lb)

Gross Weight

0.98kg (2.16lbs)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports Onvif version

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

1/2.7" CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode
With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

4K Ultra HD Resolution

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

Progressive scan resolution: 3840x2160p

This camera has an 8Mpx 3480x2160 resolution

This camera features 8MP ULTRA HD resolution!

Motorized varifocal lens

2.7-13.5mm motorized varifocal lens!


This camera features VIDEO ANALYSIS (IVS):

- Perimeter protection
- Smart Search

Attraversamento linea

Illuminatore IR 20 MT

Smart IR 4 LED illuminator with range up to 60 meters!

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.
Tecnologia Smart IR

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Funzione Day/Night. Permette di adatta la lente alla visione notte

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
Immagine che evidenzia la funzione Day/Night

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC extension

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recovery turns out to be difficult (entrances or exits of car parks, recovery of license plates, presence of particular lights etc...).

MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb (Not Included)

Protezione IP67 contro polveri e immersioni

Protection level IP67 ( Dust / Immersion )

Ideal product for outdoor use!

12VDC_Supply

Device Power:
2.7W (12VDC) / 3.6W (PoE)

Power supply not included.

Italian Guarantee icon This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Dimensions IPC-HFW2431S-S-S2
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
