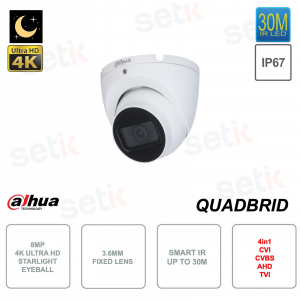

4K 8MP Eyeball camera - 3.6mm lens - 4in1 - Smart IR30m - IP67 for outdoor use

4K 8MP Eyeball camera - 3.6mm lens - 4in1 - Smart IR30m - IP67 for outdoor use
-58%

Dahua - Eyeball camera - Outdoor - 4K Ultra-HD 3840x2160p resolution - HAC-HDW1800TLM - 3.6mm fixed lens - 4K 3840x2160p CMOS sensor - 4 technologies in 1: CVI/CVBS/AHD/TVI switchable via BNC port - Smart IR illumination 30m - DWDR - Day/Bight(ICR) - AGC - AWB - BLC - 2DNR - Mirror Mode - Privacy Masks - IP67 protection for outdoors - In metal.



Reference: HAC-HDW1800TLM

Brand: Dahua

FIND INSTALLER

€72.76

€173.24 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


EYEBALL 4K 8MP OUTDOOR CAMERA - 4IN1 - 3.6MM LENS - SMART IR 30M - DWDR - DAHUA - HAC-HDW1800TLM

Made by Dahua
Dahua 4in1 outdoor camera - 4K series - HAC-HDW1800TLM
4in1: HDCVI / HDTVI / AHD / ANALOG switchable - 8Megapixel 4K - 3.6mm fixed lens - CMOS 4K
Smart IR illuminator 30MT - Day/Night (ICR) - DWDR - AGC - 2DNR - In metal - IP67 outdoor protection against dust and splashes -
Power supply NOT included - 24 months warranty

Product details

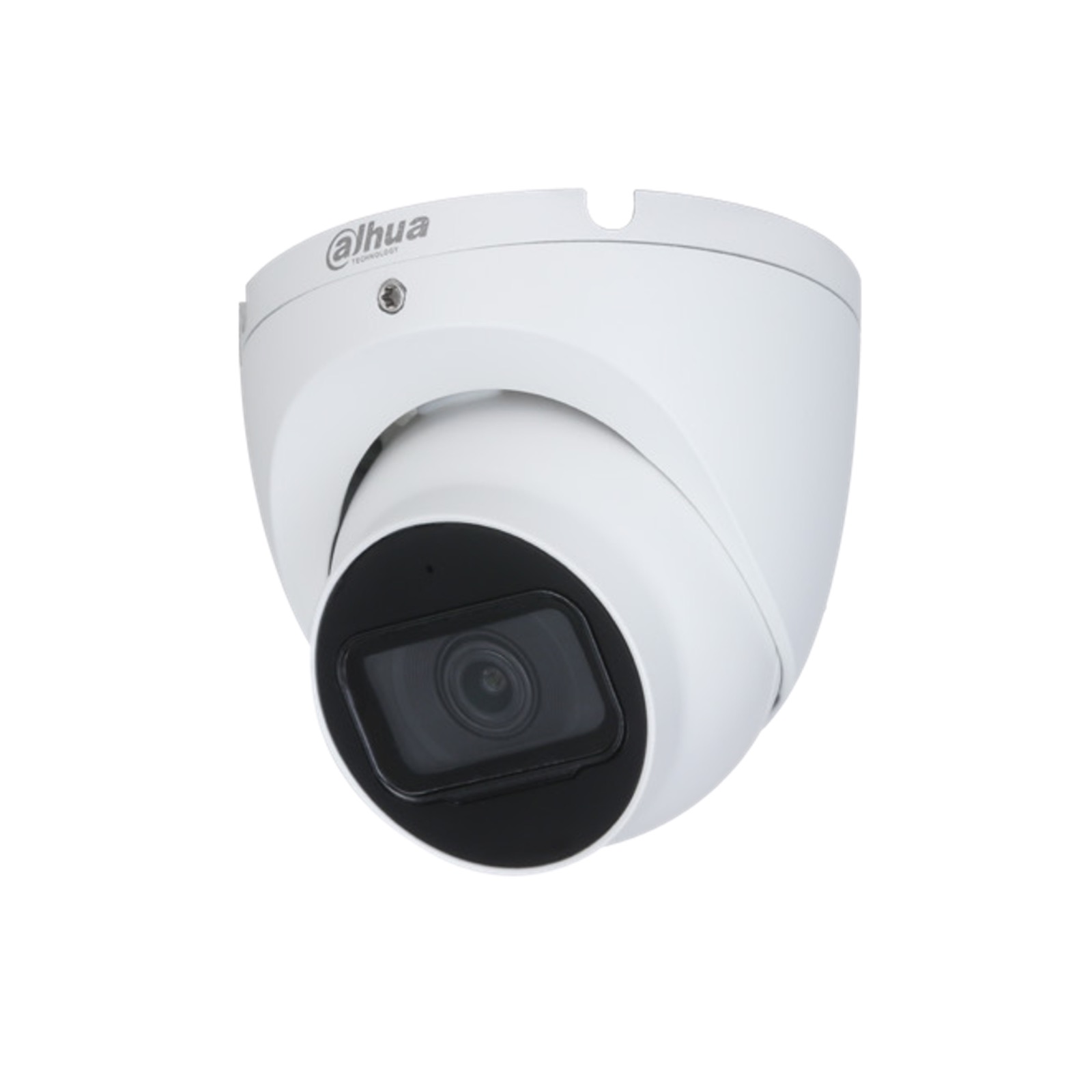

Telecamera Dome con risoluzione 8MP e ottica fissa 2.8mm

- Dahua outdoor surveillance camera - HAC-HDW1800TLM
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable via BNC port
- Resolution: 4K ULTRA-HD up to 8Megapixel
- 4K CMOS image sensor
- 3.6mm fixed lens
- Functions: Day/Night(ICR), BLC, HLC, AGC, AWB
-DWDR extension
- OSD via coaxial (4K/8MP video up to 700 meters)
- Smart IR LED 30M illuminator
- Choice of CVI / TVI / AHD / ANALOG video output via 1 BNC port
- 12V DC power supply not included
- Suitable for indoor and outdoor environments
- Metal casing
- IP67 protection (indoor/outdoor)
- Dimensions φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
- Operating temperature: –40°C to +60°C (
- Net weight: 0.33Kg
- 24 months warranty

Data sheet

HAC-HDW1800TLM

Room

Image Sensor

4K CMOS

Max.Resolution

3840 (H )× 2160 (V)

Pixels

8MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25s–1/100,000s
NTSC: 1/30s–1/100,000s

S/N Ratio

> 65dB

Min Illumination

0.03Lux/F2.0, 30IRE, 0Lux IR on

Illumination Distance

30m (98.4ft)

Illuminator On/Off Control

Car; manual

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

lens

LensType

Fixed lens

Mount Type

M12

Focal Length

3.6mm;

Max. Openings

F2.0

Field of View

H:87° W:47° D:104°"

Iris type

Fixed

Close Focus Distance

1.9m (6.2ft)

Video

Video Frame Rate

CVI:
PAL:4K@25fps; 4K@15fps; 5M@20fps; 4M@25fps;
NTSC:4K@30fps; 4K@15fps; 5M@20fps; 4M@30fps;
AHD:
PAL: 4K@15fps;
NTSC:4K@15fps;
TVI:
PAL: 4K@15fps;
NTSC:4K@15fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

4K (3840×2160);
5M (2592×1944);
4M (2560×1440);
960H (960×576/960×480)

Day/Night

Auto switch by ICR

BLC extension

BLC/HLC/DWDR

wdr extension

dwdr extension

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise reduction

2D NO

Smart Lighting

Yes

Mirrors

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4, EN62368-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

power consumption

Max 4.3W (12V DC, IR on)

environment

Operating Temperature

–40°C to +60°C (–40°F to 140°F); < 95% (noncondensing)

Storage Temperatures

–40°C to +60°C (–40°F to 140°F); < 95% (noncondensing)

Protection Grade

IP67

structure

Casing

Metal throughout the whole casing

Room Dimensions

φ94.0mm × 85.7mm (φ3.70" × 3.37")

Net Weight

0.33kg (0.73lb)

Gross Weight

0.47kg (1.04lb)

Further details

Tecnologia Quadribrida

This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.
Questa telecamera ha una risoluzione 8Mpx 3480x2160

This camera has a resolution of 8Megapixel 4K ULTRA-HD

Image sensor 1/2.7" CMOS

Ottica fissa This camera features a 3.6mm fixed lens
Illuminatore IR fino a 50mt

Infrared illuminator with approximate maximum range of 30Mt

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted according to the object framed.

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more...
The OSD Menu is multi-language and can be managed both via DVR

Multi-Tech:

The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog)
The technology switch is NOT automatic.
It is necessary to enter the XVR OSD menu and select the technology to be used.

DWDR function

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure

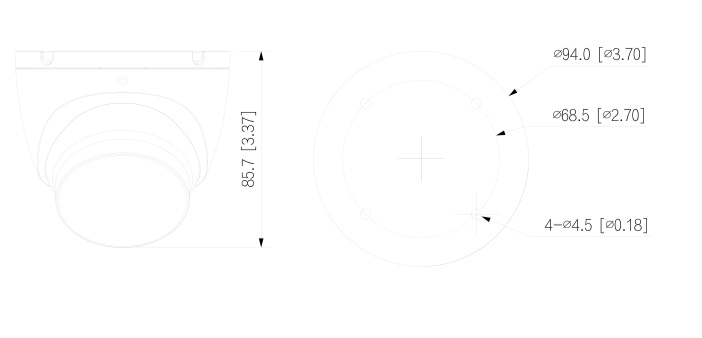

Schema dettagliato con le dimensioni della telecamera HAC-HDW1801M Dahua
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
