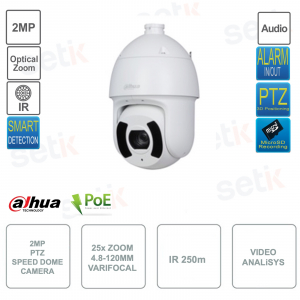

SD6CE225DB-HNY Dahua - PTZ IP POE ONVIF Camera - 2MP Full HD Resolution - 1/2.8" CMOS - 25x Zoom - 4.8-120mm Optics - IR 250m - H.265+ Codec - Triple Stream - WDR 120dB - 3DNR - Defog - BLC - HLC - AWB - ROI - 16x digital zoom - Audio - Alarm - RJ45 Ethernet - 1 BNC analogue channel - 256GB MicroSD slot (not included) - Protections: IP67, IK10, TVS 8kV - Power supply and bracket included - VIDEO ANALYSIS : SMD, Face recognition, Perimeter protection.
FIND INSTALLER
€883.85
€2,155.74 -59%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
IP POE SPEED DOME PTZ CAMERA - 2 MEGAPIXEL 25X - STARLIGHT - AUTO TRACKING - IR 200M - DAHUA
Product details
- ONVIF® POE Speed Dome PTZ IP camera - Dahua - SD6CE225DB-HNY
- 2Megapixel 2MP 1080P FULL-HD resolution
- 1/2.8" STARVIS™ CMOS sensor with Starlight technology
- Starlight: Thanks to the sensor, color shooting even at night
- H.265+
- Triple Stream
- 25x Optical Zoom (4.8mm~120mm) + 16x digital zoom
- Defog, DWDR, EIS, ROI, Day/Night(ICR), Motion Detection
- IR illuminator 6 LEDs 250m
- Video Analysis: Face detection, Perimeter protection, SMD
- Pan Rotation : Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180°
- Audio: 1 input + 1 output
- Alarm: 7 inputs + 2 outputs
- RS-485 port
- Analog BNC video output
- IP67 protection (Dust / Immersion)
- IK10 protection (from impacts, ideal against vandalism)
- TVS8kV lightning protection
- MicroSD slot (Max 256GB - not included)
- Dimensions: 337.4mm × Φ209.1mm
- Operating temperature: –40 °C to +70 °C
- Net weight: 5.8Kg
- Accessories included: Wall bracket, power supply.
- 24 month warranty
Data sheet
| SD6CE225DB-HNY | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8"CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixels | 2 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 512MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1 s–1/30,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | Color: 0.005 lux@F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 250 m (656.17 ft) (IR) | 24VDC/2.5A ±25% | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 14.0W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤ 95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67, IK10, TVS 8000V lightning proof; surge protection; voltage transient protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 337.4 mm × Φ209.1 mm (13.28" × Φ8.23") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 5.8 kg (12.79 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 9.4 kg (20.72 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High-PoE) |
 | Supports Intelligent 3D Positioning with DH-SD protocol. In addition to movement on the camera axis, this system also allows positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Pan: 0° to 360° endless - Tilt: –20° to +90°, auto flip 180° Manual Control Speed: Pan: 0.1°/s–200°/s - Tilt: 0.1°/s–120°/s Preset Speed: 300 Presets: 300 Tour: 8 (up to 32 presets per tour) Patterns : 5 Scan : 5 |
 | This camera has a resolution of 2 Megapixels 1080P FULL HD |
 | 25x Optical Zoom (4.8-120mm) + 16x Digital Zoom |
| 1/2.8" CMOS STARVIS™ sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when you enter night mode, color vision becomes black/white. With the SENSOR present, night shots will be clear and in color |
| Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | This camera provides VIDEO ANALYSIS / SMART DETECTION functions: |
 | This camera features the AUTO TRACKING function. |
 | This camera is equipped with a 6 LED IR illuminator with a maximum range of approximately 250m |
 | This camera has 1 Audio Input + 1 Audio Output |
 | This camera has 7 Alarm Inputs + 2 Alarm Outputs |
 | RS 485 for PTZ Commands (Remotely Controlled Cameras) |
 | Day/Night: allows you to adapt the lens to night/day vision, and the related automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | Latest function present ONLY in Sony Effio-V, allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", therefore the quality is set during the recording phase. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to guarantee reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus guaranteeing greater image definition.  |
 | This camera features EIS function. The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 | Possibility to insert Micro SD ( Max 256GB - not included ) |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism
|
 | This product is covered by a 24 month warranty. |
