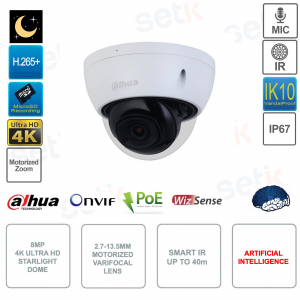

Dahua Camera - IPC-HDBW2841R-ZS - IP POE ONVIF Dome - 4K UltraHD 8MP Resolution - 2.7-13.5mm Motorized Varifocal - CMOS 1/2.7" 8MP Starlight - Smart Codec H.265+ - Dual Stream - Smart IR 2 LED up to 40m - Artificial Intelligence : SMD Plus / Smart search / Perimeter Protection - HLC - BLC - WDR 120dB - 3DNR - Mirror - Privacy Masking - Day/Night (ICR) - ROI - Event alarm - Integrated microphone - MicroSD slot up to 256GB (not included) - IP 67 and IK10 outdoor protection - Metal body.
FIND INSTALLER
€307.44
€732.00 -58%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
POE IP CAMERA ONVIF® 8MP 4K UltraHD - DOME WITH 2.7-13.5MM LENS - ARTIFICIAL INTELLIGENCE - MICROPHONE - IP67 AND IK10 PROTECTION - DAHUA - IPC-HDBW2841R-ZS
4K Ultra HD resolution 8MP - Motorized varifocal lens 2.7-13.5mm - CMOS 1/2.7" 2MP - H.265+ Smart Codec - Dual Stream Video - Smart IR 40m with 2 LEDs - Day/Night (ICR) - HLC - BLC - Day/Night(ICR) - 3DNR - Mirror Mode - Privacy Masking - WDR 120dB - Artificial intelligence : intelligent search / perimeter protection - 256GB MicroSD slot (sold separately) - Microphone - 12V DC 1A power supply (not included) - 24 hour warranty months
Product details
- Outdoor IP camera ONVIF® PoE Dome - Dahua - IPC-HDBW2841R-ZS
- Resolution: 4K UltraHD 8MP 3840x2160p
- 1/2.7" Progressive Scan CMOS Image Sensor with Starlight Technology!
- Starlight technology: Color vision, even in night mode!
- 2.7-13.5mm varifocal motorized lens
- Video compression: H.265+ Smart Codec
- Dual Stream
- Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Smart IR illuminator with a maximum range of 40m with 2LEDs
- Remote Visibility. Support DMSS Application (The Best CCTV Software for Mobile) .
- Artificial Intelligence: Smart Seacrh and Perimeter Protection
- MicroSD slot (Max 256GB - sold separately)
- RJ45 100M Ethernet network interface
- IP67 Protection (Dust/Immersion)
- IK10 protection (protection against vandalism
- Material: metal shell
- Dimensions: 93.4mm × Φ122mm (3.68" × Φ4.80")
- Product net weight: 0.50 kg
- Operating temperature: –40 °C to +60 °C
- 24 Months Italian Warranty
Data sheet
| IPC-HDBW2841R-ZS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.7" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max.Resolution | 3840(H)×2160(V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 256MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressives | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min Illumination | 0.008 lux@F1.5 (Color, 30IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | >56dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 40m (131.23ft) (IR) No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; external alarm (Only - ZAS supports); SMDs; security exception | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDKs and APIs | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
NetworkProtocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 20 (Total bandwidth: 48M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 256GB); NOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browsers | IE; Chrome; firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
management software | Smart PSS; DSS; DMSS extension | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Clients | iOS; android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio inputs | 1 channel (RCA port) (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Outputs | 1 channel (RCA port) (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Inputs | 1 channel in: 5mA 3V–5 VDC (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output | 1 channel out: 300mA 12 VDC (Only - ZAS supports) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12VDC/PoE (802.3af) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
power consumption | Basic: 2.7W (12VDC); 3.4W (PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –30°C to +60°C (–22°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperatures | –40°C to +60°C (–40°F to +140°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | ≤95% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67; IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 93.4mm × Φ122mm (3.68" × Φ4.80") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.50kg (1.10lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.66kg (1.46lbs) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
 | This camera has a resolution of 8Mpx : 3840x2160 progressive scan. 8MP built-in CMOS image sensor! |
| 1/2.7" CMOS sensor with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black/white.
With the SENSOR present, night shots will be clear and in colour |
 | This camera features a 2.7-13.5mm motorized varifocal lens |
 | Infrared illuminator with REAL range up to 40m for night vision, with 2 LED illuminators. This camera is also equipped with SMART IR technology. Through this technology, the light emitted by the LEDs is adapted according to the object framed.  |
 |
This camera features ARTIFICIAL INTELLIGENCE functions, integrated on board!:
|
 | Remote visibility on mobile using the Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 | It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically. |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...). |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 | This camera is equipped with an onboard microphone |
 | Possibility to insert Micro SD up to a maximum of 256GB (not included, sold separately) |
 | Protection level IP67 ( Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 | 12V DC power adapter NOT included!
|
 | This product is covered by a 24 month guarantee. |
