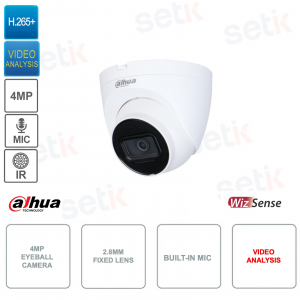

POE ONVIF® Eyeball 4MP IP camera - 2.8mm lens - Video Analysis - IR 30m

POE ONVIF® Eyeball 4MP IP camera - 2.8mm lens - Video Analysis - IR 30m
BEST SELLER -57%

IP ONVIF POE camera - Dahua - IPC-HDW2441T-S - 4MP resolution - CMOS 4MP 1/2.9" Starlight - 2.8mm lens - IR 30m (1LED) - Codec Smart H.265+ - Dual Stream - BLC - AGC - HLC - WDR 120dB - ROI - 3DNR - Video Analysis - Built-in microphone - Event alarm - 256GB MicroSD slot (not included) - IP67 outdoor protection against dust and splashes.



Reference: IPC-HDW2441T-S

Brand: Dahua

EAN: 6923172539878

FIND INSTALLER

€113.84

€264.74 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


IP CAMERA 4MEGAPIXEL EYEBALL IP POE ONVIF® FIXED - 2.8MM LENS - STARLIGHT - VIDEO ANALYSIS - MICROPHONE - DAHUA - IPC-HDW2441T-S

Made by Dahua
ONVIF® PoE Eyeball IP camera - Outdoor - Dahua - IPC-HDW2441T-S
4MP resolution - 2.8mm fixed lens - Compression up to H.265+ - 1/2.9" Starlight CMOS sensor - Starlight technology : color vision 24/7!
IR illuminator 1 LED 30Meters - WDR 120dB - BLC - HLC - 3DNR - AGC - AWB - Mirror - Privacy Masks - Video Analysis : perimeter protection, intrusion detection, Smart Search - Built-in microphone - Event alarm -
256GB Micro SD slot (not included) - RJ45 100M - IP67 outdoor protection - 24 months warranty

Product details

Telecamera IP Dome con risoluzione 4MP e ottica fissa 2.8mm IR LED 30MT
  • IP Eyeball Camera - For outdoor IP ONVIF® PoE - Dahua - IPC-HDW2441T-S
  • Resolution: 4MP - 2688(H)×1520(V)
  • Image sensor 1/2.9" 4MP CMOS with Starlight Technology
  • Starlight technology: Color night vision!
  • Fixed lens: 2.8mm
  • Video compression up to H.265+
  • Dual Stream
  • Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC, 3DNR, Mirror Mode, Privacy Masking
  • motion detection
  • Video Analysis: Line crossing, intrusion
  • IR Illuminator 1 LED 30 Meters
  • Integrated microphone
  • IP67 Protection (Dust/Immersion)
  • Suitable for indoor/outdoor environments
  • PoE protocol supported
  • MicroSD slot (up to 256GB not included)
  • Dimensions: 100.9mm × Φ109.9mm
  • Material: metal and plastic
  • Operating temperature: –40 °C to +60 °C
  • Net weight: 0.37Kg
  • 24 Months Italian Warranty

Data sheet

IPC-HDW2441T-S

Room

Image Sensor

1/2.9" CMOS

Max.Resolution

2688(H)×1520(V)

ROM

128MB

RAM

128MB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

0.008 lux@F1.6 (Color, 30IRE)
0.0008 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>56dB

Illumination Distance

Network Port

RJ-45 (10/100Base-T)

SDKs and APIs

Yes

NetworkProtocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Interoperability

ONVIF® (Profile S/Profile T); CGI; P2P; Milestone

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB)

Browsers

IE; Chrome; firefox

management software

DSS; DMSS extension

Mobile Clients

iOS; android

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12VDC/PoE (802.3af)

power consumption

Basic: 2.5W (12VDC); 3.3W (PoE);
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1W (PoE)

environment

Operating Temperature

–40°C to +60°C (–40°F to +140°F)

Operating Humidity

≤95%

Storage Temperatures

–40°C to +60°C (–40°F to +140°F)

Protection

IP67

structure

Casing material

Inner core: Metal
Cover: Plastic

Product Dimensions

100.9mm × Φ109.9mm (3.97" × Φ4.33")

Net Weight

0.37kg (0.82lb)

Gross Weight

0.56kg (1.23lb)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports Onvif version!

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Risoluzione 4Mpx 2592x1520

This camera has a resolution of 4 Megapixels!

Maximum resolution: 2688 (H) × 1520 (V), progressive scan image.

Supported Resolutions:

  • 4M (2688×1520);
  • 4M (2560×1440);
  • 3M (2304×1296);
  • 1080p (1920×1080);
  • 1.3M (1280×960);
  • 720p (1280×720);
  • D1 (704×576/704×480);
  • VGA (640×480);
  • CIF (352×288/352×240)

1/2.9" CMOS sensor, 4MP, with STARLIGHT technology.

Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Ottica fissa This camera features a 2.8mm fixed lens
IR illuminator 20 MT

Infrared illuminator with 1 LED and 30m range

Full HD

Remote visibility on mobile using the Dahua DMSS application.

This camera features VIDEO ANALYSIS (IVS) functions:
- Line crossing recognition
- Intrusion recognition
- Smart Search

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Funzione Day/Night. Permette di adatta la lente alla visione notte

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
Immagine che evidenzia la funzione Day/Night

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC extension

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recovery turns out to be difficult (entrances or exits of car parks, recovery of license plates, presence of particular lights etc...).

AGC extension

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Example Automatic Gain Control function

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.

Questa telecamera presenta microfono a bordo This camera is equipped with an onboard microphone
MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

12VDC_Supply

12V DC power adapter NOT included!

Italian Guarantee icon This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Schema e dimensioni della telecamera IPC_HDW2431T_AS
