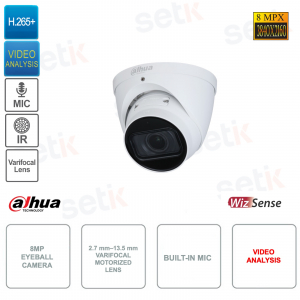

POE ONVIF® Eyeball IP Camera 8MP - 2.7 mm–13.5 mm - Video Analysis - IR 40m

POE ONVIF® Eyeball IP Camera 8MP - 2.7 mm–13.5 mm - Video Analysis - IR 40m
QUESTIONS ABOUT THE PRODUCT

 
Optic calculation
IN PROMOTION -58%

Eyeball IP ONVIF POE camera - Dahua - IPC-HDW2841T-ZS - 8MP 4K Ultra HD resolution - CMOS 8MP 1/2.7" Starlight - Motorized varifocal lens 2.7 mm–13.5 mm - IR 40m (2LED) - Codec Smart H.265+ - Dual Stream - BLC - AGC - HLC - WDR 120dB - ROI - 3DNR - Video Analysis - Built-in microphone - Event alarm - 256GB MicroSD slot (not included) - IP67 outdoor protection against dust and splashes.

Reference: IPC-HDW2841T-ZS

Brand: Dahua

EAN: 6923172581495

FIND INSTALLER

€307.44

€732.00 -58%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

8 MEGAPIXEL EYEBALL IP POE ONVIF® FIXED IP CAMERA - 2.7–13.5MM MOTORIZED LENS - STARLIGHT - VIDEO ANALYSIS - IR 40M - MICROPHONE - DAHUA - IPC-HDW2841T-ZS

Made by Dahua
ONVIF® PoE Eyeball IP camera - Outdoor - Dahua - IPC-HDW2841T-ZS
8MP resolution - 2.7 mm–13.5 mm varifocal lens - Compression up to H.265+ - 1/2.7" Starlight CMOS sensor - Starlight technology : color vision 24/7!
IR illuminator 2 LEDs 40m - WDR 120dB - BLC - HLC - 3DNR - AGC - AWB - Mirror - Privacy Masks - Video Analysis : perimeter protection, intrusion detection, Smart Search - Built-in microphone - Event alarm -
256GB Micro SD slot (not included) - RJ45 100M - IP67 outdoor protection - 24 months warranty

Product details

Telecamera IP Dome con risoluzione 4MP e ottica fissa 2.8mm IR LED 30MT
  • Eyeball camera - For outdoor - IP ONVIF® PoE - Dahua - IPC-HDW2841T-ZS
  • Resolution: 8MP - 3840x2160p progressive scan
  • Image sensor 1/2.7" 8MP CMOS with Starlight Technology
  • Starlight technology: Color night vision!
  • Motorized varifocal lens 2.7 mm–13.5 mm
  • Video Compression: Up to H.265+ Smart Codec
  • Dual Stream
  • Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC, 3DNR, Mirror Mode, Privacy Masking
  • ROI (4 areas)
  • motion detection
  • Video Analysis: Line Crossing, Intrusion, Smart Search
  • IR Illuminator 2 LEDs 40m
  • Integrated microphone
  • IP67 Protection (Dust/Immersion)
  • Suitable for indoor/outdoor environments
  • PoE protocol supported
  • MicroSD slot (up to 256GB not included)
  • Dimensions: 108.3mm × Φ122mm (4.26" × Φ4.80")
  • Material: metal
  • Operating temperature: –30 °C to +60 °C
  • Net weight: 0.70Kg
  • 24 Months Italian Warranty

Data sheet

Room

Image Sensor

1/2.7" CMOS

Max.Resolution

3840(H)×2160(V)

ROM

128MB

RAM

256MB

Scanning System

Progressives

Electronic Shutter Speed

Auto/Manual 1/3s–1/100,000s

Min Illumination

0.008 lux@F1.5 (Color, 30IRE)
0.0008 lux@F1.5 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

Alarm Event

No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMDs; security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDKs and APIs

Yes

NetworkProtocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB); NOS

Browsers

IE; Chrome; firefox

management software

Smart PSS; DSS; DMSS extension

Mobile Clients

iOS; android

Cyber Security

configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12VDC/PoE (802.3af)

power consumption

Basic: 2.8W (12VDC); 3.6W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6W (PoE)

environment

Operating Temperature

–30°C to +60°C (–22°F to +140°F)

Operating Humidity

≤95%

Storage Temperatures

–40°C to +60°C (–40°F to +140°F)

Storage Humidity

≤95%

Protection

IP67

structure

Casing material

Metal

Product Dimensions

108.3mm × Φ122mm (4.26" × Φ4.80")

Net Weight

0.70kg (1.54lbs)

Gross Weight

0.88kg (1.94lbs)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports Onvif version!
PoE power supply

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

PoE (802.3af)
This camera has an 8Mpx 3480x2160 resolution

This camera features an 8 Megapixel, 3840x2160p progressive scan resolution!

Supported resolution list:

  • 3840×2160 (4K, UltraHD)
  • 3072×2048
  • 3072×1728
  • 2880×1620
  • 2688×1520
  • 3M
  • 2304×1296
  • 1080p
  • 1.3M
  • 720p
  • Q1
  • VGA
  • CIF

1/2.7" CMOS sensor, 8MP 4K ULtraHD, with STARLIGHT technology.

Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+
Varifocal optics This camera features a 2.7 mm–13.5 mm varifocal lens
IR illuminator 20 MT

Infrared illuminator with 2 LEDs and 40m range

Full HD

Remote visibility on mobile using the Dahua DMSS application.

This camera features VIDEO ANALYSIS (IVS) functions:
- Line crossing recognition
- Intrusion recognition
- Smart Search
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Funzione Day/Night. Permette di adatta la lente alla visione notte

It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
Immagine che evidenzia la funzione Day/Night
ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
BLC extension

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where the recovery turns out to be difficult (entrances or exits of car parks, recovery of license plates, presence of particular lights etc...).

AGC extension

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Example Automatic Gain Control function

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.
Questa telecamera presenta microfono a bordo This camera is equipped with an onboard microphone
MicroSD recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )
Material from which the device was created

This camera is made of metal .
12VDC_Supply

12V DC power adapter NOT included!
Italian Guarantee icon This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Schema e dimensioni della telecamera IPC_HDW2431T_AS
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
