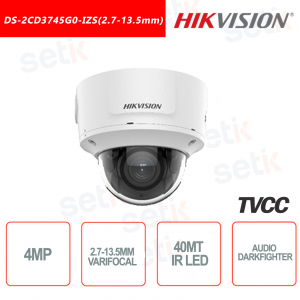

Hikvision IP POE DARKFIGHTER AUDIO 4MP 2.7-13.5mm IR H.265+ Dome 4MP Camera

Hikvision IP POE DARKFIGHTER AUDIO 4MP 2.7-13.5mm IR H.265+ Dome 4MP Camera
-35%

Hikvision DS-2CD3745G0-IZS(2.7-13.5mm) IP PoE ONVIF outdoor camera Dome Camera 4MP , 2.7-13.5mm Varifocal Lens, 1/2.5 "CMOS sensor, H.265+ . Day&Night (ICR), 40M IR illuminator, DARKFIGHTER , Audio , Micro SD slot ( UP TO 128GB - NOT INCLUDED), Triple Stream, Video Analysis , Face Detection , ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Motion Detection, Hik-connect connection, push button reset, IP66 and IK10 protection, metal

Reference: DS-2CD3745G0-IZS(2.7-13.5mm)

Brand: Hikvision

EAN: 6941264009917

FIND INSTALLER

€379.05

€583.16 -35%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
discover the available quantity



DS-2CD3745G0-IZS(2.7-13.5mm) | HIKVISION IP ONVIF® POE 4 MP 2.7MM-13.5MM OUTDOOR CAMERA ONVIF® H.265+ IR 40 METERS AUDIO DOME

Made by Hikvision Hikvision IP PoE outdoor DOME camera
Resolution: 4MP 4MP 4Megapixel - Varifocal lens 2.7 mm - 13.5 mm - 1/2.5" CMOS sensor - H.265+
IR Illuminator 40M - Day/Night(ICR) - WDR 120dB - AGC -BLC - HLC - 3D DNR - Motion Detection - Triple Stream - AUDIO
Power supply NOT included - 128GB MicroSD slot (not included) - 24 months warranty

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265+ and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0 up to version 4.0. Below are the main features of the most significant EASY IP SERIES.


Dark Fighter Technology:

Darkfighter technology allows color shooting even in very low light, thus avoiding the need to switch to black and white vision. A benefit of no small importance for the local police, often called upon to "decipher" unclear black and white images.

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.
POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation
Resolution:
This camera features a resolution of 4 MP
Image sensor 1/2.5” 4Megapixel progressive scan CMOS
Optics:
This camera has a 2.7 - 13.5 mm Varifocal lens
H.265+ compression


What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 40M

HIK-CONNECT

Hik Connect allows you to control the device remotely

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

128GB Micro SD slot ( NOT INCLUDED )

BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
ULTRA WDR - 120DB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

Diet:
A 12V DC power supply is required for the operation of this camera (not included)
IP66 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

IK10:

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Data sheet

DS-2CD3745G0-IZS(2.7-13.5mm)
Room
Image Sensor 1/2.5" Progressive Scan CMOS
Min Illumination Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Shutter Speed 1/3s to 1/100,000s
Angle adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Slow shutter Yes
Day & Night IR cut filter
Digital Noise Reduction 3D DNR
wdr extension 120dB
lens
Lens Type & FOV 2.7 to 13.5mm
Openings F1.4
Focus Car
Auto-Iris DC drives
FOV extension Horizontal field of view: 116° to 30° Vertical field of view: 60° to 17° Diagonal field of view: 144° to 33.5°
Lens mount Φ14
Illuminator
IR Range

Up to 40m

Wavelength

850nm

Compression Standard
Video Compression Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264Type Main Profile/High Profile
H.264+ Main stream supports
H.265Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32Kbps to 16Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding
Smart Feature Sets
Smart Events Line crossing detection, 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, 1 region configurable Object removal detection, 1 region configurable Face detection: detects faces Scene change detection
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Linkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Region of Interest Support 5 fixed regions for main stream and sub-stream
Max.Resolution 2688×1520
Main Stream 50Hz: 25fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
60Hz: 30fps (2688×1520, 2304×1296, 1920×1080, 1280×720)
Sub-Stream 50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Third Stream 50Hz: 25fps (1280×720, 640×360, 352×288)
60Hz: 30fps (1280×720, 640×360, 352×240)
Image Enhancement BLC/3D DNR/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping Yes
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Network
Network Storage MicroSD/SDHC/SDXC card (128GB), local storage and NAS (NFS, SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
General Function Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via email, pixel counter, HTTP listening
APIs ONVIF® (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users 3 Levels: Administrator, Operator and User
Clients iVMS-4200, Hik-Connect, Hik-Central
Web Browsers Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
interface
Audio 1 input (line in, 3.5mm), 1 output (line out, 3.5mm), mono sound
alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output 1Vp-p Composite Output(75Ω) (For adjustment only)
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 128GB
Reset Button Yes
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
General
WebClientLanguage 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, terminal block for DC input PoE(802.3af, class 3)
Power Consumption and Current 12VDC, 0.9A, max. 10.5W PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Protection Level IP66, IK10
Material Metal
Dimensions Φ 153.4 × 133.2 mm (Φ 6.04" × 5.24")
Weight Chamber: 1287 g (2.8 lb.)

Further details


Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
