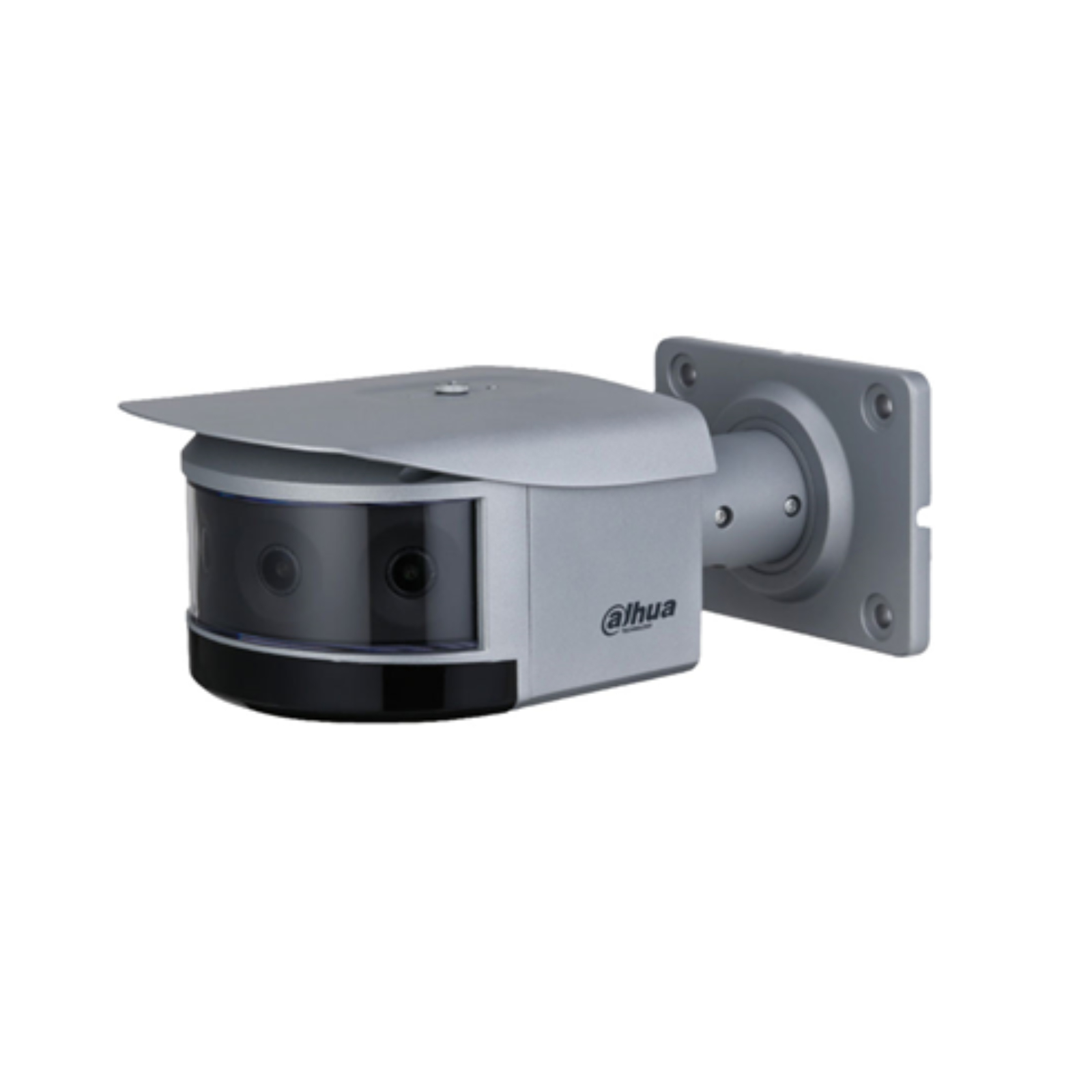

Surveillance camera, model DAHUA IPC-PFW83242-A180-S2 Bullet Overview Onvif PoE. Equipped with 4 1/1.8” 8Megapixel CMOS image sensors, and 4 2.8mm fixed optical lenses. It supports H.265+ video compression and Triple Stream. 180° Panoramic View, Day/Night(ICR), AGC, BLC, HLC, DWDR, 3D-NR, IVS Video Analysis , Line Crossing and Intrusion Detection , Crowd Distribution Map, 1x input + 1x RCA audio output, 2x inputs + 2x alarm outputs . Smart IR 30MT . IP67 and IK10 protection. S2 version
FIND INSTALLER
€1,579.05
€3,672.20 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

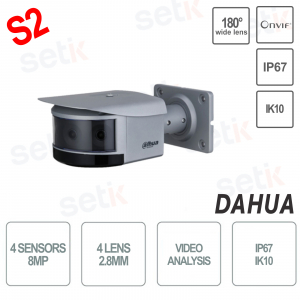

MULTI-LENS PANORAMIC IP CAMERA 8 MPX 2.8MM - 180° - VIDEO ANALYSIS - S2 VERSION - DAHUA
Bullet Overview Onvif PoE. Equipped with 4 1/1.8” 8Megapixel CMOS image sensors, and 4 2.8mm fixed optical lenses. It supports H.265+ video compression and Triple Stream. Panoramic view 180°, Day/Night(ICR), AGC, BLC, HLC, DWDR, 3D-NR.
IVS Video Analysis functions, line crossing and intrusion detection , Crowd distribution map, 1x input + 1x RCA audio output, 2x inputs + 2x alarm outputs. Smart IR 30MT . IP67 and IK10 protection - 24 months warranty
Product details
- S2 VERSION
- 4 x 8MP - 8 Megapixel Sensors
- 2.8mm fixed optics
- 4x 1/1.8” CMOS Image Sensors
- Triple Stream
- Functions: Day/Night(ICR), 3DNR, AWB, AGC, BLC,DWDR
- Quality IR illuminator with a maximum range of 30 meters.
- 24 months warranty
Data sheet
| model | IPC-PFW83242-A180-S2 |
| Room | |
| Image Sensor | 1/1.8” CMOS |
| Max.Resolution | 8192(H)×3840(V) |
| ROM | 8GB |
| RAM | 4GB |
| Scanning System | Progressives |
| Electronic Shutter Speed | Auto/Manual 1/3s–1/100,000s |
| Min Illumination | 0.005 lux@F1.6 (Color,30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 Lux (Illuminator on) |
| S/N Ratio | >56dB |
| Illumination Distance | 30m (98.43ft) (IR LED) |
| Illuminator On/Off Control | Car; manual |
| Illuminator Number | 8 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–90° Rotation: 0°–360° |
| LensType | Fixed-focal |
| Lens mount | M16 |
| Focal Length | 2.8mm |
| Max. Openings | F1.6 |
| Field of View | H: 180°; V: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 1.8m (5.90ft) |
| EPTZ extension | Yes |
| IVS (Perimeter Protection) | Tripwire; intrusion; parking detection |
| Vehicle Density | vehicle density; parking upper limit; vehicle congestion alarm |
| Crowd Distribution Map | Crowd map, global people counting; people counting in the area |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codecs | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Prioritize videos: Main stream: 8192 × 3840@(1–25/30 fps) Sub stream: 1280 × 600@(1–25/30 fps) Third stream: 2304 × 1080@(1–25/30 fps) Prioritize intelligence : Main stream: 8192 × 3840@(1–20 fps) Sub stream: 1280 × 600@(1–20 fps) Third stream: 2304 × 1080@(1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8192×3840; 7680×3600; 7168×3360; 6720×3152; 5760×2700; 4800×2252; 4096×1920; 2880×1360; 2304×1080; 2048×960; 1520×712; 1280×600;8192×3840; 7680×3600; 7168×3360; 6720×3152; 5760×2700; 4800×2252; 4096×1920; 2880×1360; 2304×1080; 2048×960; 1520×712; 1280×600 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 96kbps–32768kbps; H.265: 38kbps–32768kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC extension | Yes |
| HLC extension | Yes |
| wdr extension | dwdr extension |
| White Balance | Auto;natural;street lamp;outdoor;manual;regional custom;Auto; natural; street lamp; outdoors; manual; custom area |
| Gain Control | Car; manual |
| Noise reduction | 3D NO |
| motion detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
| Audio Compression | G.711a; G.711Mu; G.726: G.723; pcm extension |
| Alarm Event | No SD cards; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; scenes changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; parking detection; intensity change; traffic congestion; parking upper limit |
| Network Port | RJ-45 (10/100/1000Base-T) |
| SDKs and APIs | Yes |
| NetworkProtocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI |
| User/Host | 20 |
| Storage | FTP; SFTP; Micro SD card (support max. 256GB); NOS |
| Browsers | IE: IE 9 and later Chrome: Chrome 86 and later Firefox: Firefox 86 and later |
| management software | DS extension |
| Cyber Security | configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15; Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| RS-485 | 1 (baud rate range: 1200bps–115200bps) |
| Audio inputs | 1 channel (RCA port) |
| Audio Outputs | 1 channel (RCA port) |
| Alarm Inputs | 2 channels in: 5mA 3V–5VDC |
| Alarm Output | 2 channels out: 1,000mA 30VDC/500mA 50VAC |
| Power Supply | 12VDC/24VAC/PoE+(802.3at) |
| power consumption | Basic power consumption: 10.6W (12VDC); 11.9W(24VAC); 11.9 W (PoE) Max. power consumption (Intelligence on +IR intensity + WDR): 22.2 W (12 VDC); 25W (24VAC); 25W (PoE) |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Temperatures | –40°C to +60°C (–40°F to +140°F) |
| Storage Humidity | ≤95% |
| Protection | IK10; IP67 |
| Casing material | Metal + plastic |
| Product Dimensions | 298.3mm × 172.5mm × 120.5mm (11.74" × 6.79" × 4.74") (L × W × H) |
| Net Weight | 3.16kg (6.97lbs) |
| Gross Weight | 4.06kg (8.95lbs) |
Further details
 |
Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems. | |
|
|
H.265+ H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without strain the network. H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
 |
This camera is equipped with 4 1/1.8" CMOS sensors |
|
|
This camera supports 180° PANORAMIC VIEW |
|
 |
This camera features 4 fixed 2.8mm lenses | |
|
|
This camera features SMART DETECTION: - Line crossing recognition
|
|
 |
Infrared illuminator with REAL range up to 30M for night vision |
|
 |
This camera has 2 inputs and 2 outputs | |
 |
This camera features 1 Audio input + 1 RCA Audio Output | |
 |
BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...).  |
|
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.  |
|
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
|
 |
It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.  |
|
 |
HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.  |
|
 |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.  |
|
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
|
 |
Protection level IP67 ( Dust / Immersion ) |
|
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
|
 |
This camera features the Dahua proprietary Cloud p2p function |
|
 |
Remote visibility on mobile using the Dahua DMSS application. |
|
 |
This product is covered by a 24 month guarantee. |
