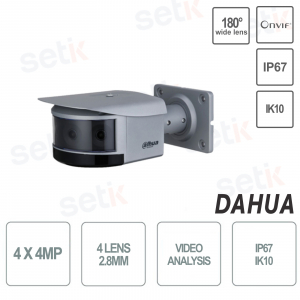

180° Panoramic Camera 4x 4MP 2.8mm Onvif PoE

180° Panoramic Camera 4x 4MP 2.8mm Onvif PoE
BEST PRICE -57%

Surveillance camera model DAHUA IPC-PFW81642-A180 Overview Onvif PoE. Equipped with 4 1/1.8” CMOS image sensors, and 4 2.8mm fixed optical lenses. It supports H.265+ video compression and Triple Stream. 180° panoramic view, Day/Night(ICR), AGC, BLC, HLC, DWDR, 3D-NR, IVS Video Analysis , line crossing and intrusion detection , people and vehicle counting, 1x input + 1x RCA audio output, 2x inputs + 2x alarm outputs . Smart IR 30MT . IP67 and IK10 protection.

Reference: IPC-PFW81642-A180

Brand: Dahua

EAN: 6923172548320

FIND INSTALLER

€1,307.30

€3,040.24 -57%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


MULTI-LENS PANORAMIC IP CAMERA 2.8MM - 180° - VIDEO ANALYSIS - EPTZ - DAHUA

Made by Setik
Surveillance camera, model DAHUA IPC-PFW81642-A180 Onvif PoE overview
Equipped with 4 1/1.8” CMOS image sensors, and 4 2.8mm fixed optical lenses. It supports H.265+ video compression and Triple Stream.
Panoramic view 180°,
Day/Night(ICR), AGC, BLC, HLC, DWDR, 3D-NR.
IVS video analysis functions, line crossing and intrusion detection, vehicle density, crowd distribution map
1x input + 1x RCA audio output, 2x inputs + 2x alarm outputs .
IP67 and IK10 protection
- 24 months warranty

Product details

Telecamera bullet con risoluzione 1080P e ottica fissa 2.8mm. Video Analisi e visione panoramica
- IP camera - Dahua
- 4 x 4MP sensors
-Onvif PoE
- Type: Panoramic Multi Lens
- 2.8mm fixed optics
- 4x 1/1.8” 8Megapixel CMOS Image Sensors
- Support Video Compression H.265+ and H.264+
- Triple Stream
- 180° panoramic view
- Functions: Day/Night(ICR), 3DNR, AWB, AGC, BLC,DWDR
- Integrated Video Analysis - EPTZ - Vehicle Density - Crowd Distribution Map
- 1 Audio Input + 1 Audio Output
- 2 Alarm Inputs + 2 Alarm Outputs
- Quality IR illuminator with a maximum range of 30 meters.
- IP67 protection (Dust/Immersion) and IK10 (Vandal acts)
- Power supply not included
- Suitable for indoor and outdoor environments
- 24 months warranty

Data sheet

model IPC-PFW81642-A180
Room
Image Sensor 1/1.8" CMOS
Max.Resolution 5520(H)×2700(V)
ROM 8GB
RAM 4GB
Scanning System Progressives
Electronic Shutter Speed Auto/Manual 1/3s–1/100,000s
Min Illumination 0.001 lux@F1.6 (Color, 30IRE)
0.0001 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)
S/N Ratio >56dB
Illumination Distance 30m (98.43ft) (IR LED)
Illuminator On/Off Control Car; manual
Illuminator Number 8 (IR LEDs)
Pan/Tilt/Rotation Range Tilt: 0°–90°
Rotation: 0°–360°
LensType Fixed-focal
Lens mount M16
Focal Length 2.8mm
Max. Openings F1.6
Field of View H: 180°; V: 100°
Iris Control Fixed
Close Focus Distance 1.3m (4.27ft)
EPTZ extension Yes
IVS (Perimeter Protection) Tripwire; Intrusion
Vehicle Density vehicle density; parking upper limit; vehicle congestion alarm
Crowd Distribution Map Crowd map, global people counting; people counting in the area
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
Video Frame Rate Main Stream: 5520 × 2700@(1-25/30 fps) Sub Stream: 1280 × 620@(1-25/30 fps) Third Stream: 1920 × 940@(1-25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 5520×2700; 4600×2252; 3840×1880; 2880×1408; 1280×620; 1024×496; 1920×940; 1366×668
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 96kbps–16384kbps
H.265: 38kbps–12544kbps
Day/Night Auto(ICR)/Color/B/W
BLC extension Yes
HLC extension Yes
wdr extension dwdr extension
White Balance Car; natural; street lamp; outdoors; manual; regional custom
Gain Control Car; manual
Noise reduction 3D NO
Region of Interest (RoI) Yes (4 areas)
defog Yes
Privacy Masking 8 areas
Audio compression G.711a; G.711Mu; G.726: G.723; pcm extension
Alarm Event No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scenes changing; audio detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion; traffic congestion; parking upper limit
Network Port RJ-45 (10/100/1000Base-T)
SDKs and APIs Yes
NetworkProtocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 256GB); NOS
Browsers With plug-in: IE: IE 9 and later Chrome: Chrome 86 and later Firefox: Firefox 86 and later Without plug-in: Edge Chrome: Chrome 86 and later Firefox: Firefox 86 and later
management software Smart PSS; DSS; DMSS extension
Cyber Security Configuration encryption; trusted execution; digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrades; trusted boot; firmware encryption; generation and importing of X.509 certification
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
RS-485 1 (baud rate range:1200bps–115200bps)
Audio inputs 1 channel (RCA port)
Audio Outputs 1 channel (RCA port)
analog output 1 channel (CVBS output: BNC)
Alarm Inputs 2 channels in: 5mA 3–5VDC
Alarm Output 2 channels out: 1,000mA 30VDC/500mA 50VAC
Power Supply 12VDC/24VAC/PoE+ (802.3at)
power consumption Basic: 8.2W (12VDC); 9.7W (24VAC); 9.7 W (PoE) Max. (WDR + IR intensity + intelligence on+ max. stream): 21.5 W (12 VDC); 24.2W (24VAC); 24.2W (PoE)
Operating Temperature –40°C to +60°C (–40°F to +140°F)
Storage Temperatures –40°C to +60°C (–40°F to +140°F)
Operating Humidity ≤95%
Protection IP67; IK10
Casing material Metal + plastic
Product Dimensions 298.3mm × 172.5mm × 120.5mm (11.74" × 6.79" × 4.74")
Net Weight 3.05kg (6.72lbs)
Gross Weight 3.79kg (8.36lbs)

Further details

Standard ONVIF® Onvif , the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

Codifica video Smart H.265+

H.265+

H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without strain the network.

H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Sensor

This camera is equipped with 4 x 4 MP 1/1.8" CMOS Sensors

180°

This camera supports 180° PANORAMIC VIEW

Main Stream: 5520×2700@(1-25/30fps)
Sub Stream: 1280 × 620@(1-25/30fps)
Third Stream: 1920 × 940@(1-25/30fps)
Ottica fissa This camera features 4 fixed 2.8mm lenses

This camera features SMART DETECTION:

- Line crossing recognition
- Intrusion recognition
- Vehicle status: parking limit, vehicle density, etc.
- Crowd density map

Illuminatore IR fino a 30mt

Infrared illuminator with range up to 30M for night vision

Full HD This camera has 2 inputs and 2 outputs
Ingresso Audio This camera features 1 Audio input + 1 RCA Audio Output
Funzione Backlight compensation BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discreet adaptation to all those situations where shooting is difficult (entries or exits of car parks, shooting of license plates, presence of special lights, etc...).
immagine esempio funzione Backlight compensation
Funzione AGC Automatic Gain Control The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Esempio Funzione Automatic Gain Control
Funzione 3D-DNR

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.

Esempio funzione 3D-DNR
Funzione Day/Night. Permette di adatta la lente alla visione notte It allows you to adapt the lens to Night/Day vision and the consequent management of the IR illuminator automatically.
Immagine che evidenzia la funzione Day/Night
Funzione High Light Compensation HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
esempio funzione HLC High Light Compensation
Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Esempio funzione ROI Region of interest
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Questo NVR supporta la funzione Cloud 2P2 proprietario Dahua

This camera features the Dahua proprietary Cloud p2p function

Full HD

Remote visibility on mobile using the Dahua DMSS application.

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.
