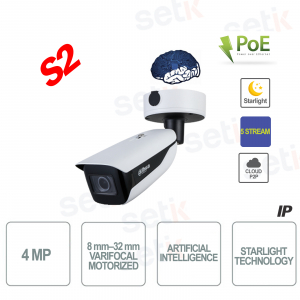

PoE AI 4MP Motorized IP Camera Starlight 5 Stream 120MT IR - S2 - Dahua

PoE AI 4MP Motorized IP Camera Starlight 5 Stream 120MT IR - S2 - Dahua
-58%

Dome Dahua IPC-HFW7442H-Z4-S2 Version S2 Outdoor IP camera ONVIF PoE 4Megapixel with Artificial Intelligence , 8-32mm motorized varifocal lens , 1/1.8 "CMOS sensor, 5 stream , compression up to H.265 . IR illumination 4 LED 120MT, Day /Night(ICR), WDR 140dB, Video Analysis, Perimeter Protection, Face Detection, People Counting, Metadata, Smart Search, Audio, Alarm, Micro SD Slot, RS485, Cloud P2P, IP67/IK10 Protection - S2 VERSION



Reference: IPC-HFW7442H-Z4-S2

Brand: Dahua

FIND INSTALLER

€768.09

€1,828.78 -58%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno



OUTDOOR IP CAMERA ONVIF® POE - 4 MEGAPIXELS - MOTORIZED - STARLIGHT - ARTIFICIAL INTELLIGENCE - 5 STREAM - S2 - DAHUA

Made by Dahua Outdoor IP camera ONVIF® PoE - AI Series - S2 - Dahua
4 Megapixel resolution - 8 ~ 32 mm motorized lens - 1/1.8" Starlight CMOS - 5 Streams - Up to H.265
IR Illuminator 4 LED 120MT - Day/Night(ICR) - Video Analysis - MicroSD Slot (Max. 256GB - NOT INCLUDED! ) - Audio/Alarm - WDR 140dB
Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Smart Search, Body and Face Detection
Video Analysis: Abandoned / Lost Objects

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

  • Dahua AI Series ONVIF® PoE Outdoor IP Camera
  • S2 VERSION
  • 4MP 4MP resolution
  • 8 ~ 32mm motorized varifocal lens
  • Image sensor 1/1.8” CMOS with Starlight Technology
  • Starlight technology: Color night vision!
  • Video Compression up to H.265
  • 5 Ultra-Low Streams: Five streams for three HD video channels
  • Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Smart Search, Face and Body Detection
  • General Analysis Video: Abandoned/Lost Objects
  • Functions: Day/Night(ICR), WDR 140dB , BLC, 3D DNR, Motion Detection, ROI, EIS, Defog
  • Smart IR Illuminator 4 LEDs 120 Meters
  • Remote Monitoring: Multiple via web browser, CMS (DSS/PSS) and DMSS
  • 1 Audio In / 1 Audio Out (RCA Ports)
  • 3 inputs / 2 alarm outputs
  • IP67 Protection (Dust / Immersion)
  • IK10 protection (Vandal acts)
  • PoE protocol
  • MicroSD slot (Max 256GB - Not Included)
  • 12V DC power adapter (not included)
  • Dimensions: 340.1mm × 108.5mm × 92.9m (13.39" × 4.27" × 3.66")
  • 24 months warranty

Data sheet

model IPC-HFW7442H-Z4-S2
Room
Image Sensor 1/1.8”
Effective Pixels 2688(H)×1520(V)
ROM 4GB
RAM 2GB
Scanning System Progressives
Electronic Shutter Speed Auto/Manual 1/3s–1/100,000s
Min Illumination 0.001 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio >56dB
IR Distance 120m (393.70ft)
IR On/Off Control Car; Manual; Zoomprius
IR LEDsNumber 4 (IR LEDs)
lens
LensType Motorized vari-focal
Mount Type module interface
Focal Length 8mm–32mm
Max Openings F1.6 (Constant)
Field of View Horizontal: 41° (W)–15° (T)
Vertical: 22° (W)–9° (T)
Diagonal: 48° (W)–18° (T)
Iris type Car; P-iris
Close Focus Distance 1.0m (3.28ft)
Smart Events
General IVS Analytics abandoned object; missing object
Professional, smart
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Face Detection face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshots, quality priority and optimization snapshots); face angle filter; optimization time setting
Face Recognition face detection; track; snapshots; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting. Support 5 face databases; register one by one or in batches; support face recognition similarity settings and face comparison on the basis of 100,000 face databases.
Face and Body Detection There are two modes: General mode and PPE Detection. General mode: Supports enabling face detection and human detection at the same time, and alarms can be triggered. PPE Detection: Supports PPE detection, can detect attributes including face mask, safety helmet, glasses, and safety vest, top color and bottom color, and determine whether PPE requirements are met. Alarms can be triggered according to the alarm settings
People Counting Tripwire people counting and people counting in area; generating and exporting report (day/month/year); queue management and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.
Video Metadata Motor vehicle, non-motor vehicle, face, human detection; track; snapshots; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling, etc. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: top/bottom type and color, bag, hat, gender, and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)
Smart Codecs Smart H.265+; Smart H.264+
Video Frame Rate Main Stream: 2688×1520 (1–50/60fps)
Sub streams: 704 × 576 (1–25 fps); 704×480 (1–30fps)
Third stream: 1920 × 1080 (1–25/30 fps)
Fourth streams: 1920 × 1080 (1–25/30 fps)
Fifth streams: 704×576 (1–25fps);704×480 (1–30fps)
Stream Capability 5 streams
Resolution 4M (2688×1520); 3M (2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32kbps–16384kbps
H.265: 12kbps–9984kbps
Day/Night Auto(ICR)/Color/B/W
BLC extension Yes
HLC extension Yes
wdr extension 140dB
White Balance Car; natural; street lamp; outdoors; manual; regional custom
Gain Control Auto/Manual
Noise reduction 3D NO
motion detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Electronic Image Stabilization (EIS) Yes
Smart IR Yes
defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirrors Yes
Privacy Masking 4 areas
Audio
Audio Compression PCM; G.711A; G.711Mu; G.726; G.723
Alarm Event No SD cards; SD card full; SD card error; SD card durability warning; network disconnection; IP conflict; illegal access; security exception; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people-gathering; parking detection; scenes changing; audio detection; defocus detection; external alarm; face detection; video metadata; people counting in the area; people counting; queue management
Network
Network RJ-45 (10/100/1000Base-T)
SDKs and APIs Yes
Cyber Security video encryption; Firmware encryption; configuration encryption; digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and import of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
NetworkProtocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; Milestone; P2P
User/Host 20 (Total bandwidth: 80M)
Edge Storage FTP; SFTP; Micro SD card (support max. 256GB); NOS
Browsers IE: IE9 and later Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later
management software Smart PSS; DSS; DMSS extension
Mobile phones iOS; android
Certification
Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14; UL 50E NEMA Type 4X (optional)

Port
RS-485 1 (baud rate range: 1200bps–115200bps)
Audio IN/OUT 1 channel (RCA port)/1 channel (RCA port)
Alarm IN 3 channels in: 5mA 3V–5VDC
Alarm OUT 2 channels out: 1,000mA 30VDC/500mA 50VDC
Power
Power Supply 12VDC/24VAC/PoE+ (802.3at)
power consumption Basic power consumption: 5.11W (12VDC); 6.82W (24VAC); 7.62 W (PoE) Max. power consumption (Max. stream + intelligent function + IR LED + focus): 16.8 W (12 VDC); 20.7W (24VAC); 21.3 W (PoE) Heat power consumption: 3.3 W (12 VDC); 5.5W (24VAC); 5.5W (PoE)
environment
Operating Temperature –40 °C to +65 °C (–40 °F to +149 °F)/Less than 95% RH
Storage Temperatures –40°C to +65°C (–40°F to +149°F)
Protection Grade IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional)
structure
Casing Metal + Plastic
Dimensions 340.1mm × 108.5mm × 92.9mm (13.39" × 4.27" × 3.66") (L × W × H)
Net Weight 1.54kg (3.40lbs)
Gross Weight 2.44kg (5.38lbs)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera complies with the ONVIF® standard

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter Protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, loitering
- Face detection Face detection, tracking, priority, snapshot, face emphasis, face exposure, face attribute extraction, 6 attributes and 8 expressions: gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion), mask, beard. Face Matting setting: face, single thumb photo. 2 snapshot strategies: snapshot priority, recognition. Face angle filter, priority time setting. Management of up to 5 groups of face libraries. Individual person register and batch person register. Face detection and similarity settings. Supports maximum contrast in face libraries with 200,000 faces
- People counting : Counts the number of people entering and leaving and transmits the number, displays and emits annual statistics daily/monthly, N° in area.
- Video Metadata: Supports human body, human face, motorized and non-motorized vehicle capture and attribute extraction
- Smart Search: Work with NVR Smart to fine-tune the performance of smart search, event extraction, and event video merging

AI Camera - Rilevamento volto

Video Stream - 5 Streams !

This camera supports H.265/H.264 video compression with 5 video streams!

Ottica varifocale 3.7-11mm This camera features 8~32mm varifocal lens with Motorized Zoom
Optics Demo Video:



1/1.8" CMOS sensor with STARLIGHT technology.
With this CMOS sensor it is possible to have color shots even in night mode.
Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Illuminatore IR fino a 80mt

Infrared illuminator with 4 LEDs and maximum approximate range of 120Mt

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

Full HD

Remote visibility on mobile using the Dahua DMSS application.

Full HD

Cloud function with Easy4IP

This camera features VIDEO ANALYSIS (SMART DETECTION):
- Recognition of lost, abandoned objects

WDR Ultra a 120dB ULTRA WDR up to 140dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione EIS This camera features the EIS function.

The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable
Ultra Smart Funzione Stabilizzazione EIS
DEFOG
It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Day/Night

It allows you to adapt the lens to night/day vision and the consequent management of the IR illuminator automatically.

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
AGC extension

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

3d-dnr_system

3D-NR is the most advanced version of NOIS REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light

Questa telecamera presenta ingressi e uscite audio

This camera features 1 Input + 1 Audio Output (RCA Ports)

Questa telecamera presenta ingressi e uscite allarme This camera has 3 alarm inputs + 2 alarm outputs
Porta RS485 1xRS485
MicroSD recording

Possibility to record what happens on MicroSD. (Max 256GB - Not included)

Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

12VDC_Supply A 12V DC power supply is required for the operation of this camera (not included)
Warranty

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
IPC-HFW7442H-Z4 4MP AI IP IR 40 measurements
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
