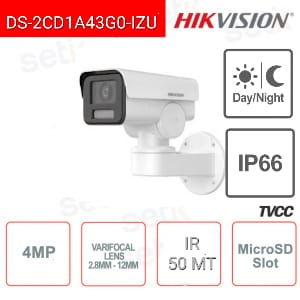

HIKVISION BULLET CAMERA 4 MP 2.8 MM - 12 MM IR H.265+ WDR

-35%

Hikvision DS-2CD1A43G0-IZU HD IP PoE ONVIF outdoor camera Bullet 4MP , 2.8mm - 12mm Varifocal lens, 1/3" CMOS sensor, H.265+ . Day&Night (ICR), Schedule, 50M IR illuminator, Micro SD (up to to 256GB - NOT INCLUDED) Dual Stream, ROI, WDR 120dB , BLC, 3D DNR, AGC, Motion Detection, reset button, IP66 protection, metal and plastic.

Reference: DS-2CD1A43G0-IZU

Brand: Hikvision

EAN: 6931847157852

FIND INSTALLER

https://www.setik.biz/en/cameras/8372-hikvision-ds-2cd1a43g0-izu-hikvision-bullet-camera-4-mp-28-mm-12-mm-ir-h265-wdr.html

€266.45

€409.92 -35%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

Description Product Details Data Sheet Further Details Download

DS-2CD1A43G0-IZU | HIKVISION IP POE 4.0 MP VARIFOCAL 2.8MM - 12MM OUTDOOR CAMERA ONVIF® H.265 IR 50 METERS BULLET

Hikvision HD IP ONVIF® PoE Outdoor Bullet Camera
Resolution: 4.0 MP 4Megapixel - Varifocal lens 2.8 mm - 12 mm - 1/3" CMOS sensor - H.265+
IR Illuminator 50M - Day/Night(ICR) - WDR 120dB - AGC -BLC - 3D DNR - Motion Detection - ROI
Power supply NOT included - MicroSD slot (not included) - 24 months warranty

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265+ and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0 up to version 4.0. Below are the main features of the most significant EASY IP SERIES.

The DS-2CD1A43G0-IZU camera has EASY IP version 1.0+

ONVIF®:
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems.

POE (Power Over Ethernet):
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

Resolution:
This camera features a resolution of 4.0MP 4MP 4Megapixel!
Image sensor 1/3” 4Megapixel progressive scan CMOS

Optics:
This camera has a 2.8 - 12 mm Varifocal lens

H.265+ compression

What is H.265+ ?

A smart algorithm self-developed by Hikvision which can greatly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and required storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression, and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows for more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

Infrared IR Illuminator:
Infrared IR illuminator for better night vision. Range up to 50M

WDR 120dB:
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light. The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast. Immagine esempio funzione WDR 120db

ROI (Region Of Interest):
The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

BLC (Backlight Compensation):
is one of the 3 possible passages in the management of images with Contrast, typical situations are (entries or exits from parking lots, license plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most possible complexities, the BLC function allows a discreet adaptation to these situations

Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images in both low light and movement. The currently most powerful solution for obtaining maximum results in the presence of little light.

MicroSD slot:
Present microsd/sdhc/sdxc slot up to 256GB - not included

Diet:
A 12V DC power supply is required for the operation of this camera (not included)

IP66 protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

Data sheet

DS-2CD1A43G0-IZU
Room
Image Sensor	1/3" Progressive Scan CMOS
Min Illumination	Color: 0.007 Lux @(F1.6 AGC ON), 0 Lux @ white light
Shutter Speed	1/3s to 1/100,000s
Day & Night	IR cut filter
Digital Noise Reduction	3D DNR
wdr extension	120dB
Angle adjustment	Pan: -100° to 100°, tilt: -20° to 45°
lens
Focal Length	2.8 to 12mm
Openings	max F1.6
FOV extension	Horizontal field of view: 96.7° to 29.7° Vertical field of view: 51.7° to 16.7° Diagonal field of view: 114.3° to 34°
Lens mount	Ø14
IR
IR Range	Up to 50m
Wavelength	850 n.m
Compression Standard
Video Compression	Mainstream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
H.264Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265Type	Main Profile
Video Bit Rate	32Kbps to 8Mbps
Smart Feature set
Region of Interest:	1 fixed region for main stream
Max.Resolution	2560×1440
main stream max. Frame Rates	50Hz: 20fps (2560×1440), 25fps (1920×1080, 1280×720) 60Hz: 20fps (2560×1440), 30fps (1920×1080, 1280×720)
Sub-stream Max. Frame Rates	50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720 640×480, 640×360)
Image Enhancement	BLC, HLC, 3D DNR
Image Senngs	Mirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, scheduled
Network
Network Storage	Built-in memory card slot, Support Micro SD/SDHC/SDXC card (up to 256G )
Alarm Trigger	Motion detection, video tampering alarm, exceptions
Protocols	TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP™,FTP,SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, an[-flicker, heartbeat, mirror, password protec[on, privacy mask, watermark
APIs	ONVIF® (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Clients	iVMS-4200, Hik-connect
Web Browsers	IE10, IE11, Chrome 57.0+, Firefox 52.0+
interface
Communicate[on Interface	1 RJ45 10M/100M self-adap[ve Ethernet port
Reset Button	Yes
General
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply	12VDC ±25%,0.91A,max 11W,0? 5.5mm coaxial power plug, reverse polarity protection PoE (802.3af, class 3)
Power Consumption and Current	12VDC, 0.9A, max. 11W; PoE: (802.3af, 36V to 57V), 0.34A to 0.21A, max. 12.5W
Protection Level	IP66IEC 60529-2013
Material	Metal and Plastic
Dimensions	197.1mm×105×225.4mm (7.8×4.1"×8.9")
Weight	Room: approx. 900 g (2 lb.) With package: approx. 1520g (3.3lb.)
