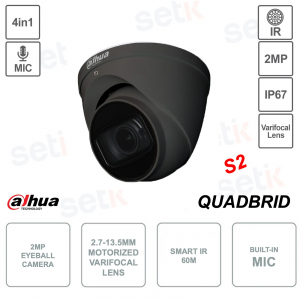

2MP Outdoor Camera - 2.7-13.5mm - 4in1 Switchable - Microphone - Smart IR 60m

2MP Outdoor Camera - 2.7-13.5mm - 4in1 Switchable - Microphone - Smart IR 60m
IN PROMOTION -60%

Dahua - Eyeball outdoor camera HAC-HDW2241T-Z-A-S2-DG - S2 version - 4 technologies in 1: CVBS CVI AHD TVI, 2MP 1080P FULL-HD resolution, 2.7-13.5mm motorized lens and 2MP CMOS sensor with Starlight technology - Smart IR 2 LED 60M , WDR 130dB , AGC, AWB, BLC, HLC, Day/Night (ICR) - Microphone - Outdoor IP67 protection - Metal.

Reference: HAC-HDW2241T-Z-A-S2-DG

Brand: Dahua

EAN: 6923172523761

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA 4IN1 2MEGAPIXEL MOTORIZED CAMERA 2.7-135MM - S2 VERSION - STARLIGHT - SMART IR 60METERS - MICROPHONE - WDR 130DB - HAC-HDW2241T-Z-A-S2-DG

Made by Dahua

Dahua outdoor camera Eyeball 4in1 - HAC-HDW2241T-Z-A-S2-DG
Version S2 - 4in1: HDCVI / HDTVI / AHD / ANALOG - 2Megapixel 2MP - 2.7-13.5mm Motorized Lens
2MP 1080p CMOS sensor with Starlight Technology - Smart IR 2 LED 60MT - WDR 130dB - AGC - AWB - BLC - HLC - Mirror Mode - Privacy Masking -
Microphone - Power supply NOT included - 24 months manufacturer's warranty.

Product details

Telecamera Dome con risoluzione 2MP e ottica varifocale motorizzata 2.7-13.5mm

- 4in1 dome camera - DahuaHAC-HDW2241T-Z-A-S2-DG
- S2 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG via DIP switch
- Switchable technologies via dip switch on BNC port
- Resolution: 2Megapixel 2MP
- 2MP CMOS image sensor with Starlight technology
- Starlight technology: Color night vision
- Motorized 2.7-13.5mm varifocal lens
- Functions: Day/Night(ICR), BLC, HLC, AGC, AWB, Mirror Mode, Privacy MAsking
- WDR 130dB
- OSD Multilingual menu
- Built- in microphone
- IP67 protection (Rain / Diving)
- Quality Smart IR illuminator with a maximum range of 60 meters.!
- 1 High Definition BNC Video Output & 1 CVBS Video Output (dip switch)
- 12V DC power supply not included
- Suitable for indoor and outdoor environments
- Dimensions: φ122mm × 104.8mm
- Operating temperature: –30°C~+60°C
- Product net weight: 0.58Kg
- 24 months warranty

Data sheet

HAC-HDW2241T-Z-A-S2-DG

Room

Image Sensor

2MP CMOS

Max.Resolution

1920(H)×1080(V)

Pixels

2MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25s–1/100000s

NTSC: 1/30s–1/100000s

S/N Ratio

> 65dB

Min Illumination

0.001Lux/F1.6, 30IRE, 0Lux IR on

Illumination Distance

60m (196.9ft)

Illuminator On/Off Control

Car

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

lens

LensType

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Risoluzione Full-HD 1920x1080

This camera features 2 Megapixel 1080P FULL HD resolution

Ottica varifocale motorizzata This camera features 2.7-13.5mm varifocal lens with Motorized Zoom

Video Example:


2MP CMOS sensor with STARLIGHT technology.

Full HD 1080p progressive scan resolution.

Low brightness, visibility at 0.0001Lux, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Illuminatore IR fino a 80mt

Infrared illuminator with approximate maximum range of 60Mt

Including 2 IR illuminators.

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

ULTRA WDR up to 130dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.

Microfono integrato

This camera has a built- in microphone
Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
Schema dettagliato con le dimensioni della telecamera HAC-HDW2241T-Z-A Dahua
