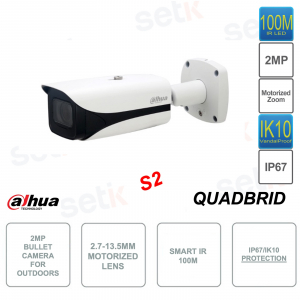

4in1 Outdoor Bullet Camera - 2.7-13.5mm Lens - Smart IR 100m - S2 Version

4in1 Outdoor Bullet Camera - 2.7-13.5mm Lens - Smart IR 100m - S2 Version
-57%

Dahua 1080p 2MP Bullet Outdoor Camera - HAC-HFW3231E-Z-DP-VP-S2 - S2 Version - Starlight - 4in1 Switchable CVI CVBS AHD TVI - Smart IR 100m - WDR 120dB - BLC - HLC - Defog - AGC - 3DNR - AWB - Day/Night(ICR) - Mirror Mode - Privacy MAsking - IP67 protection for outdoor use - Vandal resistant IK10 - Audio - Alarm - Test Port - Upgrade Port - Power supply 12 VDC / 24 VAC - Metal.

Reference: HAC-HFW3231E-Z-DP-VP-S2

Brand: Dahua

EAN: 6923172543134

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR CAMERA DAHUA HD CVI 2MEGAPIXEL 2.7-12MM MOTORIZED - S2 VERSION - AUDIO - ALARM - STARLIGHT - SMART IR 100M - HAC-HFW3231E-Z-DP-VP-S2

Prodotto marchiato Dahua
HD-CVI Bullet Camera - Pro Series - Dahua - HAC-HFW3231E-Z-DP-VP-S2
S2 version - 2MP resolution - 4in1 CVI CVBS AHD TVI switchable - 2.7-13.5mm Varifocal lens - 2MP Starlight CMOS sensor
Smart IR (4 LEDs) up to 100m - Day/Night(ICR) - WDR 120dB - BLC - HLC - 3DNR - AWB - Electronic Defog - Mirror - Privacy Masking - Audio: 1in RCA - Alarm: 1in/1out - IP67 protection from external / IK10 (vandalism) - Power supply 12VDC/24 VAC - 24 months warranty

Product details

  • HDCVI camera - Outdoor bullet - Dahua - HAC-HFW3231E-Z-DP-VP-S2
  • S2 version
  • Image sensor 2MP 1080p with progressive scan Starlight technology
  • Starlight technology: Color night vision!
  • 2Megapixel 2MP 1080P FULL-HD resolution
  • Varifocal lens 2.7-13.5mm with motorized zoom
  • Smart IR Illuminator 4 LEDs 100M
  • WDR 120dB , Day/Night(ICR), AWB, AGC, BLC, 3DNR, Mirror Mode, Electronic Defog, AGC, Privacy Mask on 8 rectangular zones
  • 1 Alarm Input + 1 Alarm Output
  • 1 RCA audio input
  • Test Port: 1-channel, 2-pin CVBS video output
  • Upgrade Port: 1-channel, 4-pin Ethernet input
  • Material: Metal
  • AC 24V / DC 12V power supply
  • IP67 protection for outdoors
  • IK10 protection against vandalism
  • Operating temperature: –30 °C to +60 °C
  • Dimensions: 273.2mm × 95.0mm × 95.0mm
  • Net weight: 1.09Kg
  • 24 months warranty

Data sheet

HAC-HFW3231E-Z-DP-VP-S2

Room

Pixels

2MP

Image Sensor

2 MP COMS

Max.Resolution

1920(H)×1080(V)

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25s–1/100,000s
NTSC: 1/30s–1/100,000s

Min Illumination

0.001 lux@F1.5 (Color, 30IRE)
0.0001 lux@F1.5 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

100m (328.08ft)

Illuminator On/Off Control

Car

Illuminator Number

4 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

lens

LensType

Motorized Vari-focal

1.39kg (3.06lbs)

Installation

wall mount; ceiling mount; horizontal pole mount

Further details

Risoluzione FULL HD 1080P 2.4Mpx

This camera has a resolution of 2Megapixel 1080P FULL-HD .

2MP 1080p progressive scan CMOS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode
With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Ottica varifocale motorizzata This camera features 2.7-13.5mm varifocal lens with Motorized Zoom

Video Example:


Illuminatore IR fino a 80mt

Infrared illuminator with 4 LEDs and maximum approximate range of 100Mt

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

Ingressi e Uscite Allarme This camera is equipped with 1 ALARM INPUT + 1 OUTPUT
Ingresso Audio

This camera features 1 RCA AUDIO INPUT

Allows you to adapt the lens to Night/Day vision

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
The greater the value in dB, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very high levels of contrast.
Immagine esempio funzione WDR 120db
Ottica Auto IRis

This camera features Auto-Iris optics

Optics of this type are able to automatically change their aperture taking into account factors such as brightness.
In fact, it narrows in the presence of a lot of light and widens in the dark.

BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism

Materiale con cui è stato creato il dispositivo This camera was made of Metal.
24VAC Alimentazione Power supply NOT included.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.



Downloads

Download the English brochure
Schema con le dimensioni della telecamera Dahua HAC-HFW3231E-ZH
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
