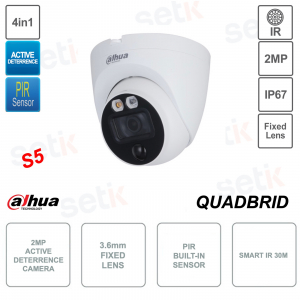

4in1 2MP Camera - Active Deterrence - PIR - 3.6mm - S5 Version

4in1 2MP Camera - Active Deterrence - PIR - 3.6mm - S5 Version
-57%

Dahua camera - 2MP 1080p resolution - For outdoor use - HAC-ME1200EQ-LS-S5 - S5 version - 4in1: CVI CVBS AHD TVI switchable - IP67 protection for outdoor use - Active deterrence with flash and siren - Integrated PIR motion sensor (up to 10m ) - 3.6mm fixed lens - CMOS 2MP - DWDR - HLC - BLC - Smart IR 30m - AWB - AGC - Mirror Mode - Privacy Masking - In plastic and metal.



Reference: HAC-ME1200EQ-LS-S5

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DAHUA CAMERA - 4IN1 2MP - 3.6MM LENS - ACTIVE DETERRENCE - PIR 10M - SMART IR 30M - DAHUA - HAC-ME1200EQ-LS-S5 - S5 VERSION

Made by Dahua

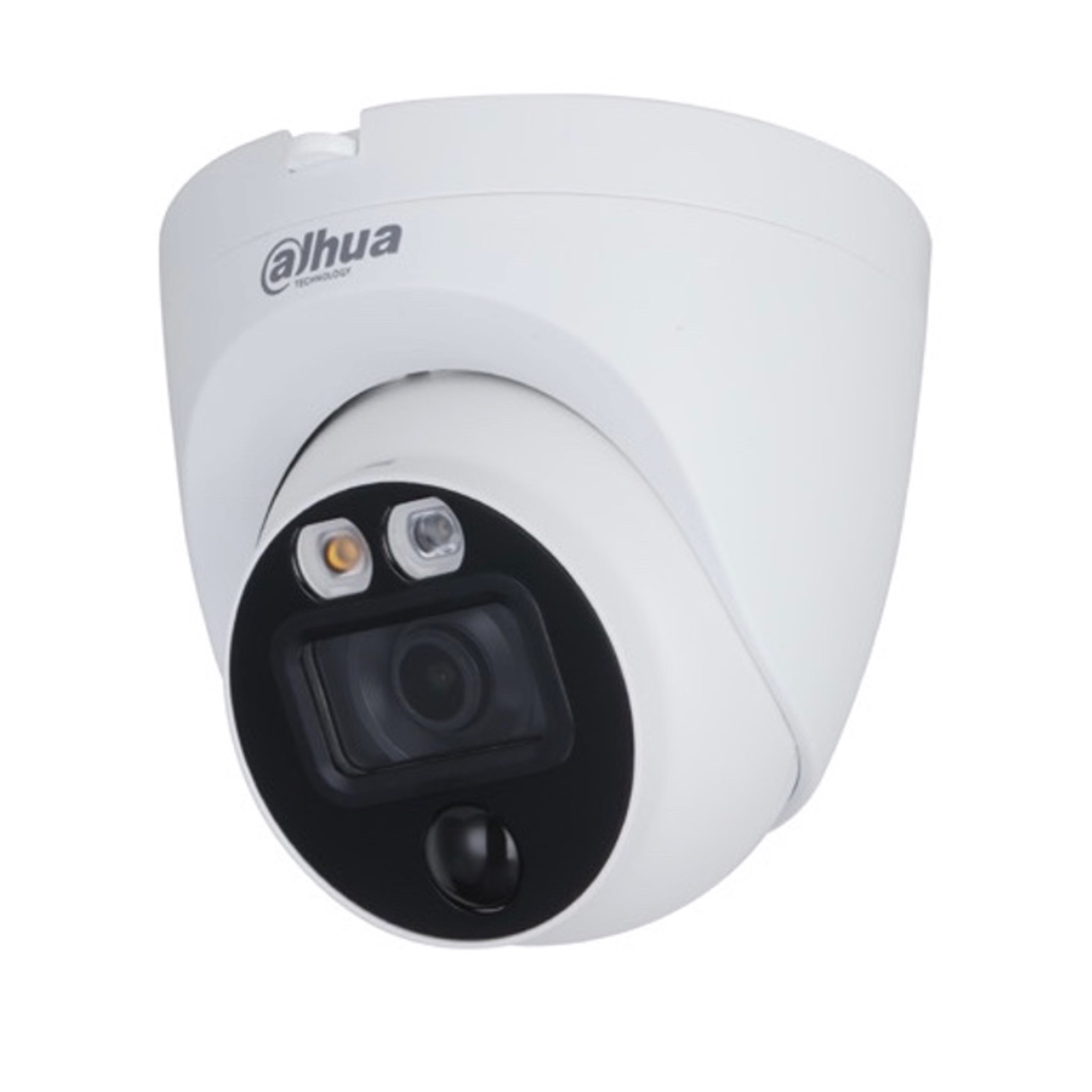

Dahua HDCVI outdoor camera - 4in1 - HAC-ME1200EQ-LS-S5
S5 version - 2MP 1080p resolution - 3.6mm fixed lens - 2MP CMOS - 4in1 CVI/TVI/AHD/CVBS video output
Smart IR illuminator 30m - Active deterrence with flash and siren - Integrated PIR motion sensor up to 10m - Day/Night(ICR) - 2D DNR, BLC, HLC, DWDR, AGC, AWB - IP67 protection from outdoors - Made of metal and plastic - DC12V±30% power supply.

Product details

- HD cvi outdoor camera - Dahua - HAC-ME1200EQ-LS-S5
- S5 version
- Resolution: 2MP Full HD
- 2MP 1080p progressive scan CMOS image sensor
- 3.6mm fixed lens
- Functions: 2D DNR, BLC, HLC, DWDR, AGC, AWB, Mirror Mode, Privacy Masking
- Active deterrence: Intermittent flash lights and siren
- Integrated PIR motion detector with range up to 10m
- Quality Smart IR lighting with a maximum range of 30m meters.
- 1 BNC 4in1 CVI/TVI/AHD/CVBS Video Output switchable via DIP Switch
- 12V DC power supply (not included)
- IP67 protection (dust / immersion)

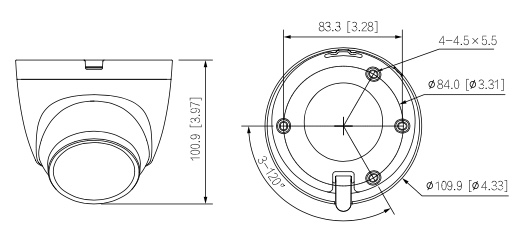

- Dimensions: Φ109.9mm × 100.9mm
- Supported operating temperature: –40 °C to +60 °C
- Item net weight: 0.30 kg
- 24 months warranty

Data sheet

HAC-ME1200EQ-LS-S5

Room

Image Sensor

2MP CMOS

Max.Resolution

1920(H)×1080(V)

Pixels

2MP

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/25s–1/100,000s
NTSC: 1/30s–1/100,000s

Min Illumination

0.02 Lux/F2.0, 30 IRE, 0 Lux IR on

S/N Ratio

> 65dB

Illumination Distance

30m (98.4ft)

Illuminator On/Off Control

Car

Illuminator Number

1 (IR light)

Pan/Tilt/Rotation Range

0.47 Kg (1.04 lb

Further details

Tecnologia Quadribrida

This camera is a FOUR HYBRID (4 Integrated Technologies)
These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .

Tecnologia AHDTecnologia HDCVITecnologia HDTVI

Switch Technologies:

The camera can switch from HDCVI to HDTVI, AHD or Analog via dip switch on the BNC port.

PIR sensor

PIR sensor

This camera integrates a PIR sensor.

Maximum range : 10m
Detection angle : 110°
Suggested mounting height: 2.2m-3m.

Active deterrence This camera is equipped with Active Deterrence function, with intermittent light flash and audio signal (siren)

Siren volume and light frequency are adjustable according to user preferences.
2MP 1080P resolution

2MP resolution, 1920x1080p progressive scan Full HD.

2MP CMOS sensor.

This camera features a 3.6mm fixed lens
Illuminatore IR fino a 30mt

Infrared illuminator with approximate maximum range of 30m

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

Tecnologia Smart IR

ICR extension The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations


Click to enlarge

Funzione DWDR

D-WDR (Digital Wide Dynamic Range) is the Software solution of the more powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of the WDR technology emulation, however extremely useful in circumstances of strong contrast.

Esempio funzione Digital Wide Dynamic Range
Protezione IP67 contro polveri e immersioni Protection level IP67 ( Dust / Immersion )

12VDC_Supply 12VDC power supply not included
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
