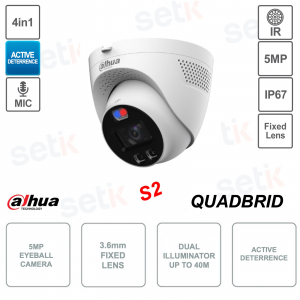

5MP Eyeball Camera - 4in1 - Active Deterrence - 3.6mm Lens - Microphone - S2

-57%

Dahua Eyeball outdoor camera - HAC-ME1509TQ-A-PV-S2 - S2 version - 4in1 CVI / CVBS / AHD / TVI switchable - 3.6mm fixed lens - 5MP CMOS - Double IR 40m illumination and 40m warm light - Day / Night (ICR) - WDR 120dB - 3DNR - BLC - HLC - AWB - AGC - Electronic defog - IP67 protection for outdoor use - Audio: 1in(microphone)/1out - Alarm output - Made of plastic and metal.

Reference: HAC-ME1509TQ-A-PV-S2

Brand: Dahua

EAN: 6923172541031

FIND INSTALLER

https://www.setik.biz/en/cameras/8336-dahua-hac-me1509tq-a-pv-s2-5mp-eyeball-camera-4in1-active-deterrence-36mm-lens-microphone-s2.html

€99.15

€230.58 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

OFFICIAL AJAX DISTRIBUTORS! ×

BUY AJAX!
Free shipping >€49
SPED-AJAX-E

Description Product Details Data Sheet Further Details Download

DAHUA EYEBALL CAMERA - ACTIVE DETERRENCE - 4IN1 5MEGAPIXEL 3.6MM SMART IR 40MT DAHUA - HAC-ME1509TQ-A-PV-S2

Dahua Eyeball 4in1 outdoor camera - HAC-ME1509TQ-A-PV-S2
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable on BNC port
S2 version - 5MP resolution - 3.6mm fixed lens - CMOS 5MP 2880x1620p - Smart IR LED 40MT - Warm light illuminator 40m - 3D-NDR, BLC, HLC, WDR 120dB, Day/Night(ICR), AWB, AGC, Electronic Defog , Mirror Mode, Privacy Masking - Microphone - Audio output - 1x alarm output - Active deterrence with siren and flashing lights - IP67 protection for outdoor use - Made of metal and plastic.

Product details

Telecamera Dome con 4 tecnologie in 1, risoluzione 5MP e ottica fissa 3.6mm. IR LED 30MT

4in1 outdoor Eyeball camera - Dahua - HAC-ME1509TQ-A-PV-S2
S2 version
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
Resolution: 5 Megapixels 2880x1620
5MP progressive scan CMOS sensor 2688x1620p
Active deterrence with siren and red and blue lights
3.6mm fixed lens
Functions: BLC, HLC, WDR120dB, 3D-DNR, Mirror Mode, Privacy Masking, Electronic Defog
Double illuminator: Smart IR LED 40MT and warm light 40m
1 BNC 4in1 CVI/TVI/AHD/CVB Video Output
1 alarm output
Integrated microphone
1 audio out
12V DC power supply not included
Suitable for indoor and outdoor environments
IP67 protection (dust / immersion)
Material: metal and plastic
Dimensions: Φ109.9mm × 100.9mm
Net weight: 0.35kg
Operating temperature: –40 °C to +60 °C
24 months warranty

Data sheet

HAC-ME1509TQ-A-PV-S2

Room

Pixels

5MP

Image Sensor

5MP CMOS

Max.Resolution

2880(H)×1620(V)

Scanning System

Progressives

Electronic Shutter Speed

PAL: 1/3s–1/100000s
NTSC: 1/4s–1/100000s

Min Illumination

0.001 lux@F1.0 (Color, 30IRE)
0.0001 lux@F1.0 (B/W, 30IRE)
0 lux (Illuminator on)

S/N Ratio

>65dB

Illumination Distance

IR: 40m (131.23ft)
Warm light: 40m (131.23ft)

Illuminator On/Off Control

Car; manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Product Dimensions

Φ109.9mm × 100.9mm (Φ4.33" × 3.97")

Packaging Dimensions

148mm ×139mm ×137mm(5.83" × 5.47" × 5.39")

Net Weight

0.35kg (0.77lb)

Gross Weight

0.53kg (1.17lbs)

Installation

wall mount; ceiling mount; vertical pole mount

Further details

	This camera is a FOUR HYBRID (4 Integrated Technologies) These cameras are at the same time Analog , Ahd , Hdcvi and Hdtvi .
	5MP resolution, means 12 times the resolution of a common D1 camera : It guarantees adequate resolutions for any need. Image sensor 5MP progressive scan CMOS 2880x1620p
	3.6mm fixed lens!
	Infrared illuminator with approximate maximum range of 40Mt Warm light illuminator with approximate range up to 4om. This camera is also equipped with SMART IR technology. Through this technology , the light emitted by the LEDs is adapted according to the object framed.
	Digital WDR (Wide Dynamic Range ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
	3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.
	Active deterrence: Alert intruders with built-in red and blue light + siren
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations Click to enlarge
	HLC (High Light Compensation) allows greater light management, in the presence of direct light (cars, torches, etc...). It also prevents attempts to blur the image.
	Equipped with integrated microphone and 1x audio output!
	Equipped with 1 alarm output.
	Protection level IP67 ( Dust / Immersion )
	12VDC power supply not included
	This product is covered by a 24 month guarantee.
