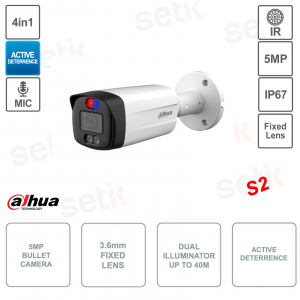

Dahua Outdoor Bullet Camera - HAC-ME1509TH-A-PV-S2 - S2 Version - 4in1 CVI / CVBS / AHD / TVI switchable - 3.6mm fixed lens - 5MP CMOS - Double IR 40m illumination and 40m warm light - Day / Night (ICR) - WDR 120dB - 3DNR - BLC - HLC - AWB - AGC - Electronic defog - IP67 protection for outdoor use - Audio: 1in(microphone)/1out - Alarm output - In plastic and metal.
FIND INSTALLER
€105.55
€251.32 -58%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA BULLET CAMERA - ACTIVE DETERRENCE - 4IN1 5MEGAPIXEL 3.6MM SMART IR 40MT DAHUA - HAC-ME1509TH-A-PV-S2
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable on BNC port
S2 version - 5Megapixel resolution - 3.6mm lens - 5MP CMOS - Smart IR LED 40MT - 40m warm light illuminator - 3D-NDR, BLC, HLC, WDR 120dB, Day/Night(ICR), AWB, AGC, Electronic Defog, Mirror Mode, Privacy Masking - Microphone - Audio output - 1x alarm output - Active deterrence with siren and flashing lights - IP67 protection for outdoor use - Made of metal and plastic.
Product details
- 4in1 Outdoor Bullet Camera - Dahua - HAC-ME1509TH-A-PV-S2
- S2 version
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG
- Resolution: 5 Megapixels 2880x1620
- 5MP progressive scan CMOS sensor 2688x1620p
- Active deterrence with siren and red and blue lights
- 3.6mm fixed lens
- Functions: BLC, HLC, WDR120dB, 3D-DNR, Mirror Mode, Privacy Masking, Electronic Defog
- Double illuminator: Smart IR LED 40MT and warm light 40m
- 1 BNC 4in1 CVI/TVI/AHD/CVB Video Output
- 1 alarm output
- Integrated microphone
- 1 audio out
- 12V DC power supply not included
- Suitable for indoor and outdoor environments
- IP67 protection (dust / immersion)
- Material: metal and plastic
- Dimensions: 240.7mm × Φ90.7mm
- Net weight: 0.48kg
- Operating temperature: –40 °C to +60 °C
- 24 months warranty
Data sheet
| HAC-ME1509TH-A-PV-S2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pixels |
5MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
5MP CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
2880(H)×1620(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
PAL: 1/3s–1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
0.001 lux@F1.0 (Color, 30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
>65dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illumination Distance |
IR: 40m (131.23ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator On/Off Control |
Car; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Illuminator Number |
2 (IR light) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2 (Warm light) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Pan/Tilt/Rotation Range |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
240.7mm × Φ90.7mm (9.48" × Φ3.57") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
299mm × 119mm × 111mm (11.77" × 4.69" × 4.37") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.48kg (1.06lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.74kg (1.63lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
wall mount; ceiling mount; vertical pole mount |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 |
5MP resolution, means 12 times the resolution of a common D1 camera : Image sensor 5MP progressive scan CMOS 2688x1620p |
 |
3.6mm fixed lens |
|
|
OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD Menu is multi-language Multi-Tech: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) |
 |
Infrared illuminator with approximate maximum range of 40Mt Warm light illuminator with approximate range up to 4om. |
 |
Digital WDR (Wide Dynamic Range
ULTRA WDR up to 120dB |
 |
3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and moving images, currently the most powerful solution for obtaining maximum results in low light.  |
 |
Active deterrence: Alert intruders with built-in red and blue light + siren |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters out typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
BLC (Back Light Compensation) is one of the 3 possible Steps in the management of images with Contrast, typical situations are (Entry or exit from car parks, Plates, Special lights, Entrances with shots from inside out, etc.) the compensation of light is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations |
 |
Protection level IP67 ( Dust / Immersion ) |
 |
12VDC power supply not included  |
 |
This product is covered by a 24 month guarantee. |
