IPC-PFW5849-A180-E2-ASTE - Dahua - IP POE ONVIF Panoramic Camera 2x4MP - Double 3.6mm fixed lens - Double CMOS 4MP 1 / 1.8 " - Triple Stream - Codec H.265+ - ePoE - BLC - HLC - WDR 140db - SSA - AGC - 3DNR - Defog - ROI - Artificial Intelligence : Perimeter Protection, Heat Map, Smart Object Detection, People Counting - Microphone - Audio - Alarm - Event Alarm - 512GB MicroSD slot (not included) - IP67 outdoor protection - Plastic and metal.
FIND INSTALLER
€503.69
€1,199.26 -58%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

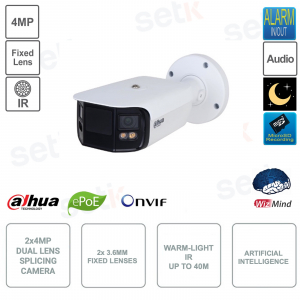

PANORAMIC IP BULLET CAMERA 2x4MP MULTI-LENS AND MULTI-SENSOR - 3.6MM LENS - DUAL CMOS - ARTIFICIAL INTELLIGENCE - AUDIO/ALARM - DAHUA - IPC-PFW5849-A180-E2-ASTE
Resolution 2x4MP Dual Splicing Lens - Dual 3.6mm fixed lens - Dual CMOS 4MP 1/1.8" - Triple Stream Video - Smart Codec H.265+ - ePoE - Functions : BLC - HLC - WDR 140db - SSA - AGC - 3DNR - Defog - ROI (4 areas) - Artificial Intelligence : Perimeter Protection, Heat Map, Smart Object Detection, People Counting - Microphone - Audio 1in/1out RCA - Alarm 1in/1out - Event Alarm - 512GB MicroSD slot (not included) - Ideal IP67 protection for outdoor use - RJ45 100M - Made of plastic and metal - Power supply: 12 VDC (±30%)/PoE+ (802.3at)/ePoE
Product details
- Outdoor IP camera PoE ONVIF® Panoramic 180° - Dahua - IPC-PFW5849-A180-E2-ASTE
- Resolution 8Megapixel 8MP 4x2MP
- Fixed Multi Lens 3.6mm
- Multi Sensor : 2x4MP 1/1.8" CMOS sensor with Starrlight technology
- Starlight technology, allows for 24/7 color vision
- Video Compression up to Smart H.265+
- Day/Night(ICR), BLC / HLC / 3D DNR / Defog / Privacy Mask / SSA / ROI on 4 areas
- WDR 140dB
- Motion Detection, Region Of Interest (ROI)
- Illuminator up to 40m with 4 warm light illuminators
- ARTIFICIAL INTELLIGENCE: Perimeter Protection, Heat Map, Smart Object Detection, People Counting
- Audio: 1 input + 1 RCA output
- Alarm: 1 inputs + 1 outputs
- Event alarm
- MicroSD slot (Max 512GB - not included)
- IP67 Protection for Outdoor (Dust / Immersion)
- PoE+ protocol (802.3at)
- 12V DC power adapter (not included)
- Suitable for critical temperatures (-40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH ) with 95% humidity
- Dimensions: 301.2mm × 128.2mm × 120.1mm
- Weight: 1420g
- Material: Plastic + Metal
- 24 months warranty
Data sheet
| IPC-PFW5849-A180-E2-ASTE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Image Sensor |
Dual 1/1.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Max.Resolution |
4096(H)×1800(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ROM |
128MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RAM |
1GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Scanning System |
Progressives |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Electronic Shutter Speed |
Auto/Manual 1/3s–1/100,000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Min Illumination |
0.0005 lux@F1.0 (Color, 30IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
S/N Ratio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Yes
Audio compression
G.711a; G.711Mu; PCM; G.726; G.723
alarm
Alarm Event
No SD cards; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people-gathering; parking detection; scenes changing; audio detection; voltage detection; external alarm; SMDs; people counting in the area; stay detection; people counting; security exception
Network
Network Port
RJ-45 (10/100Base-T)
SDKs and APIs
Yes
Cyber Security
video encryption; Firmware encryption; configuration encryption; digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and import of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
NetworkProtocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; smtp; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability
ONVIF® (Profile S/Profile G/Profile T); CGI; Milestone
User/Host
20 (Total bandwidth: 80M)
Storage
FTP; SFTP; Micro SD card (support max. 512GB); NOS
Browsers
IE: IE 8 and later
Chrome
firefox
management software
Smart PSS; DSS; DMSS extension
Mobile Clients
iOS; android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio inputs
1 channel (RCA port)
Audio Outputs
1 channel (RCA port)
Alarm Inputs
1 channels in: 5mA 3V–5VDC
Alarm Output
1 channel out: 300mA 12VDC
Power
Power Supply
12VDC (±30%)/PoE+ (802.3at)/ePoE
power consumption
Basic: 4.8W (12VDC); 5.5W (PoE)
Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8W (PoE)
environment
Operating Temperature
–40°C to +60°C (–40°F to +140°F)
Operating Humidity
≤95%
Storage Temperatures
–40°C to +60°C (–40°F to +140°F)
Protection
IP67
structure
Casing
Metal + plastic
Product Dimensions
301.2mm × 128.2mm × 120.1mm (11.86" × 5.05" × 4.73") (L × W × H)
Net Weight
1420g (3.13lb)
Gross Weight
1570g (3.46lb)
Further details
 |
Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems This camera supports the ONVIF® standard |
 |
The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation PoE+ (802.3at)/ePoE Supported. |
 |
This camera features a resolution of 2x4MP! 8MP total resolution. |
 |
Multi-Lens Technology! |
 |
Multi-Sensor Technology! This camera is equipped with 2x 1/1.8" CMOS sensors with Starlight technology |
|
|
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
Illuminator 4 warm light illuminators and approximate maximum range of 40m |
 |
This camera also features advanced intelligent features: Perimeter Protection,
|
|
|
1 Input + 1 RCA Audio Output |
 |
This camera has 1 alarm inputs + 1 alarm outputs |
 |
This camera is equipped with ROI function. The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras. The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.  |
 |
Automatic Gain Control, with the possibility of autonomously adjusting the sensitivity in particular conditions of use  |
 |
BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations  |
 |
3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light. |
 |
DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
Protection level IP67 ( Dust / Immersion ) |
 |
Possibility to insert Micro SD up to a maximum of 512GB - not included |
 |
A 12 VDC (±30%) power supply is required for camera operation It supports PoE+ (802.3at)/ePoE power supply |
 |
This product is covered by a 24 month guarantee. |
