Panoramic camera + PTZ - IP ONVIF® - Panoramic lens 4mm - Detail 4.8 mm–115 mm - Artificial intelligence

Panoramic camera + PTZ - IP ONVIF® - Panoramic lens 4mm - Detail 4.8 mm–115 mm - Artificial intelligence
-60%

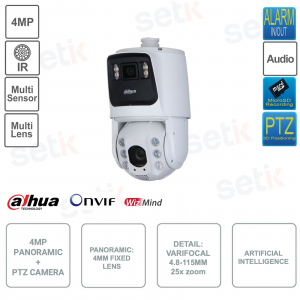

SDT7C424-4F-ZBZJ-APV-0400 - Dahua - Panoramic camera + PTZ - Double lens and double CMOS - Panoramic 4mm - Detail 4.8-115mm 24x zoom - Panoramic CMOS sensor 1/1.8 "4MP - Detail CMOS 1/2.8" - 4Mp Resolution - Triple Stream Video - Smart H.265+ Codec - Smart IR 150m - Smart Tracking - PFA+ - PTZ - Artificial Intelligence : Face Detection, Perimeter Protection and Auto-Tracking - BLC - HLC - WDR - AWB - AGC - ROI - 3DNR - Motion Detection - RJ45 100M - 128GB MicroSD slot (not included) - Two-way audio - Audio - Alarm - Sound and light alarm - Made of plastic and aluminum alloy - IP66 and TVS6kV protection - Ideal for outdoor use.



Reference: SDT7C424-4F-ZBZJ-APV-0400

Brand: Dahua

FIND INSTALLER

€1,401.05

€3,502.62 -60%
taxes included
Tax included
 Available in 5 days
 starting

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


WIZMIND PANORAMIC CAMERA + PTZ MULTI-SENSOR 4MP - AUDIO / ALARM - IVS DAHUA

Prodotto Dahua
Panoramic Camera + PTZ - Double sensor and double lens - Artificial Intelligence - Dahua - SDT7C424-4F-ZBZJ-APV-0400 - Dahua
Camera with double lens and double CMOS - 4mm panoramic lens - 4.8-115mm detail lens 24x zoom - 1/1.8" 4MP panoramic CMOS sensor - 1/2.8" detail CMOS sensor - 4MP resolution - Triple Stream - H.265+ - Smart IR up to 150m - Smart Tracking - PFA+ - PTZ - Artificial Intelligence : Face Detection, Perimeter Protection and Auto-Tracking - BLC - HLC - WDR - AWB - AGC - ROI - 3DNR - Motion Detection - Defog - RJ45 100M - MicroSD 128GB slot (not included) - Two-way audio - Audio - Alarm - Sound and light alarm - Made of plastic and aluminum alloy - IP66 and TVS6kV protection - Ideal for outdoor use.

Product details

Telecamera multi-sensore panoramica+ptz Dahua-Stalight-4MP
  • Overview + ONVIF® Multi-Sensor PTZ - Dahua - SDT7C424-4F-ZBZJ-APV-0400
  • 4Megapixel 2560x1440p progressive scan resolution
  • Optics: Panoramic 4mm - PTZ 4.8-115mm 24 x optical zoom (and 16x digital zoom)
  • Multi Sensor : 1/1.8" 4MP Panoramic CMOS Sensor and 1/2.8" 4MP Progressive Scan PTZ CMOS Sensor
  • PFA+ technology
  • Starlight+ technology
  • Smart H.265+/H.264+
  • Day/Night(ICR), 3D NR, AWB, AGC, BLC, ROI, Motion Detection, Defog, Flip 180°
  • IR LED illuminator 150m
  • White light illuminator 30m
  • Artificial intelligence: Face detection, perimeter protection, Auto tracking
  • Audio: 1in/1out
  • Two-way audio
  • Alarm: 2in/1out
  • Sound and light alarm
  • RJ45 100M Ethernet LAN interface
  • MicroSD slot (Max 128GB - not included)
  • Power Supply 36 VDC/2.23 A ± 25% (Included)
  • Material: Product made of plastic and aluminum alloy
  • Dimensions 358mm × Φ202mm
  • Protection: IP67 outdoor, TVS6000 against lightning
  • Operating temperature: –40°C to +65°C
  • Net weight of the item: 5.6 kg
  • 24 months warranty

Data sheet

SDT7C424-4F-ZBZJ-APV-0400

Room

Image Sensor

Panoramic: 1/1.8" CMOS

Detail: 1/2.8" CMOS

Pixels

Panoramic: 4MP

Detail: 4MP

Max.Resolution

Panoramic: 2560(H)×1440(V)

Detail: 2560(H)×1440(V)

ROM

Overview: 4GB

Detail: 256MB

RAM

Panoramic: 1GB

Detail: 1GB

Electronic Shutter Speed

Panoramic: 1/1s–1/30,000s

Detail: 1/1s–1/30,000s

structure

Casing

Plastic + aluminum alloy

Product Dimensions

358mm × Φ202mm (14.09" × 7.95")

Packaging Dimensions

510.0 mm × 312.0 mm × 312.0 mm (21.42" × 7.70" × 6.75") (L × W × H)

Net Weight

5.6kg (12.35lbs)

Gross Weight

7.15kg (15.77lbs)

Further details

ONVIF®

Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports the ONVIF® standard

Risoluzione 4 megapixel

This camera has a resolution of 4 Megapixels!

1/2.8" STARVIS sensor with STARLIGHT technology.

Low brightness, color vision even in night mode

Logo Starvis

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixel

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Multi-Lens Technology!
This camera is equipped with multi-lens:

1x Detail: Varifocal lens 4.8-115mm 25x optical zoom
1x Overview: 4mm fixed

Multi-Sensor Technology!

This camera is equipped with 1 Panoramic CMOS sensor: 1/1.8" 4MP and 1 Detail sensor 1/2.8" 4MP

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

32X optical zoom

25x Optical Zoom (4.8 mm–115 mm) + 16x Digital Zoom.

Infrared Illuminator
  • Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180°
  • Manual Control Speed: Pan: 0.1°–160°/s Tilt: 0.1°–120°/s
  • Preset Speed: Pan: 240°/s; Tilt: 200°/s
  • Presets: 300
  • Tours: 8 (up to 32 presets per tour)
  • Patterns: 5
  • Scans: 5
  • Power-off Memory: Yes
  • Idle Motion: Preset, Tour, Scan, Track
  • PTZ Controls: DH–SD Pelco–P/D (auto recognition)
Illuminatore IR da 15mt

IR LED illuminator with range up to 150 meters!

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the object framed.

Tecnologia Smart IR

Advanced intelligent video analytics features

This camera features ARTIFICIAL INTELLIGENCE functions

- Face detection
- Perimeter protection
- Auto Tracking

Attraversamento linea Tripwire video analisi

Interfaccia audio

Two-way audio.

1 audio input and 1 audio output -

Questa telecamera presenta ingressi e uscite allarme This camera has 2 alarm inputs and 1 alarm output.
Funzione ROI This camera is equipped with ROI function.

The images deriving from IP cameras are "compressed", consequently the quality is set during the recording phase. Especially with cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a larger number of days or cameras.
The ROI allows you to define areas where you can set higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
ICR extension

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Icon Function Automatic Gain Control Automatic Gain Control, with the possibility of autonomously adjusting the sensitivity in particular conditions of use
Example Automatic Gain Control function

BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from car parks, license plates, special lights, entrances with shots from inside to outside, etc. The light compensation is one of the most complex possible operations, the BLC function allows a discreet adaptation to these situations

3D-DNR 3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.
MicroSD recording

Possibility to insert Micro SD up to a maximum of 128GB - not included

IP67 protection against dust and immersion IP67 from dust and splashes, ideal solution for use in video surveillance systems set up in outdoor environments.
12VDC_Supply 36VDC/2.23A ± 25% (inclusive)
Italian Guarantee icon This product is covered by a 24 month guarantee.
