Dahua PTZ Camera WizSense 4MP 1440P PoE+ Onvif Foclae 4.8-154mm IR150 IP67 IK10 Artificial Intelligence

Dahua PTZ Camera WizSense 4MP 1440P PoE+ Onvif Foclae 4.8-154mm IR150 IP67 IK10 Artificial Intelligence
-57%

Dahua SD5A432GB-HNR AI Series Outdoor PoE+ ONVIF camera with 4Megapixel resolution, varifocal motorized lens with 32x optical zoom (4.8-154mm), 1/2.8" CMOS sensor Starlight Technology, IR up to 150m, H.265+, Triple Stream, Day/Night(ICR), AWB,AGC,BLC,HLC 2D / 3D-NR, Electronic Defog, EIS, WDR 120dB, Autotracking, Artificial Intelligence , RS485, Audio 1in/1out - Alarm 2in/1out, MicroSD Slot 512GB - Protection IP67, IK10, TVS6000.



Reference: SD5A432GB-HNR

Brand: Dahua

EAN: 6923172540867

FIND INSTALLER

€1,096.41

€2,549.80 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


STARLIGHT PTZ CAMERA - 4MP - ONVIF® - POE - VIDEO ANALYSIS AND ARTIFICIAL INTELLIGENCE - ZOOM 32x 4.8-154MM - AUDIO - ALARM - DAHUA

Made by Setik

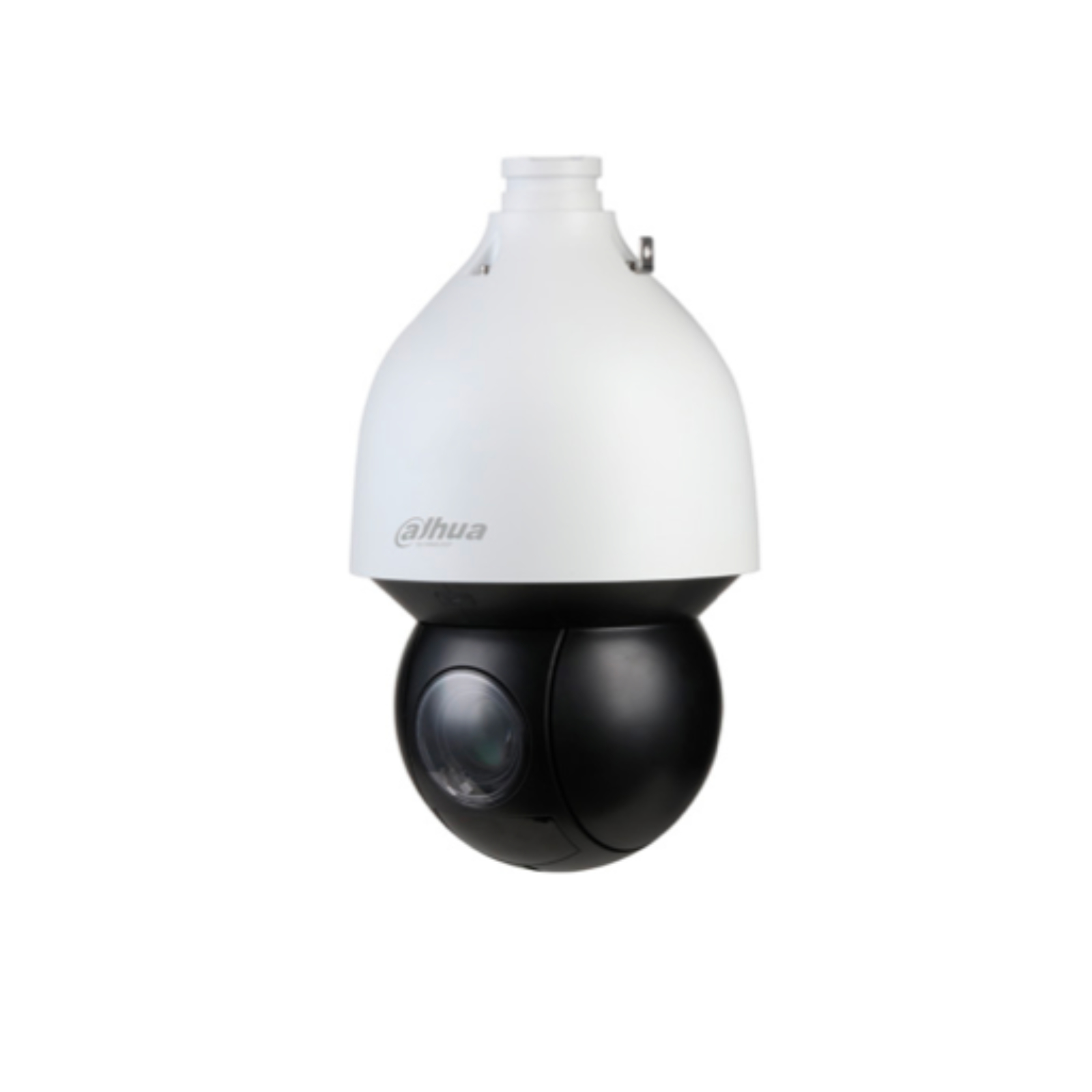

Dahua PoE+ ONVIF® PTZ Starlight 4MP camera - SD5A432GB-HNR
4MP resolution - 4.8-154mm lens ( 32x zoom) - 1/2.8" CMOS sensor with Starlight technology - Smart H.265+ - Triple Stream - IR illuminator up to 150m with 4 LEDs
Day/Night(ICR), AWB,AGC,BLC,HLC 2D / 3D-NR, Electronic Defog, EIS, WDR (120db)
Artificial intelligence : Tripwire, intrusion, lost and abandoned objects, capture images of vehicles and people - Auto Tracking - 1in/1out audio - 2in/1out alarm - 512GB Micro SD Card slot (not included) - IP67, IK10 and TVS6000 - 24 months warranty of the manufacturer.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

  • External ONVIF® AI Camera - SD5A432XB-HNR
  • 4Megapixel resolution
  • 4.8-154mm motorized varifocal lens (32x optical zoom)
  • 1/2.8" CMOS sensor with Starlight Technology
  • Starlight technology: Color night vision!
  • Video Compression up to H.265+ Smart Codec
  • Triple Stream
  • Day/Night(ICR), AWB,AGC,BLC,HLC 2D / 3D-NR, Electronic Defog, EIS, WDR (120db) , 16x digital zoom
  • Motion/Tampering Detection
  • Quality illuminator up to 150m 4 LEDs.
  • Artificial Intelligence: Perimeter Protection (tripwire, intrusion) - AutoTracking - Smart Capture of People and Vehicles, Lost and Abandoned Objects
  • 2 inputs and 1 alarm output
  • 1 audio input and 1 audio output
  • 1 microSD-Card slot (Max 512GB not included)
  • 1 RS485 port
  • RJ45 10/100 Base-T LAN Ethernet network interface
  • IP67 / IK10 / TVS6000 protection
  • Dimension: 331.9 mm × Φ190.4 mm (13.07" × Φ7.50")
  • Weight: 4.7kg (10.36lbs)
  • 24 months warranty

Data sheet

SD5A432GB-HNR

Room

Image Sensor

1/2.8" CMOS

Pixels

4MP

structure

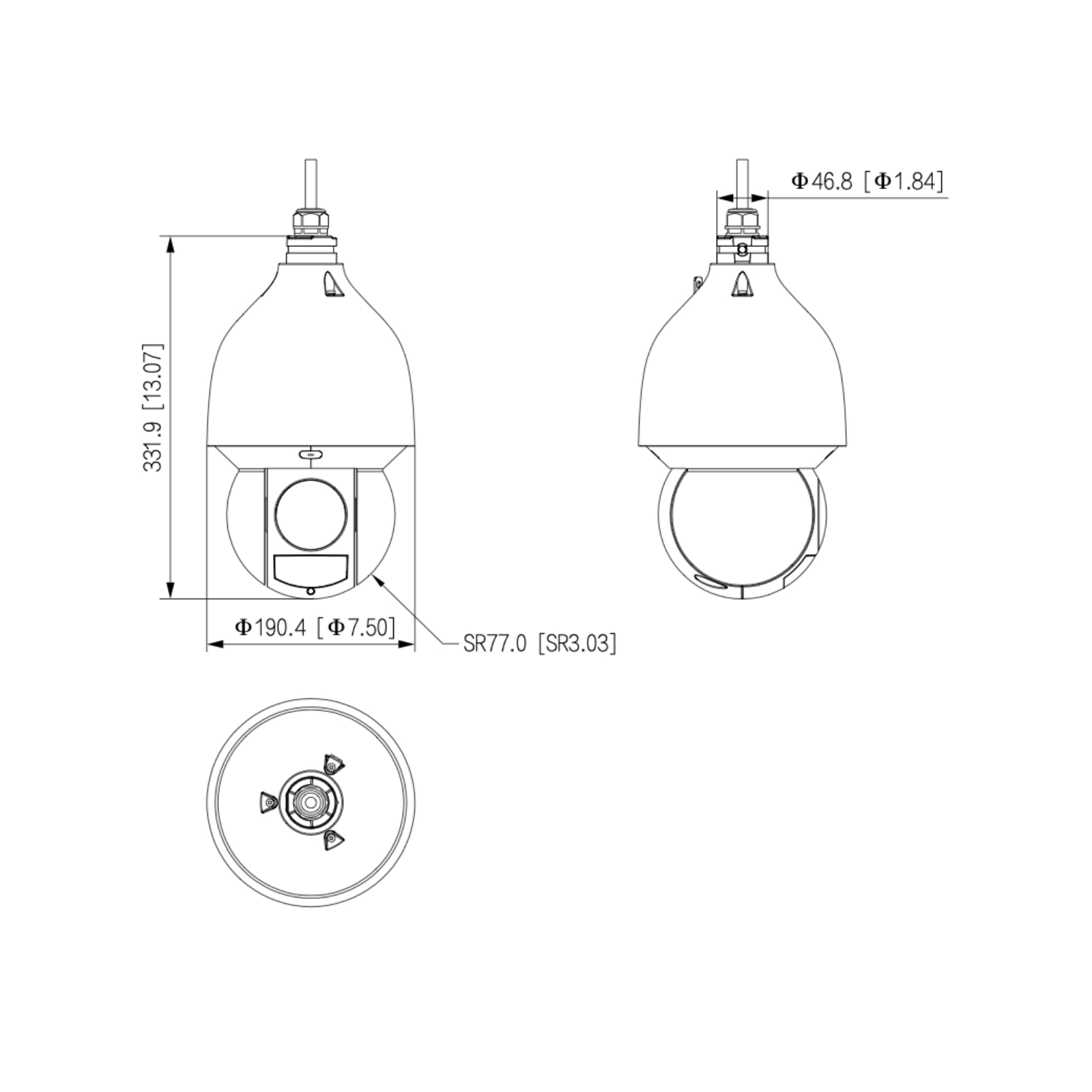

Product Dimensions

332mm × Φ190mm (13.07" × Φ7.48")

Net Weight

4.7kg (10.36lbs)

Gross Weight

8kg (17.64lbs)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera is ONVIF® compatible

Alimentazione PoE

The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This camera has the PoE+ 802.3at protocol

AI | Artificial intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection: Intrusion, Line crossing

- Abandoned items

- Parking detection

- Gathering detection

- Detection of motorized and non motorized people and vehicles

- Autotracking: The system will identify the objects moving in a specific video surveillance area and will automatically enlarge it for a better view of the tracked object.

Questa telecamera ha una risoluzione 4Mpx 2560x1440 This camera has a resolution of 4Megapixel

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+


1/2.8" CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode

With this CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

Esempio di visione notturna in presenza di sensore con tecnologia starlight

32X optical zoom 32x Optical Zoom (4.8mm~154mm) + 16x Digital Zoom
Main stream: 4M/3M/2M/1.3M/720p (1-25/30fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 2M/1.3M/720p (1–25/30 fps)
IR LED illuminator

IR LED illuminator with maximum range up to 150 meters!

This camera also features VIDEO ANALYSIS / SMART DETECTION functions:
- Recognition of lost, abandoned objects

Infrared IlluminatorGeneric PTZ Functions:
Pan/Tilt Range: Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°
Manual Control Speed: Pan: 0.1°–300°/s Tilt: 0.1°–200°/s???????
Preset Speed: Pan: 400°/s; Tilt: 300°/s
Presets: 300
PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour), Auto Pan, 5 Auto Scan
Speed Setup: Human-oriented focal Length/ speed adaptation
Power off memory: Yes
Idle Motion: Presets; Patterns; Tours; Scan
Full HDIt is extremely useful to have Inputs/Outputs in a CCTV system to be able to command relays or activate a recording following an event
This camera has 2 inputs and 1 output
Ingresso Audio This camera features 1 Audio input + 1 Audio Output
Dual encoding RS 485 for PTZ commands (remotely controllable cameras)
Icon Day/Night function Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Example Day/Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA 2D / 3D-DNR
3D-NR is the most advanced version of NOISE REDUCTION management. Allows still images in low light and moving images. It is currently the most powerful solution for obtaining maximum results in the presence of little light.
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light/shadow contrast. Fundamental in case of shooting from inside to outside, plates, shadowed points or all situations where there is no homogeneity of light.
Icon Function DEFOG This function allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog
DEFOG function example image
DEFOG function example image
Funzione EIS This camera features the EIS function.

The EIS (image stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where the weather conditions can make the image unstable
Ultra Smart Funzione Stabilizzazione EIS
Messa a fuoco automatica

This camera has automatic or manual focus

MicroSD recording

Possibility to insert Micro SD up to a maximum of 512GB (not included)

Dual encoding This product is covered by a 24 month guarantee.

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
